IR and RS-232 Control - EU

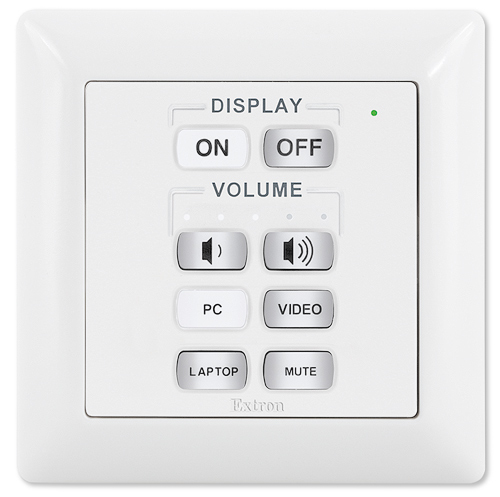

The MLC 62 RS EU is an easy-to-use keypad controller for use in classrooms and meeting facilities. It mounts in a one-gang EU junction box or enclosure and offers eight backlit soft touch buttons for a contemporary look and feel. The MLC 62 RS EU provides control capabilities for common AV functions including power, input switching, and volume control. The MLC 62 RS EU provides RS-232 serial and IR ports for universal display control. In addition, a digital input and two relays are included for monitoring and controlling other devices in the room.
Consistent Control in Every Room
The MLC 62 RS EU acts as an extended remote control panel, providing user-friendly control for a display's power, volume, and input selection. Because the MLC 62 RS EU offers a central point of control for a display device's key functions, it eliminates the need for the display's IR remote control, making operations much more efficient. With the MLC 62 RS EU, there are no misplaced remotes to search for, no confusing menus to navigate, and no dead batteries. No matter what brand of display is installed in each presentation venue, the MLC 62 RS EU MediaLink Controller always provides a consistent control method from room to room. Presenters with little or no training can walk into any MediaLink equipped classroom and operate the AV system with minimal effort.
Two relays and a digital input provide provide advanced control of the AV system. The relays enable the control of lighting, screen settings, and other device functions, while a digital input provides monitoring control for a variety of devices such as sensors and switches.
Customizable Backlit Buttons
The controller incorporates eight soft touch, tactile buttons, including power on, power off, volume up, volume down, and source selections. Using the intuitive setup software provided, these buttons can be configured to send out any IR or RS-232 command supported by the display, making it easy to customize the controller to meet the needs of most single-display AV systems. Macro mode provides additional flexibility by allowing all of the stored commands associated with one button to be executed with a single button press. Toggle mode provides additional flexibility by allowing two different sets of commands to be executed with alternating presses of a button.
The source buttons offer a choice between a single or dual function setup by simply swapping out the bezel and buttons. The MLC 62 RS EU ships with both six-button and eight-button bezels. The eight-button bezel is ideal for applications that require up to four inputs or functions, while the six-button bezel is best for supporting two inputs or functions on larger buttons.
MLC 62 RS EU buttons are available in pre-packaged kits, or may be ordered individually. Ordering individual buttons is easy. The Extron Custom Button Builder is our online tool that enables convenient and simple customization of soft-touch, backlit buttons for a variety of Extron control products.
Easy to Configure
No programming knowledge is necessary to configure MLC 62 RS EU MediaLink Controllers. When used with the supplied Windows®-based configuration software, installation files can be saved and used to duplicate additional MLC 62 models. The files can also be archived for later use.
- Easy-to-use MLC 62 Series Configuration Program - Provides fast and simple setup via RS-232 or USB when combined with one of many ready-to-use IR or RS-232 device drivers available on the Extron Web site. The configuration program and MLC 62 RS EU also support IR Learning for creating new IR drivers from the handheld remote of a source or display device.
