25.4 cm (10 ") Tabletop TouchLink Pro Touchpanel - 10.1" TFT 1024 x 600 Touch, 512MB RAM, 512MB Flash, Ethernet

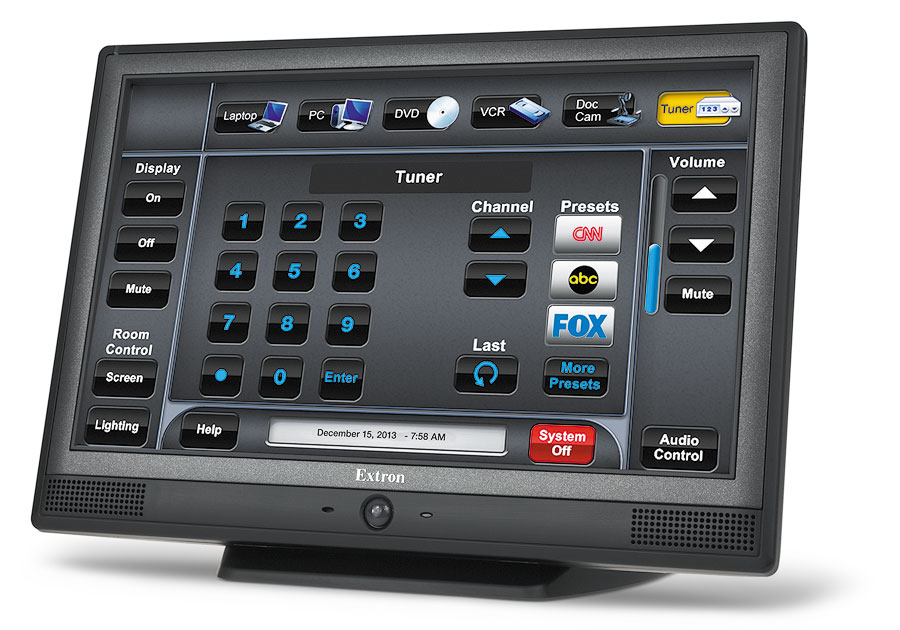

The Extron TLP Pro 1020T is a 10” tabletop touchpanel with a high resolution, LCD touchscreen. As with all TouchLink® Pro models, this new customizable touchpanel features faster processing and more memory. Power over Ethernet – PoE allows the touchpanel to receive power and communication over a single Ethernet cable. The TLP Pro 1020T features the same contemporary design as our legacy TouchLink touchpanels, allowing it to easily blend in with existing Extron technology in your facility. It is ideal for any AV application requiring a large, tabletop touchpanel with a fully customizable interface.
The TLP Pro 1020T works with any Extron IP Link® Pro control processor and is designed for use in AV system applications that require complete, interactive control of a broad range of source devices. TouchLink Pro touchpanels operate using standard network infrastructure and are easy to install with reliable and cost effective Ethernet cable. The TLP Pro 1020T can be removed from its base and mounted on any VESA standard mounting arm or bracket.
All TouchLink Pro touchpanels can be customized using Extron GUI Designer software. This powerful interface design software offers ready-to-use templates for a wide variety of rooms and presentation environments. These designs may be used as is, or customized for the application by simply changing individual graphic elements.
<b>Features</b>
- 10” LCD touchscreen with 1024x600 resolution and 18-bit color depth
- Faster processing and more memory — Allows for quicker configuration uploads and more storage for GUI pages.
- Compatible with all IP Link Pro control processors
- Power over Ethernet allows the touchpanel to receive power and communication over a single Ethernet cable, eliminating the need for a local power supply - PoE injector sold separately
- Built-in speakers with improved audio performance — Provides audible feedback from button presses.
- Light sensor adjusts screen brightness as the ambient room lighting changes
- Configurable red and green status lights indicate a room's availability or call status
- System connection status indicator provides visual feedback if the touchpanel is not communicating with a control processor
- Automatic clock synchronization allows touchpanel to display the accurate time and date
- Energy-saving features:
- Adjustable sleep timer puts touchpanel into sleep mode
- Motion detector wakes touchpanel
- Sits on a tabletop or installs on a VESA mount — Threaded holes in baseplate allow for secure mounting to a table, while VESA FDMI Type D 75mm mounting pattern standard is used for VESA mounting.
- Weighted base allows up to 45° of tilt
- Kensington lock support — Allows the touchpanel to be locked to a table or other flat surface.
- Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus or Global Configurator Professional.
- Supports the optional SMA-1 Swivel Mount Adapter and LPVM-1 Low Profile VESA Mount
- Contemporary design that complements the aesthetics of any environment
- Supports the Extron Control App and Extron Control for Web
- Highly reliable, energy-efficient external universal power supply optional, replacement part #70-778-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
