技术细节
| 振动排放 |
5.5 m/s² |
| 工具夾 |
8 mm |
| 吸尘装置 |
Y |
| 主轴锁 |
Y |
| 打槽机打击频率(最大) |
55 mm |
| 变速 |
Y |
| 输入功率 |
1010 W |
| 空载转速范围 |
10000 - 24000 RPM |

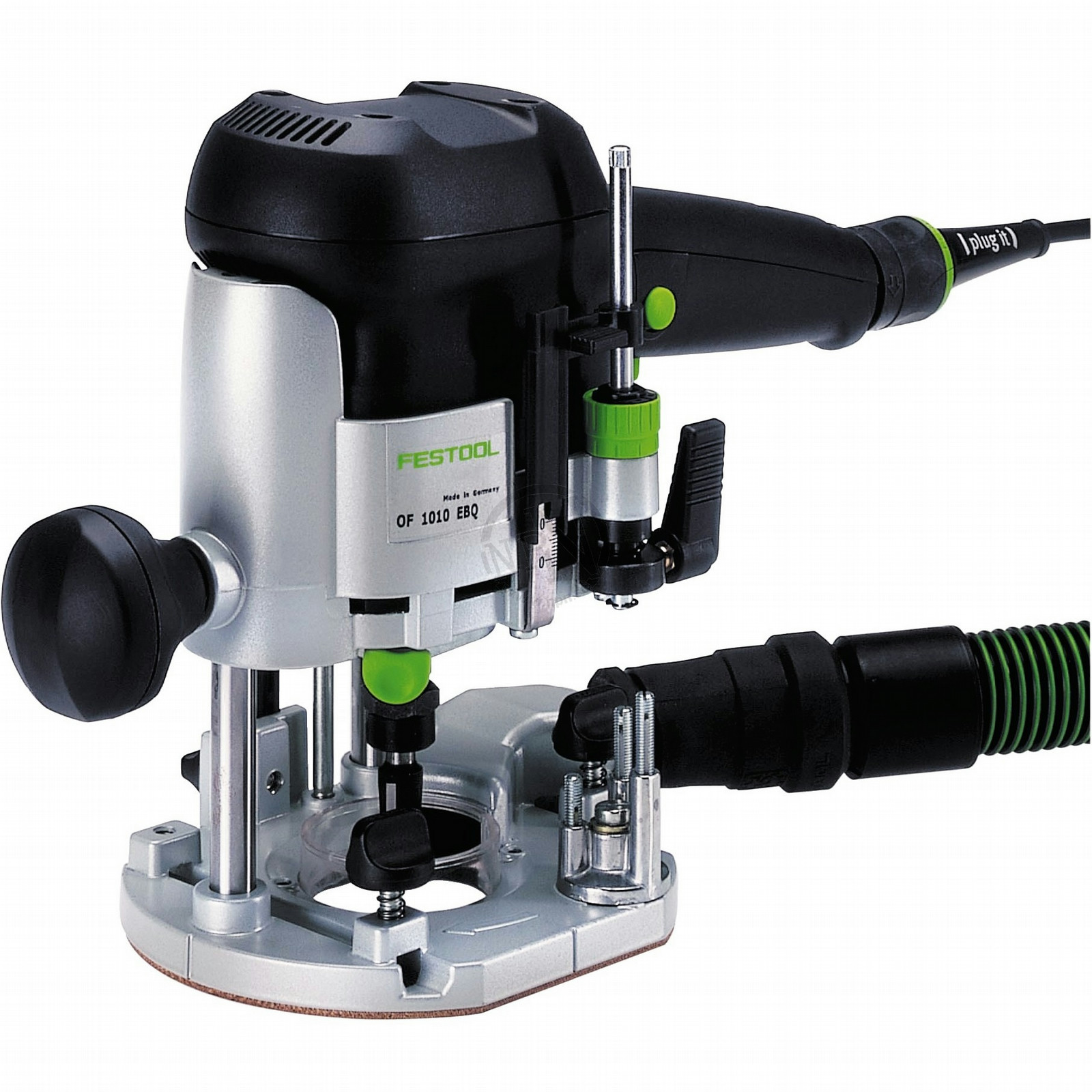

1010W, 10000-24000rpm, Ø8mm, M16x1.5, 2.7kg
Small tool for delicate tasks.
- Outstanding ergonomics and low weight
- Spindle stop for easy cutter changes
- Routing depth adjustment to 1/10 mm
- Quick-acting brake for improved safety (OF 1010 EBQ)
- MMC electronics for adaptation to the working material and temperature monitoring
- Chip extractor integrated into the router baseplate
Main areas of use
- Rounding, chamfering, rebating and profiling edges
- Recessing metal fittings
- Grooving rear panels, recessing dovetail batons or routing plasterboard with the guide system (edging technology)
- Producing rows of holes in cabinets using the hole series system LR 32
- Fashioning wooden joints with the VS 600
