Finisar HFE4093-342 1pc(s) Grey fiber optic adapter

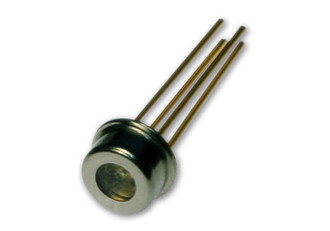

Unattenuated TO-46 component, VCSEL w/ Back Monitor Photodiode, Anode of VCSEL common w/ Photodiode Cathode These products are high-performance 850nm VCSELs (Vertical Cavity Surface-Emitting Lasers) designed for high-speed data communications and packaged with a custom designed power monitor diode. The power monitor diode can be used with appropriate feedback control circuitry to set a maximum power
level for the VCSEL. These combined features simplify design for high data rate communication and eye safety.
These products are high radiance VCSELs designed to convert electrical current into optical power that can be used in fiber optic communications and other applications. As the current varies above threshold, the light intensity increases proportionally.
These products are designed to be used with inexpensive silicon or gallium arsenide detectors, but excellent performance can also be achieved with some indium gallium arsenide detectors.
The low drive current requirement makes direct drive from PECL (Positive Emitter Coupled Logic) or ECL (Emitter Coupled Logic) gates possible and eases driver design.
These are designed to interface with 50/125 and 62.5/125μm multi-mode fiber.
They produce circularly symmetric, non-astigmatic, narrow divergence beams that, with appropriate lensing, fiber couple all of the emitter power.
