技术细节
频带 |
0.05 - 5 kHz |
温度测量范围 |
-40 - 400 °C |
直流电压范围 |
0.1 - 1000 V |
交流电压范围 |
0.1 - 1000 V |
背光 |
Y |
阻值范围 |
0.1 - 40 Ω |
分辨率(频率) |
0.01 Hz |
交流电流范围 |
1 - 10 A |
直流电流范围 |
1 - 10 A |
分辨率(直流电压) |
0.1 mV |
容量范围 |
1 - 9999 nF |
分辨率(交流电压) |
0.1 mV |
电阻分辨率 |
1 Ω |
分辨率(交流电流) |
1 µA |
分辨率(直流电流) |
1 µA |
Digital Multimeter, Remote Display, TRMS AC 6000 digits, 1000 VAC, 1000 VDC, 10 ADC
Imagine the Possibilities

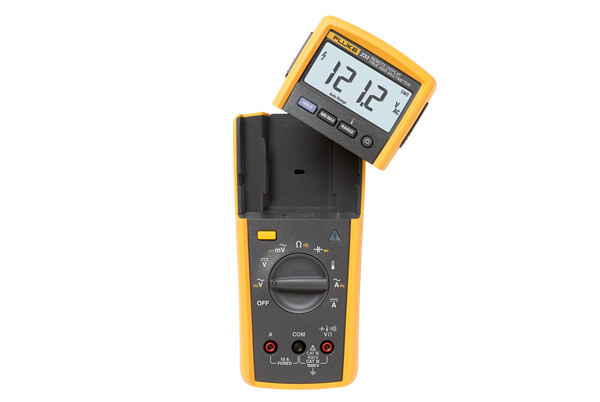

With its removable display, the Fluke 233 Digital Multimeter with True RMS gives you the flexibility to take measurements in hard to reach places or in areas with restricted access. You can be in two places at once and reduce the risk of arc flash by separating yourself from hazardous measurement situations.
True RMS AC voltage and current for accurate measurements on non-linear signals;
Measure up to 1000 VAC and DC;
Measure up to 10 A (20 A for 30 seconds)
10,000 μF capacitance range;
Frequency to 50 kHz;
Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument;
Resistance, continuity and diode test;
Low power wireless technology allows the display to be carried up to 10 meters (33 ft) away from the point of measurement for added flexibility. No interference with measurements;
The removable magnetic display can be conveniently mounted where it is easily seen;
Make measurements without holding the meter to improve visual focus on probes and augment safe electrical measurements;
Use as a conventional multimeter when the display is connected;
Radio transmitter automatically turns off when the display is connected to the meter;
Auto power off maximizes battery life;
Min/Max and Average recording to capture variations automatically;
Test continuity and diodes;
Easy to read display with large digits and bright backlight;
Battery life approximately 400 hours.
