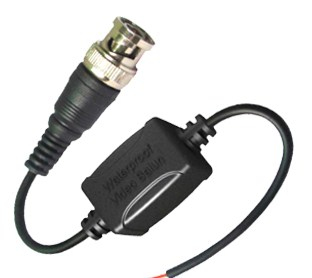

1-CH Waterproof Passive Video Balun, 270 x 18 x 8mm, PAL/NTSC/SECAM, BNC, 400m, 20g, Black
<b>Waterproof Super Mini Passive Video Balun</b>
- Full-motion color video signal up to 1312ft(400m) and monochrome (B&W) up to1968ft(600m) via UTP cat5e/6.
- NTSC, PAL & SECAM video format compatible.
- Real-time transmission.
- No power required.
- Exceptional interference rejection.
- Built-in TVS(Transient Voltage Suppressors) for surge protection.
- Lightning protection design Grade: III.
- 50 dB crosstalk and noise immunity.
- Compact size and easy installation.
- ABS engineering plastic housing.
The FS-4200SR video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective Unshielded Twisted Paired(UTP) cable. Baseband (composite) signals of any type are supported. The FS-4200SR video balun is waterproof and able to be used outside. Because of ultra miniature size, FS-4200SR greatly save space during installation. Worked in pairs, FS-4200SR eliminates costly and bulky coaxial cable, allowing live CCTV color video signal up to 1312ft (400m). The superial interference rejection and low emissions of the FS-4200SR allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. FS-4200SR
has built-in surge suppression to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
