16ch, PAL/NTSC/SECAM, BNC, RJ-45

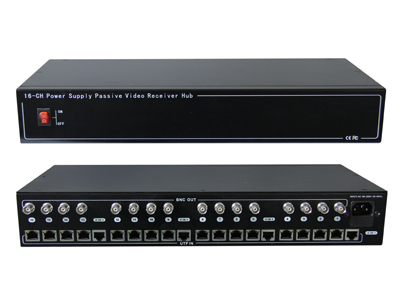

Folksafe FS-4616VPS is a sixteen channel video and power hybrid receiver that consolidates all CCTV system cabling using standard EIA/TIA 568A/B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, FS-4616VPS allows the real time transmission of CCTV video signal via cost-effective Unshielded Twisted Paired(UTP) cable. Baseband (composite) signals of any type are supported.
Working with FS-4301VPT it can transmit the camera video and power hybrid signal up to 656ft/200m for 12VDC output camera.
The superior interference rejection and low emissions of the FS-4616VPS allows video and power signals to co-exist in various environment. Compared with traditional video receiver, FS-4616VPS greatly reduces the cost and improves the performance. Compared with other similar products, Folksafe FS-4616VPS has higher performance, better stability, and more obvious price advantage.
<b>Features:</b>
- 16-CH Power Supply Passive Video Receiver Hub;
- Provides camera power while receiving video transmission both over a single 4-pair UTP cat5e/6 cable;
- Color video up to 1312ft(400m) via UTP cat5e/6;
- Power camera; Max 1A per channel;
- Transmit 12VDC power up to 328ft /100m working with FS-4301VPT (transmitter) for 12VDC camera;
- Female BNC connector and RJ45 Jack;
- NTSC, PAL & SECAM video format compatible;
- Real-time transmission;
- Exceptional interference rejection;
- Built-in TVS for surge protection & ground loop isolation;
- Lightning protection design Grade: Ⅲ;
- Wave Filter Design, Anti-Static Design;
- Black galvanized housing;
- Rack, wall mountable and desk installation with 4 rubber feet.
