电池
| 电池容量 |
7.2 Ah |
| 电池电压 |
12 V |
| 支持的的电池数量 |
20 |
能量控制
| 输入工作电压（最大值） |
300 V |
| 输入工作电压（最小值） |
176 V |
| 电源输入频率 |
46/64 Hz |
| 输出功率（瓦特－安培） |
6000 VA |
| 输出工作电压（最小值） |
110 V |
| 输出工作电压（最大值） |
120 V |
| 输出频率调节 |
50/60 Hz |
| 输出功率 |
4800 W |
性能
| 冷却方式 |
Active |
| 自动电压调节器（AVR） |
Y |
另外
| RS-232接口 |
1 |
| 以太网路(RJ-45)连接接口数量 |
1 |
6000VA, 4800W, 110-120/220-240V, 20 x 12v/7.2AH, RJ-45/11, LCD, Black

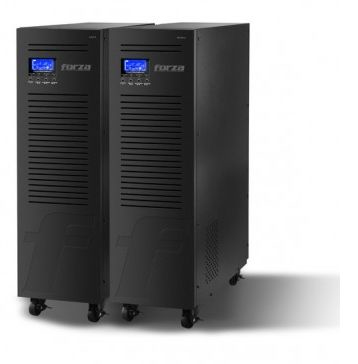

The new Atlas online series provides true double-conversion technology and the highest level of protection suitable for critical equipment. The Atlas models combine an optimized level of performance with rich functionality, resulting in a highly efficient system that is easy to maintain and operate.
Designed to prevent unexpected service interruptions due to overloads, internal fault conditions or during blackouts, the UPS ensures reliable and continuous operation through its internal battery bank and an optional external battery module.
The Atlas is available in 3000 VA, 6000VA and 10,000VA ratings, with 120V and 230V outputs.
Double-conversion
Online UPS with double-conversion topology
Runtime Time
Extended runtime time with an optional external battery module
Power Factor
Active input power factor correction of 0.99
Management Software
Includes ForzaTracker control, monitoring, and management software
Sine Wave
Pure sine wave output
Best UPS for Server Protection
Atlas 3K: Recognized as the Best UPS for Server Protection by Channel Awards 2012
LCD Display
Simplified monitoring with a state of the art LCD display
Environmentally Friendly
ECO mode of operation for an environmentally friendly operation
Microprocessor
Controlled by a technologically-advanced microprocessor
Compatibility
Generator compatible
Voltage Output
Dual voltage output
