性能
| 主板元件 |
ATX |
| 音频系统 |
Realtek ALC888 (HDA) |
背板输出端口
| 并口数量 |
1 |
| PS/2连接埠数量 |
1 |
| S/PDIF输出接口 |
Y |
| eSATA端口数量 |
1 |
内置输入/输出系统
| USB 2.0接口 |
8 |
| 串列ATA连接器数量 |
4 |
| ATX电源接头 |
Y |
| 风扇电源接头 |
Y |
| CD/AUX音频输入 |
Y |
| CPU风扇接口 |
Y |
| COM连接器数量 |
1 |
| 前面板音频接头 |
Y |
扩展槽
| 扩展插槽 |
2 x PCIe x16\n1 x PCIe x1\n3 x PCI |

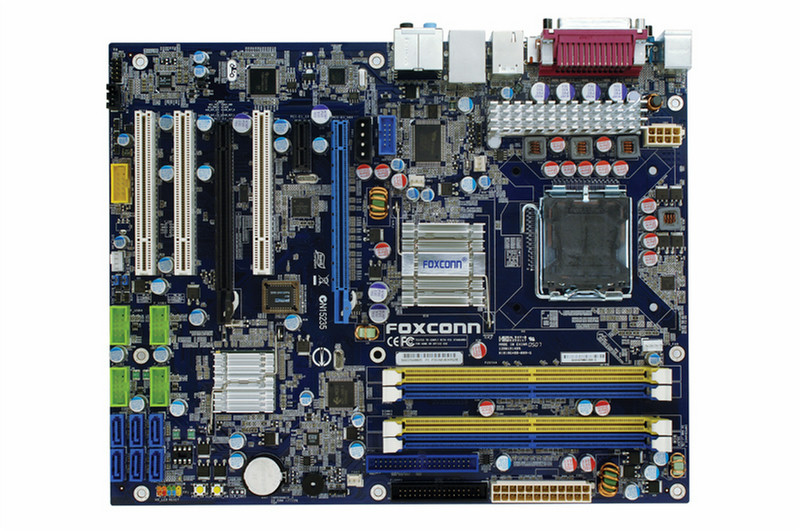

P35A S775 Intel P35 + ICH9
Supports latest Intel® Core™2 Quad and Core™2 Duo processors up to 1333MHz FSB, along with Intel® next-generation 45nm CPUs
Multimedia enthusiasts, prepare to enthuse. Bring quad-core performance to your desktop with the Intel® Core™2 Quad processor. It's the ideal engine for highly threaded entertainment applications and highly productive multitasking.
The Intel® P35 Express Chipsets support the latest multi-core processors up to FSB 1333MHz, including the upcoming 45nm platform, with its record breaking performance and greater energy efficiency. Intel® P35 chipset includes optimized system memory capabilities, chipset over-speed protection removed for maximum overclocking, and Intel® Turbo Memory technology - providing faster boot and application load times and additional power savings.
Dual-channel DDR2 1066/800/667MHz memory, 8GB. Max.
Enjoy a faster, smoother, more productive computing experience, with DDR2 memory clocked up to 1066MHz!
2 x PCIe x16 (run x16 + x4 mode) with CrossFire™ Support ATI CrossFire™ technology harnesses the power of two ATI graphics cards simultaneously to deliver ultra-smooth 3D graphics with more graphical detail than ever before. Ideal for gaming enthusiasts who demand the highest frame rates without compromising on resolution, CrossFire™ is completely scalable, and so two graphics cards deliver almost twice the graphics power of a single card.
7.1 Channel HD Audio
8 channels of High Definition Surround sound turn your PC into a true multi-media centre; enjoy movies, music and games greater audio quality. Intel HD Audio delivers multiple audio channels in your PC so you can listen to two different streams simultaneously in two seperate rooms.
- Intel® Core™2 Quad, Core™2 Extreme, Core™2 Duo, Pentium® Dual-Core E2xxx, Celeron® 4xx, Pentium® D, Pentium® 4 and Intel® next generation 45nm Multi-Core processors , Socket T (LGA775).
- 1333 / 1066 / 800 MHz (FSB).
- Dual Channel DDR2 1066(oc) / 800 / 667 x 4 DIMMs, Max 8GB.
- 2 x PCIe x16, 1 x PCIe x1, 3 x PCI.
- ATA x1, SATAII x 5.
- 7.1 channel HD Audio.
- GbE LAN.
- 12 USB 2.0 ports.
