设计
| 支持的主板外形 |
Micro-ATX, Mini-ITX |
| 5.25" 托架数量 |
2 |
| 3.5" 托架数量 |
6 |
| 侧窗 |
Y |
| 2.5" 托架数量 |
2 |
| 最大显卡长度 |
400 mm |
| 最大CPU散热器高度 |
165 mm |
| 最大PSU长度 |
220 mm |
| 扩展插槽数 |
5 |
| 类型 |
PC |
冷却
| 支持的顶部风扇直径 |
120, 140 mm |
| 最大前部风扇 |
2 |
| 支持的后部风扇直径 |
120 mm |
| 最大后部风扇 |
1 |
| 最大顶部风扇 |
2 |
| 最大底部风扇 |
1 |
| 安装的顶部风扇 |
1x 140 mm |
| 安装的后部风扇 |
1x 120 mm |
| 液体冷却能力 |
Y |
| Front radiator fan sizes supported |
240 mm |
| 支持的最大散热器尺寸 |
240, 360 mm |
| 前部风扇安装 |
1x 140 mm |
| 支持的底部风扇直径 |
120 mm |
端口 & 界面
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |

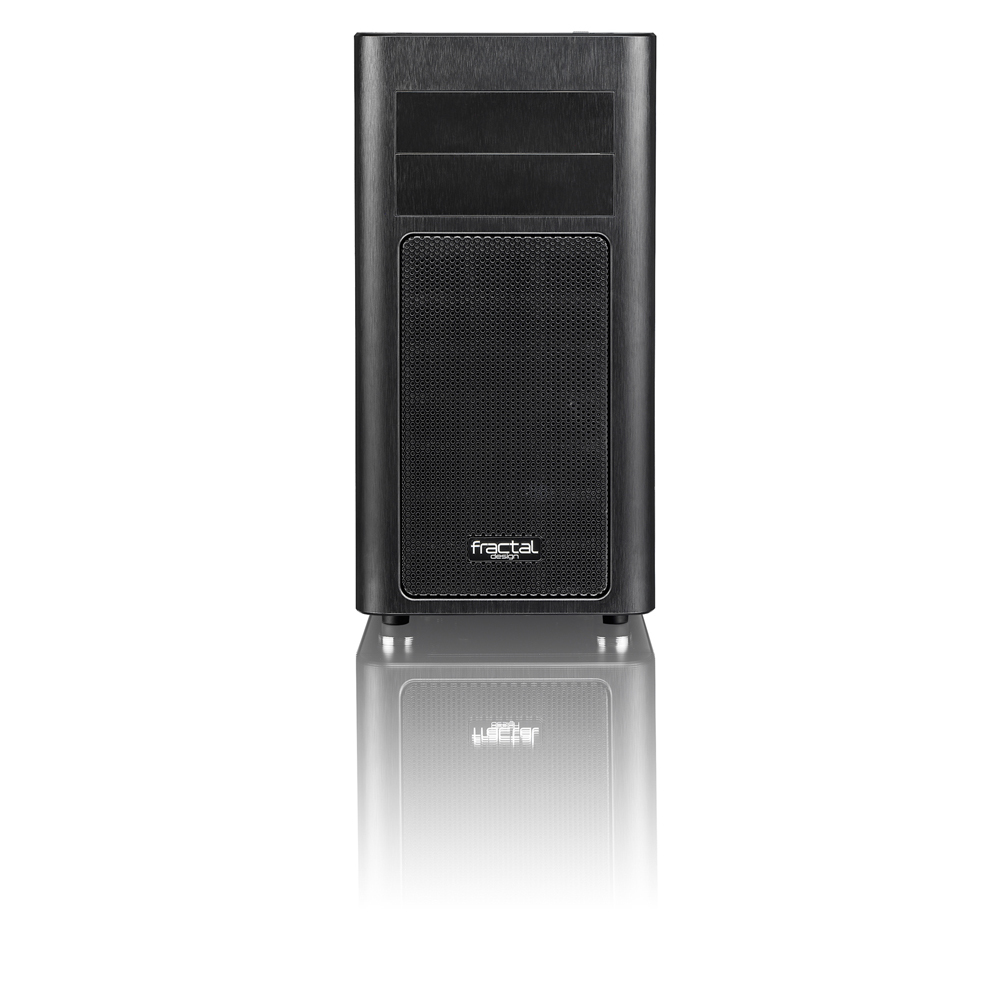

ARC Mini R2 w/ Window, Micro ATX, Mini ITX, 2x 5.25", 6x 3.5", 2x 2.5"
The Arc Mini R2 micro ATX case combines excellent cooling potential and build configurability in a compact, minimalistic and elegant chassis design.
For a case of this size, it offers unmatched possibilities for water cooling components. And with room for up to six 3.5” drives plus an additional two 2.5” drives hidden behind the motherboard plate, you can build a well-cooled PC with ample storage space.
The Arc Mini R2 is built to last and is filled with smart features such as dust filters, fan controller, space for tidy cable routing, three case fans included and a window side panel.
Key features
- A compact micro ATX case designed for exceptional airflow and cooling
- Superior water cooling support for its size, accommodating multiple thick 240mm radiators or even a 360mm radiator for an uncompromised cool system build
- Three Silent Series R2 fans included, giving you excellent cooling straight out of the box! 4 additional fan positions are available
- Featuring an integrated three-speed fan controller and USB 3.0 on the front panel for easy access
- Multiple easy-to-clean dust filters designed into the case to help maintain a dust free interior
- Great storage capacity for a mini chassis, with up to six 3.5” drives and two additional 2.5” drives
- Innovative SSD position mounting, using brackets to allow for easy access once your system is completely built
- Featuring a large stylish window side panel to show off your set up in style
- Designed with ample space for easy, tidy cable routing and an overall a neat build
