技术细节
| 手动冷却型 |
FDB |
| 风扇连接器 |
4-pin |
| 安装孔模式（高x V） |
125 x 125 mm |
性能
| 最大气流 |
78.1 cfm |
| 气流 |
132.7 m³/h |
| 最大空气压力 |
1.94 mmH2O |
| 噪音水平（低速） |
10 dB |
| 噪音水平（高速） |
30.1 dB |
| 转速（最小） |
400 RPM |
| 转速（最大） |
1500 RPM |
| 风扇厚度 |
25 mm |
| 类型 |
Fan |
| 风扇直径 |
140 mm |
| 适用于 |
Computer case |
能量控制
| 最大电流 |
0.2 A |
| 电压 |
12 V |
| 电源 |
1.4 W |

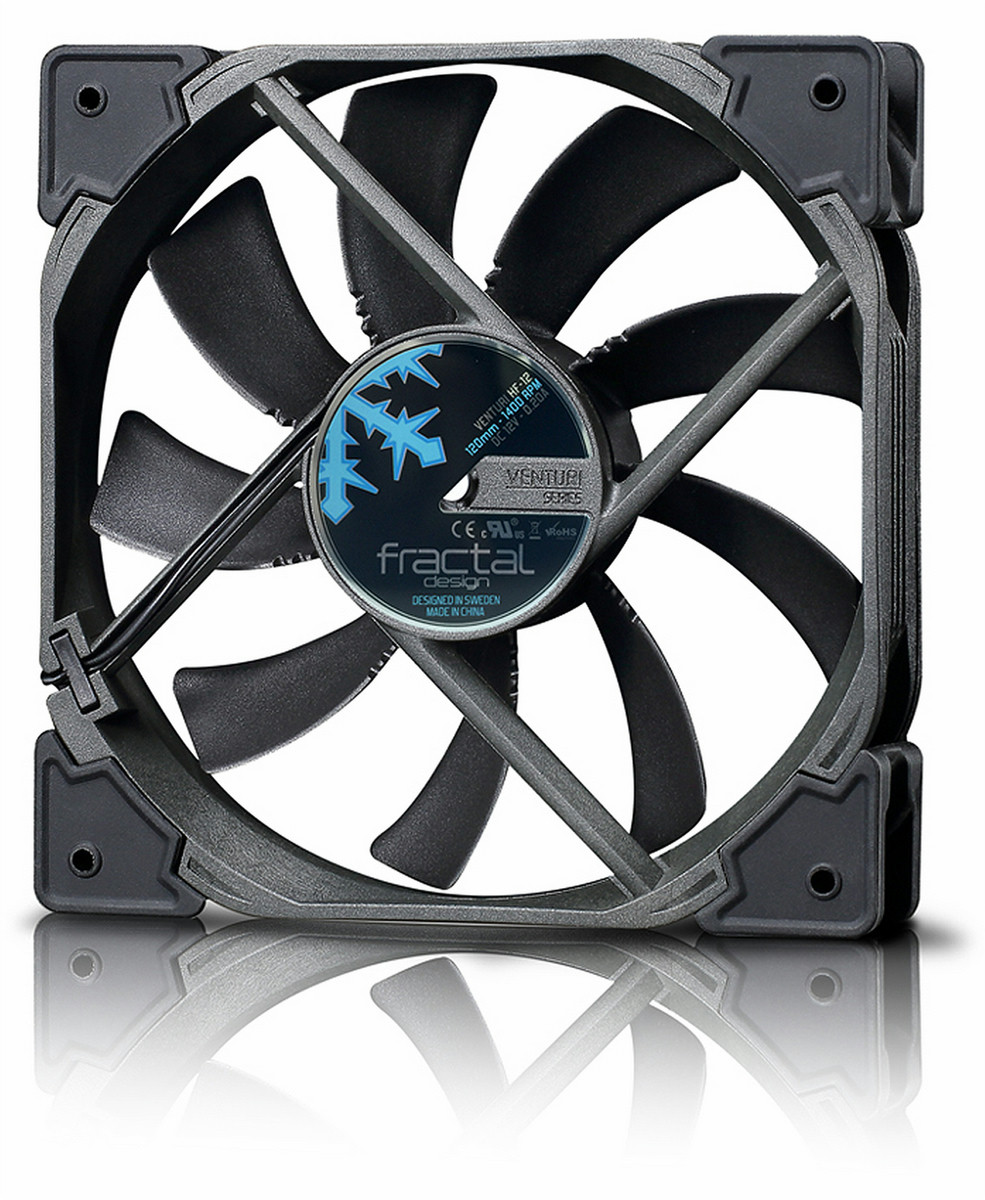

Venturi HP-14 PWM - 120mm, 4-pin, 7 blades, FDB, 30.1dB
The Venturi High Flow Series fans, HF-12 and HF-14, are optimized for low-restriction airflow environments, making them an excellent choice for computer case fans, or other low-restriction usage scenarios.
Designed with a variety of performance-increasing and noise-reducing features, these fans can move an amazing amount of air compared to other fans at the same, minimal noise level.
The HF-14 comes with two sets of solid vibration-dampening rubber corners: one for standard 140mm fan hole spacing (125mm) and one compatible with the standard 120mm hole spacing (105mm). The Venturi High Flow Series fans are ideal for those looking for a perfect balance between high performance and low noise built from sturdy, high quality materials.
- Featuring true FDB-bearings, providing silent operation coupled with a long lifespan
- Equipped with a counter-balanced magnet that reduces the axial tension on the bearing
- Features integrated vibration-dampening corners, made from solid high-quality synthetic rubber
- Dense, sturdy construction, made from high-grade glass fiber reinforced thermoplasticpolymer
- Fan geometry is optimized for a ground-breaking airflow, perfect for low-restriction usage scenarios such as computer case ventilation and low-density heatsinks or radiators.
- Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence
- Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts
- The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation
- Featuring a powerful motor to maintain a reliable speed and a low-speed adapter for reducing the speed without the use of a fan controller
- 140mm fans come with an additional set of vibration-dampening corners are included that lends compatibility with 120mm fan mounts (105mm screw spacing). This enables the use of 140mm fans on many CPU coolers.
- Available in 120mm and 140mm fan sizes
