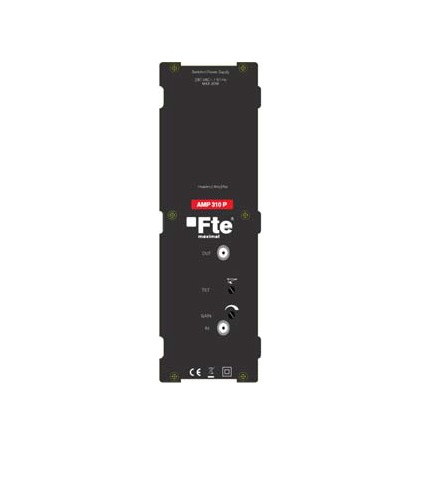

Fte maximal AMP 310 P Modular headend amplifier

AMP 310 P, Amplifier, 47-862MHz, 95-230V, 50-60Hz, 17 W The wide band amplifier AMP 310P amplifies the frequency range of 47-862MHz. The input and output connection are type F female. It has a 45 dB gain and a 125 dBμV output level. It also has a 20dB regulation for the ideal adjustment of output level and a equalization of 10 dB for avoiding the decompensation between high and low frequencies.
Due to the equipment of 6 receivers with a Power Supply occupy the entire available
space in a FRA 300 frame, the AMP 310 P is supplied with all the needed pieces for extending the frame and allowing placing one space more.
In this manner, we achieve that a frame for 6 modules and Power Supply (total 7 modules) becomes a frame for 8 modules.
