Fte maximal DVB 310 S

Fte maximal DVB 310 S

发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

内容包装

快速安装向导 Y

性能

输入阻抗 75 Ω
杂散电平 -60 dBc
前向误差校正(FEC)编码速率 7/8, 5/6, 3/4, 2/3, 1/2
输入符号率 4 - 30 Ms/s
输入功率(最大) -60 dBmW
输入功率(最小) 30 dBmW
接受频率范围 950 - 2150 MHz
输出电压 82 dBμV
调制 QPSK

端口 & 界面

DC-IN插口 Y
直流电输出插孔 Y
RJ-45输入端口 2
RF连接器类型 F
RF 射频输入 2
RF 射频输出 2

设计

机架安装 Y

能量控制

低噪声模块(LNB)电源供应 18V + 22kHz, 18V, 13V + 22kHz, 13V
电力消耗(30V) 3 mA
电力消耗(12V) 400 mA
电力消耗(5V) 800 mA

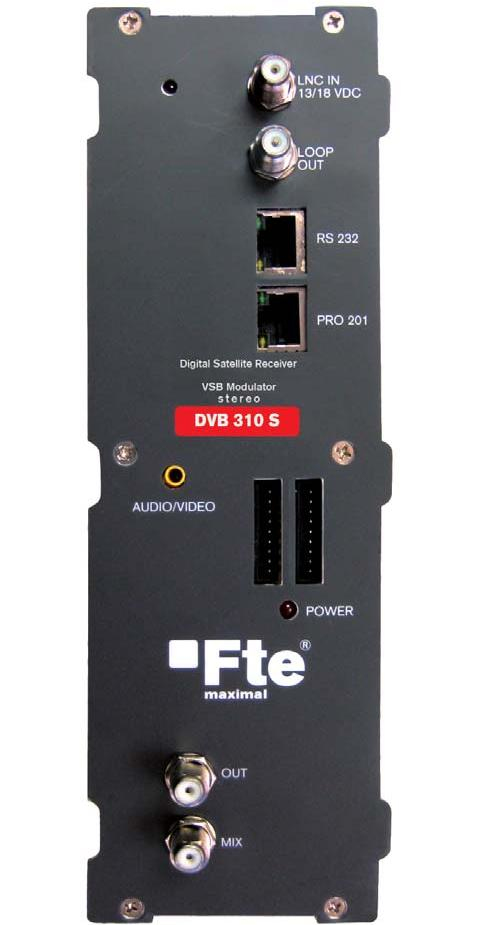

DVB 310 S, Digital Satellite Receiver for headends, DVB-S input, PAL output DVB 310 S module is used for the reception of free channels and DVB 310 S CI module is used for free channels as well as for codified channels. In both cases, the received channels must follow the DVB-S rule. Each module allows the reception in QPSK, and the following modulation in PAL/SECAM of a TV or Radio channel. Main feature of this equipment is its modulator in Vestigial Side Band (or VSB). This modulation can be used to distribute adjacent channels in one distribution without any intermodulation problem.
