其他功能
SMP(适用于表面安装的封装形式)处理器的最大数量 |
1 |
内部驱动器托架 |
4 x 3.5" |
外部驱动器托架 |
2 x 5.25", 2 x 3.5" |
内置驱动器插槽 |
6 x SATA |
扬声器 |
1 |
网路功能 |
Gigabit Ethernet (10/100/1000) |
处理器
处理器安装数量 |
1 |
处理器加速频率 |
3.6 GHz |
处理器高速缓存 |
8 MB |
处理器光刻 |
45 nm |
散热设计功耗 (TDP) |
95 W |
PCI Express 通道数的最大值 |
1 |
处理器支持显存频率 |
800, 1066, 1333 MHz |
处理器支持内存通道 |
Dual |
无冲突处理器 |
N |
PCI Express配件 |
1x16, 2x8, 4x4 |
FSB奇偶校验 |
N |
总线频率 |
22 |
处理器运行模式 |
64-bit |
步进 |
B1 |
核心的处理器数量 |
4 |
处理器频率 |
2.93 GHz |
处理器支持最大内存 |
32 GB |
外壳温度 |
72.7 °C |
处理器支持 ECC 功能 |
Y |
处理器支持内存类型 |
DDR3-SDRAM |
总线类型 |
DMI |
处理器支持内存带宽(最大值) |
21 GB/s |
处理器高速缓存类型 |
Smart Cache |
Number of Processing Die Transistors |
774 M |
PCI Express插槽版本 |
2.0 |
端口 & 界面
串口数量 |
1 |
IEEE 1394/Firewire(火线)端口数量 |
1 |
耳机输出端口 |
2 |
麦克风/音频输入插孔 |
Y |
PS/2连接埠数量 |
2 |
处理器的特殊功能
英特尔® Flex内存访问 |
N |
执行禁止位 |
Y |
英特尔®快速存储技术 |
N |
英特尔® 快速内存访问 |
N |
闲置状态 |
Y |
热监测技术 |
N |
英特尔®可信执行技术 |
Y |
实体位址扩充(PAE) |
36 bit |
英特尔®虚拟化技术(VT -x) |
Y |
处理器封装尺寸 |
37.5 mm |
Processor ARK ID |
42932 |
处理器代码 |
SLBJH |
英特尔®快速同步视频技术 |
N |
英特尔® 内线™ |
N |
物理地址扩展(PAE) |
Y |
英特尔®64 |
Y |
英特尔® 清晰视频技术 |
N |
英特尔® 双显示功能技术 |
N |
CPU配置(最大) |
1 |
可选用的嵌入式选项 |
N |
英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
Y |
英特尔®智能高速缓存 |
Y |
英特尔® 防盗技术 |
N |
英特尔®超线程技术 |
Y |
英特尔®Turbo Boost技术 |
Y |
英特尔® 增强暂停状态 |
Y |
英特尔® 我的WiFi技术 |
N |
英特尔®MID清晰视频技术 |
N |
英特尔®vPro™ 技术 |
N |
英特尔®VT-x的扩展页表(EPT) |
Y |
英特尔® FDI技术 |
N |
增强型英特尔®SpeedStep动态节能技术 |
Y |
英特尔®基于需求开关 |
Y |
英特尔®无线显示(WiDi)技术 |
N |
英特尔®清晰视频高清技术 |
N |
支持指令集 |
SSE4.2 |
扩展槽
PCI 插槽 |
3 |
PCI Express × 1插槽 |
2 |
PCI Express × 4插槽 |
1 |
PCI Express x16 插槽 |
1 |
内存参数
内存时钟速度 |
1333 MHz |
内存布局 |
4 x 2 GB |
最大内部存储 |
16 GB |
内置存储器 |
8 GB |
内存类型 |
DDR3-SDRAM |
软件
提供可选的操作 系统 |
Windows XP Professional |
存储介质
硬盘容量 |
1000 GB |
硬盘转速 |
7200 RPM |
集成读卡器 |
N |
RAID支持 |
Y |
硬盘接口 |
Serial ATA II |
安装的硬盘驱动器的数量 |
1 |
设计
线缆锁插槽 |
Kensington |
机箱板型 |
Tower |
另外
HDD用户密码 |
Y |
InTru™3D技术 |
N |
主板晶片 |
Intel 3450 |
Processing die size |
296 mm² |
图形适配器 |
Firepro V4800 |
英特尔®AES新指令 |
N |
以太网路(RJ-45)连接接口数量 |
1 |
系统总线 |
2.5 GT/s |
Intel Xeon X3470 2.93GHz, 8192MB DDR3 RAM, 1000GB SATA II HDD, DVD±RW, Gigabit Ethernet, 13 x USB 2.0, Windows 7 Professional/Windows XP Professional

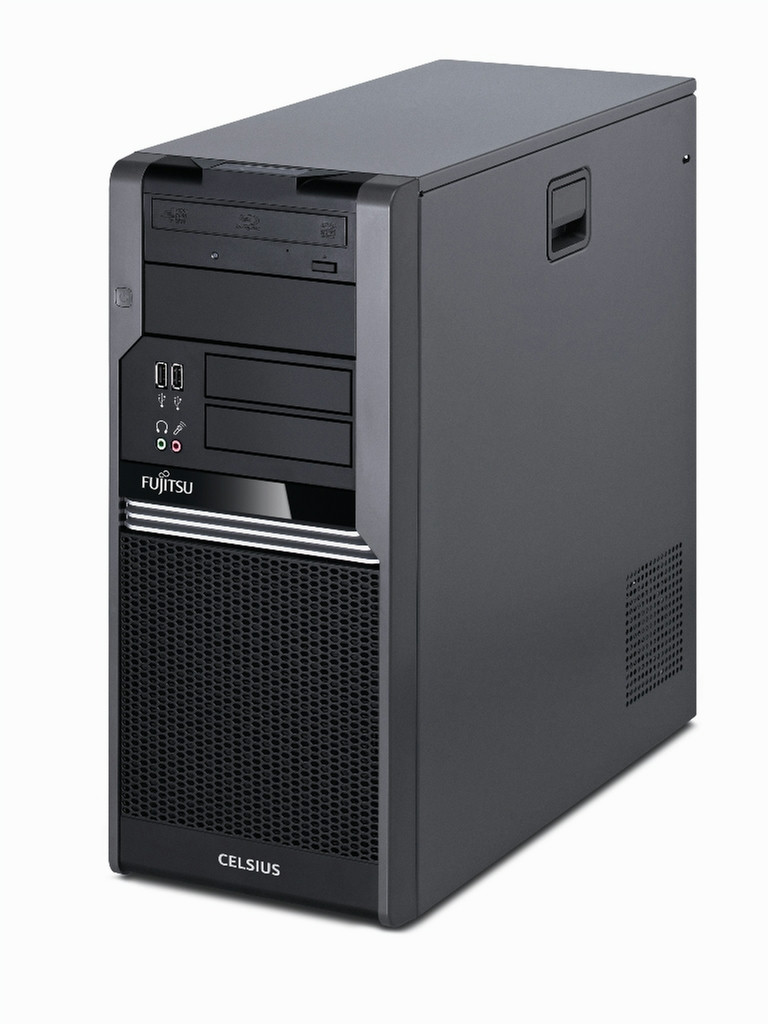

The CELSIUS W480 is the advanced workstation for professional environments. Powered by the
latest Intel® Processors, it is the ideal choice for business environments such as 3D CAD, financial
forecasting and digital content creation. Thanks to the ISV certification process you can be guaranteed
that your preferred professional applications will run with maximum speed and system stability.
Extremely powerful workstations
Get more done in less time
- The fastest available processors, graphics cards and hard disk drives.
Noise-reduced system
Silent working enviroment
- Optimized thermal management, low-noise chassis and silent fans.
Serviceability
Minimum downtime in the event of system failure
- Service-friendly system design.
Leading workstation application certification
Maximum compatibility and performance with customer-preferred applications
- Full support for ISV applications and easy integration into existing IT environments.
Built to order
Free configurability for all product lines
- Customer is given a system optimized for his requirements.
