性能
| 主板元件 |
ATX |
| 主板芯片组系列 |
Intel |
| 音频系统 |
Realtek ALC671 |
内存参数
| 可支持内存时钟速度 |
1333, 1600 MHz |
| 错误更正代码 |
N |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存电压 |
1.5 V |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
4 |
| 最大内部存储 |
32 GB |
背板输出端口
| 串口数量 |
1 |
| S/PDIF输入端口 |
N |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
N |
| 麦克风/音频输入插孔 |
Y |
| DVI-I接口数量 |
1 |
| DisplayPort 数量 |
2 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
内置输入/输出系统
| 迷你SATA端口数量 |
1 |
| USB 2.0接口 |
3 |
| S/PDIF输出端口 |
N |
| S / PDIF输入接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
2 |
| SATA III连接器数量 |
6 |
| 并行接口 |
Y |
| CPU风扇接口 |
Y |
| 前面板音频接头 |
Y |
| 12V 电源接头 |
Y |
扩展槽
| PCI 插槽 |
4 |
| PCI Express X16（Gen 2.x）插槽 |
1 |
| PCI Express X16（Gen 3.x）插槽 |
1 |
| PCI Express X 8（Gen 2.x）插槽 |
1 |
处理器
| 英特尔®酷睿™ i3/ i5 / i7 系列 |
i3-4xxx, i5-4xxx, i7-4xxx |
另外
| 主板晶片 |
Intel Q87 |
| 图形适配器 |
HD Graphics |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |
ATX 243.8 x 304.8 mm, Intel Q87, 4x DIMM Sockets, Intel Core i7/i5/i3/Pentium/Celeron

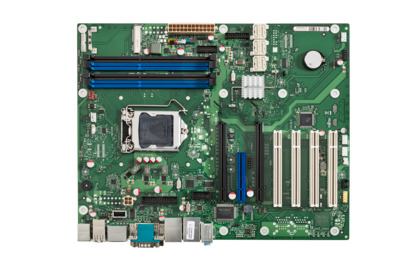

The FUJITSU Industrial Mainboard D3236-S is the best choice for industrial requirements. Produced in the German Fujitsu Mainboard Factory in Augsburg, the D3236-S fulfills the highest quality needs. Featured by the Intel® Q87 Express Chipset, the 4th Generation of Intel® Core™ processors are supported. To fulfill the requirement about reliable and managable network connections, the Fujitsu D3236-S is equipped with two Intel® GbE LAN Controller which supports the latest Intel® Active Management Technology (iAMT9.0). The Fujitsu D3236-S is designed & approved for 24/7 continiuous operation also in enhanced temperature ranges up to 60°C. Finally an improved Thermal Management & System Monitoring Microcontroller enables the user to get the whole overview about the system status.
