其他功能
| 硬盘控制器 |
1 |
| 连接/工作 LED |
Y |
| 连通的液晶显示器 |
Y |
| 主机接口 |
2 |
| 尺寸（宽 x 深 x 高） |
483 x 650 x 88 mm |
| 电源需求 |
100 - 240 V, 50 - 60 Hz |
| 液晶显示器功率 |
Y |
| 网路功能 |
Gigabit Ethernet |
| 兼容性操作系统 |
Windows Server 2008 R2 Standard (64-bit)\nWindows Server 2008 R2 Enterprise (64-bit)\nWindows Server 2008 R2 Datacenter (64-bit)\nWindows Server 2008 Standard (32-bit)(64-bit)\nWindows Server 2008 Enterprise (32-bit)(64-bit)\nWindows Server 2008 Datacenter (32-bit)(64-bit)\nWindows Server 2003 R2, Standard Edition\nWindows Server 2003 R2, Enterprise Edition\nWindows Server 2003 R2, Standard x64 Edition\nWindows Server 2003 R2, Enterprise x64 Edition\nWindows Server 2003, Standard Edition\nWindows Server 2003, Enterprise Edition\nWindows Server 2003, Standard x64 Edition\nWindows Server 2003, Enterprise x64 Edition |
存储介质
| 可支持的存储驱动器数量 |
24 |
| 支持最大存储容量 |
48 TB |
| 存储驱动器尺寸 |
3.5 " |
| RAID 配置 |
1, 0+1, 5, 5+0, 6 |
| 存储驱动器接口 |
Serial Attached SCSI (SAS) |
性能
| 噪音水平 |
42 dB |
| 管理协议 |
SNMP v1, SMI-S 1.2 |
环境条件
| 相对湿度 |
20 - 80% |
| 工作高度 |
0 - 3000 m |
设计
| 液晶显示器指示灯 |
Y |
| 机箱板型 |
Rack (4U) |
认证标准
| RoHS符合性 |
Y |
| 认证 |
CE, RoHS, CNS, FCC, ICES, EN, VCCI, UL, CSA, EN, IEC, GOST-R |
联网
| 遵守工业标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
另外
| 最大内部存储 |
2048 MB |
| 光纤通道 |
Y |
| 内部RAM |
1 GB |
| 开/关切换钮 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
5 - 40 °C |

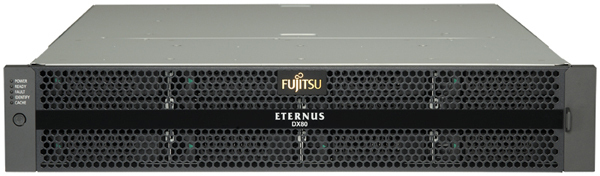

ETERNUS DX60, 800 MHz, 0, 1, 1+0, 5, 5+0, 6, 1GB Cache, 8.89 cm (3.5 ") HDD, SCSI, Gigabit Ethernet, SNMP, SMI-S 1.2, 42 dB, 800 W, 70000 g, Black
Fujitsu ETERNUS DX60 is a new generation of entry level disk storage systems with enterprise class reliability.
Easy to install, configure, operate and maintain, they integrate well with host operating systems, multi-vendor servers, network infrastructures and backup solutions.
The Data Safe
Fujitsu ETERNUS DX60 is a new generation of entry level disk storage systems with enterprise class reliability. Easy to install, configure, operate and maintain, they integrate well with host operating systems, multi-vendor servers, network infrastructures and backup solutions.
ETERNUS DX60 disk storage systems flexibly scale to 48 terabyte with 24 drives. Different models can either be attached to hosts via Fibre Channel, iSCSI or SAS connections.
ETERNUS DX60 base units support 12x 3.5"drives per 2U rack shelf. Alternative base units of the FC-attached models can be equipped with 24x 2.5"drives per 2U shelf to reduce power consumption and space requirements.
Backup copies are always at hand via the included eight snapshots and clones, which can be optionally upgraded to 512.
ETERNUS SF Express management software, provided with ETERNUS DX60, simplifies the monitoring, management and copying methods of multiple ETERNUS DX disk storage systems from a central console.
