存储介质
| 安装存储总容量 |
900 GB |
| 存储驱动器容量 |
450 GB |
| 支持最大存储容量 |
120 TB |
| 存储驱动器安装数目 |
2 |
| 可支持的存储驱动器数量 |
2 |
其他功能
| 网路功能 |
Gigabit Ethernet |
| 内部高速缓存 |
1024 MB |

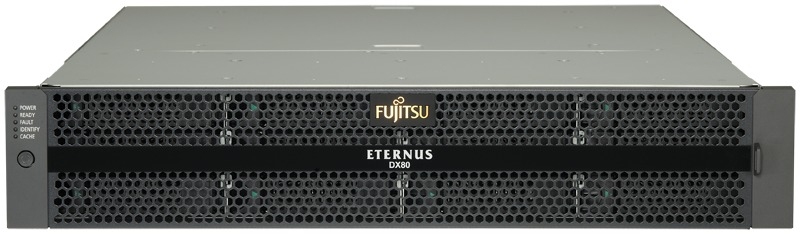

ETERNUS DX80, 900GB (2x 450GB) 15000rpm SAS HDD, 1.2GHz CPU, 1GB Cache, Gigabit Ethernet
The Data Safe
With three different base models, ETERNUS DX80 entry level disk storage systems can either connect to hosts via Fibre Channel (with 8 Gbit/s performance option for DX80) , iSCSI or SAS. They are easy to install, configure, operate and maintain, integrating well with host operating systems, servers, network infrastructures and backup solutions.
Different drive types can be mixed and matched, secured by the relevant monitored RAID levels (0, 1, 5, 1+0, 5+0 and 6) and features to ensure data integrity. Administrators can dynamically move data, spin disks down to save energy or encrypt disks to prevent unauthorized access.
In the event of power outages, the content of the cache is secured to flash memory. A backup copy is always at hand via snapshots and clones.
The energy saving storage device can be scaled from 600 GB to 120 TB and is equipped with all state-of-the-art capacities of high-performance SAS and large capacity Nearline SAS disk drives as well as Solid State Drives.
The standard system is delivered with 8 snapshots and can be extended to 1,024 snapshots. The ETERNUS DX80 is equiped with either four 4 or 8 Gbit/s Fibre Channel, 1 Gbit/s iSCSI or 3 Gbit/s SAS host ports on two controllers with overall 4 GB cache. The Fibre Channel or iSCSI model can connect up to 128 servers in SAN mode.
Reliability:
-Cache Protector.
-Redundant Copy.
-Data Block Guard.
-Redundant components.
Flexibility:
-RAID Migration.
-SAS and Nearline SAS disks.
-Eco-mode.
Innovation:
-4 or 8 Gbit/s Fibre Channel, iSCSI or SAS technology.
-15,000 rpm SAS, 7,200 rpm Nearline SAS & SSD.
-8 to 1,024 snapshots.
Ease of use:
-Web interface.
Versatility:
-Multiple usage scenarios.
Benefits
-Returns the array to high performance mode within minutes following restore.
-Reduces recovery times and minimizes the risk of permanent data loss.
-Ensures data integrity on the disk and in the cache.
-Highest 99.99% availability.
-Various service levels depending on the access frequency and importance.
-Fulfills all main performance and capacity requirements.
-Reduces energy consumption and heat dissipation.
-For highest performance.
-For improved data protection.
-Easy to install and use.
-Supports a wide range of applications, operating systems and servers.
