纸张处理
自动进纸槽(ADF)纸张重量(厚度) |
31 - 209 g/m² |
最大扫描范围(自动文档进纸器) |
297 x 420 mm |
ISO A 系列文件最大尺寸 |
A3 |
ISO A-系列 尺寸(A0…A-9) |
A3, A4, A5, A6 |
扫描
胶片扫描 |
N |
输出色彩深度 |
24 bit |
ADF扫描速度(黑白,A4) |
72 ppm |
灰度级别 |
1024 |
光学扫描分辨率 |
600 x 600 DPI |
双面扫描 |
N |
输入色彩深度 |
24 bit |
系统要求
可支持的服务器操作系统 |
Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64 |
可支持的Windows操作系统 |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
性能
扫描驱动程序 |
ISIS, TWAIN |
传感器类型 |
CCD |
光源 |
WCC DL |
能量控制
输入电压 |
100-240 V |
功耗(一般操作) |
130 W |
功耗(待机) |
6 W |
电源类型 |
AC |
端口 & 界面
标准接口 |
Ultra SCSI, USB 1.1, USB 2.0 |
环境条件
运行温度范围(T - T) |
42 - 95 °F |
运行湿度范围(H-H) |
20 - 80% |
内容包装
捆绑软件 |
PaperStream IP\nPaperStream Capture |
重量和尺寸
深度 |
500 mm |
重量 |
35000 g |
宽度 |
690 mm |
高度 |
342 mm |
另外
扫描类型 |
Flatbed & ADF scanner |
最小扫描范围 (自动文档进纸器) |
52 x 74 mm |
ADF扫描速度(彩色,A4) |
72 ppm |
黑/白扫描色彩模式 |
Grayscale, Monochrome |
产品色彩 |
Black, White |
彩色扫描 |
Y |
运行温度范围(T - T) |
5 - 35 °C |
fi-6750S - A3-A8, CCD, 600dpi, USB 2.0, 35kg
- Ergonomic ADF - positioning and direction can be adjusted
- Fast scanning speed: 72 ppm (200/300 dpi, A4 landscape)
- Electronic colour dropout (RGB)
- 600dpi optical resolution, 50dpi - 600dpi output resolution
- Ultrasonic double feed detection with intelligent multi-feed function
- Handles long documents up to 3m
- Optional manual feeding mode
- Scanner Central Admin: monitor running status, update drivers and software from a single location.

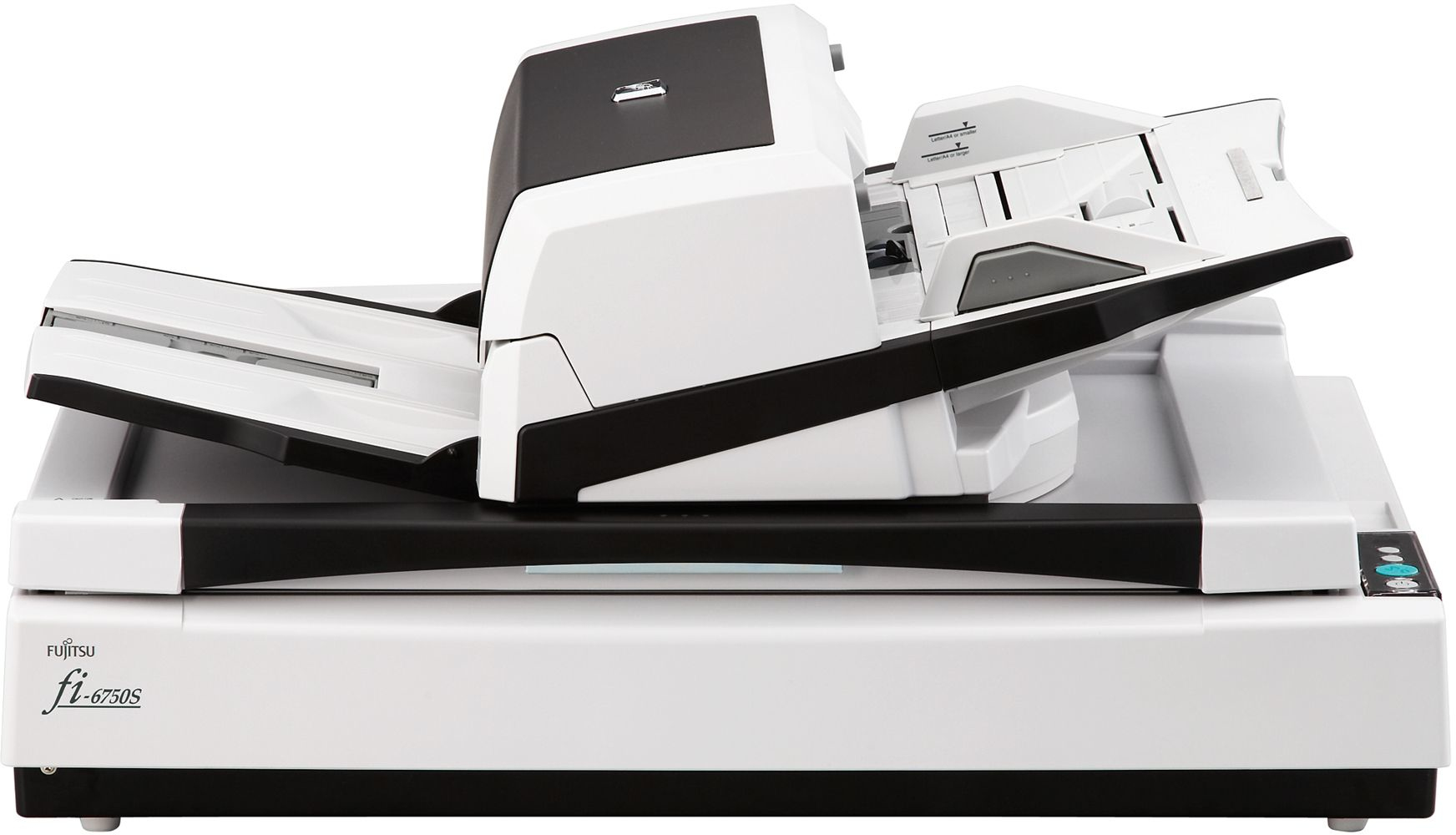

fi-6750S
Our most affordable A3 ADF and flatbed production scanner, the fi-6750S, scans batches of up to 200 sheets in black-and-white and colour at 72ppm in A4 landscape. The rotatable ADF which is positioned on top of the flatbed unit can be locked at the centre or moved to the left, and the ADF direction can be adjusted to the operators’ individual needs. This feature makes the fi-6750S particularly easy to use for both right and left-handed users, while its compact size makes it fit in the smallest office space.
Intelligent functions for efficient operation
The fi-6750S comes loaded with features allowing the scanner to work autonomously as a true batch document scanner.
Intelligent multi-feed function simplifies pre-scanning preparation and improves efficiency by identifying documents that tend to trigger false multi-feed alerts, such as documents with photos or sticky notes attached. Additionally, continuous uninterrupted scanning is achievable due to the fact that paper is fed from the bottom of the stack allowing for more paper to added during the scanning process.
Trapezoid-shaped and tab attached document cropping / punch hole removal functionality
The fi-6750S scans trapezoid-shaped documents across their full width, as well as ensuring that index tab and sticky note attached documents are scanned in their entirety. In addition, the fi-6750S removes the circular and angular punch hole representations that are created from scanning loose-leaf sheets, courier service forms and other similar documents.
Also bundled as standard is centralised administration software that dramatically reduces the cost and effort of setting-up, operating and maintaining many scanners in an organization - and in expanding the scanner network to multiple remote locations. System administrators can manage the installation of multiple PC-attached scanners and network scanners from a single location, manage client and server devices on the network, establish scanner groups, monitor operational status, update drivers and software, and much more. This software ensures instant response to scanner errors and timely alerts when consumables are running low.
PaperStream IP – high quality image processing
Built on TWAIN / ISIS standards, PaperStream IP is the scanner driver for Fujitsu fi-series image scanners. With its advanced black and white and colour processing, a range of documents can be automatically and easily converted into image data suitable for complex post capture processing -producing for example highly accurate OCR results. High quality image data can be created without defining scanner settings in advance, as PaperStream IP will aim to optimise this automatically for every sheet.
PaperStream Capture – enhanced batch scanning
PaperStream Capture enhances the data capture process from adjusting scanning settings to performing batch scanning, verifying data and releasing to directories, repositories or subsequent process routines. Users can complete data capture tasks easily with the extremely user-friendly graphical user interface (GUI). Moving scanned batches into a queue for later retrieval is possible as well.
Seamless linkage with PaperStream IP provides for high quality image processing and simplified batch scanning operation at the same time.
