磁盘驱动器
| 单磁道搜索时间（读/写） |
0.2 ms |
| 读取搜索 |
4 ms |
| 平均等待时间 |
2.99 ms |
| 写入搜索 |
4.5 ms |
| 硬盘尺寸 |
2.5 " |
| 传动装置，缓冲区大小 |
16 MB |
| 每扇面字节数 |
512 |
| 硬盘接口传输速率 |
3 Gbit/s |
| 硬盘容量 |
147 GB |
| 磁柱 |
2 |
| 硬盘转速 |
10000 RPM |
| 组件应用 |
Server/workstation |
| 硬盘头数量 |
4 |
环境条件
| 非运行高度 |
0 - 12192 m |
| 工作高度 |
0 - 3048 m |
| 非操作性冲击 |
400 G |

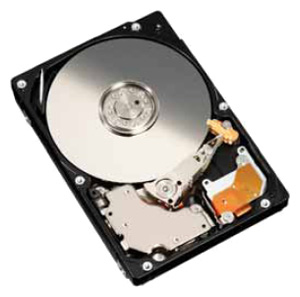

MBB2147 SAS - MBB2147RC hard disk drive 147 GB/ 10000 rpm/ 2.5"/ SAS
With more than 35 years of experience in hard disk drive technology, Fujitsu continues to deliver state-of the-art products for your most demanding enterprise applications. Case in point: Our top-of-the-line 2.5-inch SAS enterprise hard disk drives.
Enabling point-to-point connections, Fujitsu SAS hard disk drives help enterprises develop new solutions and maintain flexibility. These 2.5-inch HDDs offer up to 147GB(1) of storage and 10K RPM spindle speed — ideal for high-end, mission-critical applications residing on database servers, storage arrays, and NAS and SAN systems.
Seventy percent smaller than conventional 3.5-inch enterprise drives, a greater number of 2.5-inch SAS drives can be installed in the same space, resulting in improved input-output (I/O) performance. Additionally, lower power consumption per drive and smaller form factor reduces system cooling requirements.
The 3Gb/sec SAS interface improves system performance while dramatically reducing the cabling footprint, resulting in better system heat dissipation.
State-of-the-art hard disk drives for your most demanding enterprise applications.
- 2.5-inch Enterprise Hard Disk Drives offer 10K RPM spindle speed and feature storage capacities up to 147GB(1).
- More performance per U — up to 24 2.5-inch HDDs in a 2U system.
- Mean-time-between-failure (MTBF) of 1,400,000 power-on hours.
- Best in Class power consumption at idle vs. competitive 2.5-inch 10K SAS HDDs.
- Ideal for mission critical server and storage system applications.
