存储介质
| 硬盘接口 |
Serial Attached SCSI (SAS) |
| 热插拔 |
Y |
| 硬盘尺寸 |
2.5 " |
处理器
| 处理器支持最大内存 |
144 GB |
| 处理器频率 |
2 GHz |
| 步进 |
D0 |
| 处理器系统类型 |
DP |
| 处理器运行模式 |
64-bit |
| 可选用的嵌入式选项 |
Y |
| FSB奇偶校验 |
N |
| 无冲突处理器 |
N |
| 物理地址扩展（PAE） |
Y |
| 核心的处理器数量 |
4 |
| 总线频率 |
15 |
| 处理器支持内存通道 |
Triple |
| 处理器支持内存带宽（最大值） |
19.2 GB/s |
| 处理器支持显存频率 |
800 MHz |
| 处理器高速缓存类型 |
Smart Cache |
| 处理器代码 |
SLBF9 |
| 实体位址扩充（PAE） |
40 bit |
| 热监测技术 |
N |
| 闲置状态 |
Y |
| 散热设计功耗 (TDP) |
80 W |
| 处理器封装尺寸 |
42.5 mm |
| 执行禁止位 |
Y |
| QPI链接数量 |
2 |
| 处理器高速缓存 |
4 MB |
| 处理器安装数量 |
1 |
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
2 |
| 处理器光刻 |
45 nm |
| 总线类型 |
QPI |
| 处理器支持内存类型 |
DDR3-SDRAM |
| 处理器支持 ECC 功能 |
Y |
| 外壳温度 |
76 °C |
处理器的特殊功能
| 英特尔®MID清晰视频技术 |
N |
| 英特尔® 我的WiFi技术 |
N |
| 英特尔® 增强暂停状态 |
Y |
| 英特尔®超线程技术 |
N |
| 英特尔® 防盗技术 |
N |
| 英特尔®智能高速缓存 |
Y |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
Y |
| CPU配置（最大） |
2 |
| 英特尔® 双显示功能技术 |
N |
| 英特尔® 清晰视频技术 |
N |
| 英特尔®64 |
Y |
| 英特尔®Turbo Boost技术 |
N |
| 英特尔® 内线™ |
N |
| 英特尔®快速同步视频技术 |
N |
| Processor ARK ID |
40711 |
| 英特尔®虚拟化技术（VT -x） |
Y |
| 英特尔®可信执行技术 |
N |
| 英特尔® Flex内存访问 |
N |
| 英特尔® 快速内存访问 |
N |
| 英特尔®快速存储技术 |
N |
| 英特尔®清晰视频高清技术 |
N |
| 英特尔®无线显示(WiDi)技术 |
N |
| 英特尔®基于需求开关 |
Y |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔® FDI技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 英特尔®vPro™ 技术 |
N |
内存参数
| 最大内部存储 |
96 GB |
| 内存插槽数量 |
12 |
| 内置存储器 |
2 GB |
| 内存类型 |
DDR3-SDRAM |
| 内存时钟速度 |
800 MHz |
其他功能
| Mac兼容性 |
N |
| CD读取速度 |
24 x |
| 声压排放 |
49 dB |
| 光盘数量 |
6 discs |
设计
| 光驱类型 |
DVD Super Multi |
| 机箱板型 |
Rack (1U) |
扩展槽
| PCI Express × 4插槽 |
1 |
| PCI Express x8插槽 |
2 |
另外
| 主板晶片 |
Intel 5500 |
| InTru™3D技术 |
N |
| 英特尔®AES新指令 |
N |
| 系统总线 |
4.8 GT/s |
| 以太网路(RJ-45)连接接口数量 |
3 |

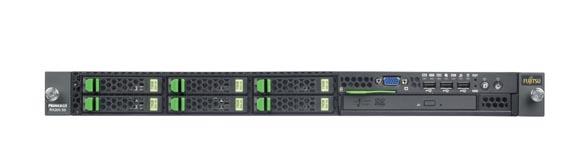

PRIMERGY RX200 S5, Rack 1U, Intel Xeon E5504 (2.26GHz, 4MB, 4.80GT/s), 2GB 800MHz DDR3 RAM, Gigabit Ethernet, no HDD, DVD Super Multi
RX200 – maximum productivity @ highest efficiency
Get more for less with regard to energy efficiency in data centers: more performance, enhanced extendibility and reliability combined with a comprehensively improved ratio of performance to power – offered now by the new RX200 requiring only 1 U rack space.
RX200 solves these burning issues: energy consumption and ventilation in data centers. Its innovative PRIMERGY Cool-safe™ system design provides the right answers. Hot-pluggable, redundant power supply units with increased 89% efficiency ensure efficient energy utilization. Load dependant, the sensor-controlled, hot-pluggable and redundant fans serve to maintain an optimal temperature in the server at all times; all supported by an innovative, extremely air-permeable honeycomb design and barrier-free, internal air-flow channels. Result: a sustainable high server performance, long life components and fewer data center cooling requirements. The integrated ServerView Power Management enables the monitoring and active planning of maximum consumption loads, thus ensuring cost efficiency. Cool-safe™ provides the security for maximum utilization of the new Intel® Xeon® Dual-Core, Quad-Core and Turbo-Quad-Core processor generation’s full performance and the server’s high capacity memory and hard disk configurations.
Key features
-EPA compliant, highly efficient power supply units; Sensor-controlled fan management; Power consumption management.
-Memory mirroring and sparing option; Hot-plug redundant power supplies and fans, hot-plug hard disks….
-Integrated iRMC S2 (Remote Management Controller) plus Advanced Pack
Modular RAID for levels 0, 1, 5, 6; Individual service packages;
-Dual-, Quad- and Turbo Quad-Core Intel® Xeon® 5500 series up to 8 MB TLC; Up to 96 GB state-of-the-art DDR3 main memory; 2 free PCIe Gen2 Slots, doubled I/O throughput, 2 x 1 Gb Ethernet LAN with TCP/IP accelerator; Up to 8 x 2.5 hot-plug SAS and SATA hard disks in 1U;
Certification for Hyper-V, VMware, Xen Hypervisor.
-ServerView Suite - Proven tools for the efficient management of physical and virtual resources throughout the entire lifecycle: perfect installation - stable operations – secure updates - exact (remote) maintenance – easy integration in specific corporate management solutions.
Benefits
-High performance for efficient energy utilization; Fan management as required saving energy and reducing noise levels; Individually definable power consumption limits.
-High availability and reliability; Security level for each application scenario; Permanently high performance available, longer.
-lifespan for components used, optimal performance per watt ratio; Easy, fast service access from anywhere ensuring reliable operations; Low-priced, powerful data security; Tailor-made service for the respective requirements.
-More virtual machines und applications can be used on one server;
Higher application loads and extended usage options; Doubled I/O bandwidth so that SAN and network loads achieve optimal throughput; More than 2 TB of low-priced internal hard disk storage; Problem-free usage for market-relevant virtualization solutions.
-The key to high-level IT benefits and reduced operational and service costs: greater reliability, lower downtimes and improved service quality.
