扩展槽
| PCI Express × 1插槽 |
1 |
| PCI Express x16 插槽 |
1 |
端口 & 界面
| DVI端口 |
Y |
| Line-in |
Y |
| PS/2连接埠数量 |
2 |
| Line-out |
Y |
| 麦克风/音频输入插孔 |
Y |
| DisplayPort 数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| VGA（D-SUB）端口数量 |
1 |
内存参数
| 内存时钟速度 |
1600 MHz |
| 内存类型 |
DDR3-SDRAM |
| 內存插槽数量 |
1 |
| 内存插槽类型 |
DIMM |
| 最大内部存储 |
8 GB |
| 内置存储器 |
4 GB |
存储介质
| 总存储容量 |
500 GB |
| 存储介质类型 |
HDD |
| 硬盘接口 |
Serial ATA III |
| 硬盘容量 |
500 GB |
处理器
| 处理器频率 |
2.7 GHz |
| 核心的处理器数量 |
2 |
| 处理器高速缓存 |
4 MB |
联网
| 以太网的数据传输率 |
10, 1000, 100 Mbit/s |
另外
| 主板晶片 |
Intel Q87 |
| 图形适配器 |
HD Graphics 4600 |
| 以太网连接器 |
Y |
| 系统总线 |
5 GT/s |
| RS-232接口 |
2 |
| 以太网路(RJ-45)连接接口数量 |
1 |
Intel Core i5-4570TE (4M Cache, up to 3.30 GHz), 4GB RAM, 500GB HDD, DVD, Gigabit Ethernet, Windows 10 Pro

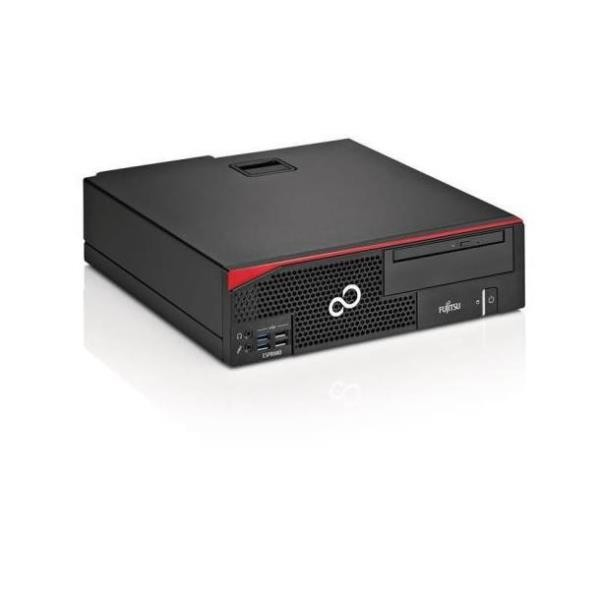

The Fujitsu TeamPoS 7000 S-Series modular controller incorporates Intel 4th generation Core technology to support the most demanding retail applications. With a volume of just 7 litres (1.85 gallons), it can be simply deployed in the most challenging environments. Enhanced
connectivity, with powered USB and Serial ports, enables a full complement of retail peripherals to be connected and powered directly from the unit, removing the need for external power bricks and simplifying deployment and improving reliability. With its 90%+ efficient power supply, energy costs and heat output are minimized to deliver a low TCO and lengthen service life.
<b>Compact design with horizontal or vertical deployment</b>
- Simple installation in the most constrained of environments. Can replace existing equipment
without furniture changes. Provides maximum space at counter for other equipment, or display material
<b>Intel 4th Generation Core technology from Celeron® to i5 vPro</b>
Future proof processing power that scales across the organization. Latest AMT remote
management technology reduces cost of ownership and helps increase availability
<b>Great connectivity with full complement of retail ports and integrated dual storage drives</b>
Enhanced retail connectivity removes need for external power bricks and enables operation from single power outlet. This reduces installation costs, lowers energy consumption and improves reliability. Dual SSD / HDD storage drives with RAID delivers high levels of data protection
<b>90% efficiency integrated power supply</b>
Reduces energy costs and carbon footprint. Lower heat output reduces store cooling costs and improves reliability. Patented power management controls processing power during peak
peripheral demand to ensure reliable operation
<b>Made in Germany in state of the art automated factory</b>
Quality manufacturing and engineering processes, with selected long-life components, ensures trouble-free 24x7 operation in retail environment
