存储介质
| 传动装置，缓冲区大小 |
32 MB |
| 支持最大存储容量 |
8 TB |
| 硬盘转速 |
7200 RPM |
| 安装存储总容量 |
4000 GB |
| 可支持的存储驱动器数量 |
4 |

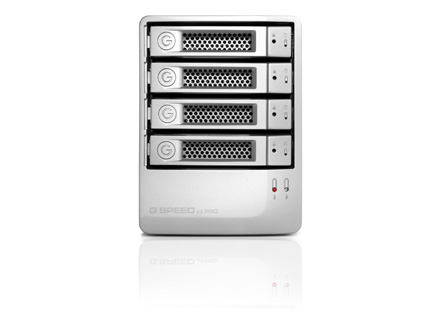

G-SPEED ES PRO, 4000GB, 8.89 cm (3.5 ") , 7200RPM, 12Gbit mini-SAS
High-Performance, Fail-Safe RAID Solutions for HD/2K Production
G-SPEED eS PRO provides professional content creators better than Fibre-Channel performance for demanding post production applications at a fraction of the cost. The compact and whisper quiet
G-SPEED eS PRO features mini- SAS connectivity to a high performance PCIe x8 RAID controller that supports RAID levels 0,1,3,5 and RAID 6. A single G-SPEED eS PRO enclosure with four hot- swappable Hitachi Ultrastar 7200 RPM SATA drives supports real-time playback of 10-bit uncompressed 1080/60i. Two G-SPEED eS Pro units in protected mode (RAID 5) support two simultaneous streams of uncompressed 10-bit HD or a single 2K DPX sequence. G-SPEED eS PRO is simply the most cost-effective desktop RAID storage solution designed specifically for high-end post.
When used with the G-Tech PCIe x8 RAID controller, G-SPEED eS PRO can easily be configured as a RAID 0, 1, 3, 5 or 6. This flexibility enables the system to be tuned to the required level of performance and fault-tolerance necessary to support your application.
The 2-port G-Tech PCIe 8x RAID controller has a built-in Web GUI that is accessed via any local internet browser. This simple GUI is used to configure and monitor the RAID system. Many aspects of the system are monitored and in the event of a problem can send an email message to alerting you of the issue.
Kit Contents:
- G-SPEED eS PRO Storage Unit
- (4) Removable Disk Modules
- AC Cables
- 2 meter locking mini-SAS Cable
- OPTIONAL 2-Port mini-SAS PCIe Adapter with IOP RAID Engine
- CD Manual & Product Drivers
