处理器
| 处理器频率 |
550 MHz |
| 图形适配器随机存取存储器数字/模拟转换器 |
400 MHz |
| 图形处理器系列 |
NVIDIA |
| CUDA |
Y |
内存参数
| 图形适配器内存类型 |
GDDR3 |
| 内存带宽（最大） |
17.1 GB/s |
| 数据宽度 |
128 bit |
| 内存时钟速度 |
535 MHz |
| 独立显卡适配器內存 |
1 GB |
性能
| DirectX版本 |
10.1 |
| OpenGL版本 |
3.2 |
| NVIDIA 3D Vision |
N |
| 最高着色模型版本 |
4.1 |
| PhysX |
Y |
| 集成电视调谐器 |
N |
| HDCP |
Y |
端口 & 界面
| 接口类型 |
PCI Express 2.0 |
| DVI-I接口数量 |
1 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
另外
| 图形处理器 |
GeForce GT 240 |
| 双dvi（互应式数字视频） |
N |

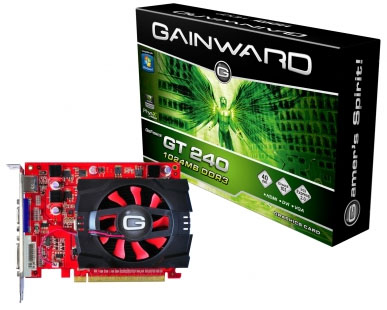

GeForce GT240, 1024 DDR32, 535MHz, PCI-Express 2.0, DVI/VGA/HDMI, DirectX 10.1
- Superior Hardware Design
- Gainward’s award winning High- Performance/ Wide-BandwidthTM hardware design powered by NVIDIA’s GeForceTM GT 240 GPU integrating 1024MB/128bits highspeed DDR3 memory which offers
enhanced, leading-edge performance for the 3D enthusiasts.
- 550MHz core clock and 535MHz (DDR 1070) memory clock speed.
- High performance fan cooling.
- Provides DVI-I (Dual-link DVI, support up to 2560x1600), HDMI and VGA (D-sub 15) connectors.
- Full integrated support for HDMI 1.3a including xvYCC, Deep color and 7.1 digital surround sound.
- Supports two monitors simultaneously, enabled by the NVIDIA nView™ Multi-Display Technology for office applications, 3D gaming and professional applications such as CAD, DTP, animation or video editing. NVIDIA nView™ allows end-users to select any combination of multiple displays.
- Includes Gainward’s award winning EXPERTool™ tuning utility for customized performance enhancements and efficient desktop management.
- NVIDIA unified architecture: Fully unified shader core dynamically allocates processing power to geometry, vertex, physics, or pixel shading operations, delivering up to 2x the gaming performance of prior generation GPUs.
- NVIDIA CUDA Technology: CUDA technology unlocks the power of the GPU’s processor cores to accelerate the most demanding system tasks – such as video transcoding – delivering incredible
performance improvement over traditional CPUs.
- Microsoft Windows 7 Support: Windows 7 is the next generation operating system that will mark a dramatic improvement in the way the OS takes advantage of the GPU to provide a more compelling user experience. By taking advantage of the GPU for both graphics and computing, Windows 7 will not only make today’s PCs more visual and more interactive but also ensure that they have the speed and responsiveness customers want.
- DirectCompute Support: Full support for DirectCompute, Microsoft’s GPU computing API.
- NVIDIA PhysX Technology: Enabling a totally new class of physical gaming interaction for a more dynamic and realistic experience with GeForce.
- PureVideoTM HD technology - The combination of high-definition video decode acceleration and post-processing that delivers unprecedented picture clarity, smooth video, accurate colour, and precise image scaling for movies and video.
- Hardware Decode Acceleration: Provides ultra-smooth playback of H.264, VC-1, WMV, DivX, PEG-2 and MPEG4 HD and SD movies without the need for a dual or quad-core CPU.
- NVIDIA GeForce Unified Driver Architecture (UDA): Delivers a proven record of compatibility, reliability, and stability with the widest range of games and applications. NVIDIA GeForce drivers provide the best out-of-box experience and deliver continuous performance and feature updates over the life of NVIDIA GeForce GPU.
- PCI Express 2.0 Support: Designed for the new PCI Express 2.0 bus architecture, offering the highest data transfer speeds for the most bandwidthhungry games and 3D applications, while
maintaining backwards compatibility with existing PCI Express motherboards for the broadest support.
- GigaThread Technology: Massively multithreaded architecture supports thousands of
independent, simultaneous threads, providing extreme processing efficiency in advanced,
next generation shader programs.
- NVIDIA Lumenex Engine: Delivers stunning image quality and floating point accuracy at ultra-fast frame rates: 16x Anti-aliasing: Lightning fast, high-quality anti-aliasing at up to 16x sample rates
obliterates jagged edges. 128-bit floating point High Dynamic- Range (HDR) Lighting: Twice the precision of prior generations for incredibly realistic lighting effects – now with support for antialiasing.
- OpenCL Support: Full support for OpenCL GPU computing API.
- OpenGL 3.2 Optimizations and Support: Ensures top-notch compatibility and performance for OpenGL applications.
- Dual-link HDCP Capable: Designed to meet the output protection management (HDCP)
and security specifications of the Blu-ray Disc formats, allowing the playback of encrypted
movie content on PCs when connected to HDCP-compliant displays.
