处理器
| 处理器频率 |
880 MHz |
| 图形适配器随机存取存储器数字/模拟转换器 |
400 MHz |
| 图形处理器系列 |
NVIDIA |
| CUDA |
Y |
内存参数
| 图形适配器内存类型 |
GDDR5 |
| 内存带宽（最大） |
62.4 GB/s |
| 数据宽度 |
128 bit |
| 内存时钟速度 |
3900 MHz |
| 独立显卡适配器內存 |
1 GB |
性能
| DirectX版本 |
11 |
| OpenGL版本 |
4.0 |
| NVIDIA 3D Vision |
Y |
| 最高着色模型版本 |
5.0 |
| PhysX |
Y |
| 集成电视调谐器 |
N |
| Full HD |
Y |
| HDCP |
Y |
端口 & 界面
| 接口类型 |
PCI Express 2.0 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
系统要求
| 最低内存 |
2048 MB |
| 最低处理器 |
Intel C2D, AMD Athlon 64 X2 |

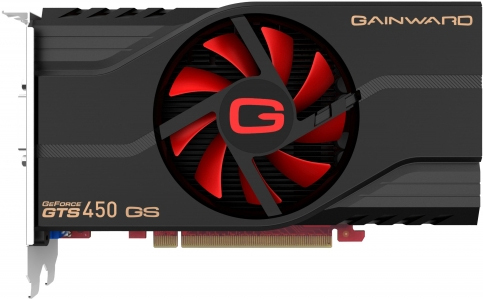

GeForce GTS 450 GS, 1024MB, GDDR5, 880MHz, PCI-E, DirectX 11, 2560 x 1600
Superior Hardware Design
Gainward’s award winning High-Performance/Wide-BandwidthTM hardware design powered
by NVIDIA’s GeForceTM GTS 450 GPU (40nm) integrating 1024MB/128bits high-speed GDDR5 memory which offers enhanced, leading-edge performance for the 3D enthusiasts.
880MHz core clock, 1950MHz (DDR 3900) memory clock.
High performance 2-slot cooler.
Dual DVI (resolution support up to 2560x1600), VGA and HDMI support.
Full integrated support for HDMI 1.4a including xvYCC, Deep color and 7.1 digital surround sound.
Dual-link HDCP Capable: Designed to meet the output protection management (HDCP) and security specifications of the Blu-ray Disc formats, allowing the playback of encrypted movie content on PCs when connected to HDCP-compliant displays.
Supports two monitors simultaneously, enabled by the NVIDIA nView™ Multi-Display Technology for office applications, 3D gaming and professional applications such as CAD, DTP, animation or video
editing. NVIDIA nView™ allows end-users to select any combination of multiple displays.
NVIDIA GeForceTM GTS 450
Microsoft DirectX 11 Support: DirectX 11 GPU with Shader Model 5.0 support designed for ultra high performance in the new API’s key graphics feature, GPUaccelerated tessellation.
NVIDIA PhysXTM: Full support for NVIDIA PhysX technology, enabling a totally new class of physical gaming interaction for a more dynamic and realistic experience with GeForce.
NVIDIA 3D VisionTM Ready: GeForce GPU support for NVIDIA 3D Vision, bringing a fully immersive stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. In addition, you can watch 3D movies and 3D digital photographs in eye popping, crystal-clear quality.
NVIDIA CUDATM Technology: CUDA technology unlocks the power of the GPU’s processor cores to accelerate the most demanding system tasks such as video transcoding, physics simulation, ray tracing and more, delivering incredible performance over traditional CPUs.
Microsoft Windows 7 Support: Windows 7 is the next generation operating system that will mark a dramatic improvement in the way the OS takes advantage of the GPU to provide a more compelling user experience.
