技术细节
Full HD |
Y |
视频接口类型 |
HDMI |
HDMI端口数量 |
4 |
HDCP |
Y |
2 x HDMI In, 2 x HDMI Out, 225 MHz, 1080p, 3DTV, HDCP, 10 W
<b>2 Sources + 2 Displays + HDMI 1.3 Connectivity = Greater Integration Options</b>

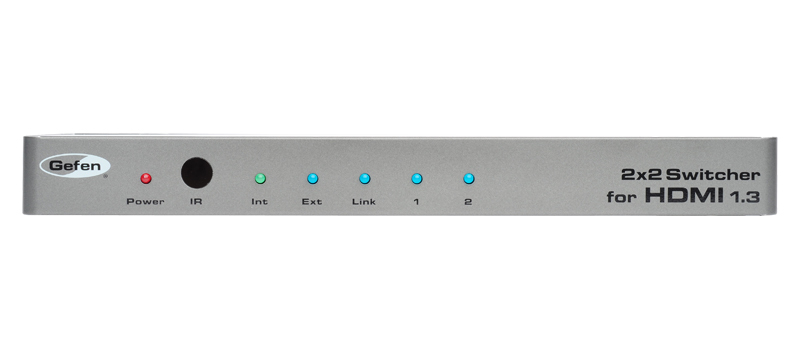

The Gefen 2x2 Switcher for HDMI 1.3 is equipped with two HDMI inputs and two HDMI outputs. Two inputs accommodate the simultaneous connection of up to two high definition video sources, such as satellite systems and Blu-ray players. Two outputs send the high definition audio/video signals to up to two HDTV displays. Switching is done via the included IR remote.
<b>How It Works</b>
Connect all your sources to the product's inputs. Then connect up to two displays on the output ports. Once the sources, the switcher and the displays are powered and connected, you then select which source you want to view using the IR remote.
Supported HDMI 1.3 Features:
- 225 MHz (up to 12 bit YUV 444 @ 1080p)
- Deep Color
- Color Space Conversion
- Dolby TrueHD and DTS-HD Master Audio
- Lip-Sync
- CEC Pass-Through
Features:
- Switch easily between any two HDMI / DVI sources
- Simultaneously displays a single Hi-Def source on up to two (2) HDTV displays without signal loss
- Maintains sharp HDTV resolutions up to 1080p Full HD and 2K
- 3DTV Pass-Through
- EDID Management for rapid integration of sources and display devices.
- Locking HDMI connectors
- Supports the use of DVI sources and DVI displays with an HDMI-to-DVI converter cable or adapter
- HDMI and HDCP compliant
