端口 & 界面
| RJ-45输入端口 |
1 |
| RJ-45输出端口 |
1 |
| DVI输入端口 |
1 |
| DVI输出端口 |
1 |
| DC-IN插口 |
Y |
重量和尺寸
| 发射器尺寸（宽x深x高） |
110 x 86 x 26 mm |
| 接收器尺寸（宽 x 深 x 高） |
110 x 86 x 26 mm |
技术细节
| 可支持的电缆类型 |
Cat5, Cat5e, Cat6a |
| 最大传输距离 |
70 m |
| 无线局域网连接 |
N |
| 类型 |
AV transmitter & receiver |
Sender & Receiver, DVI-I, 230 ft (70m) Max, 1920 x 1200 Max, 165 MHz, CAT-6A/CAT-5

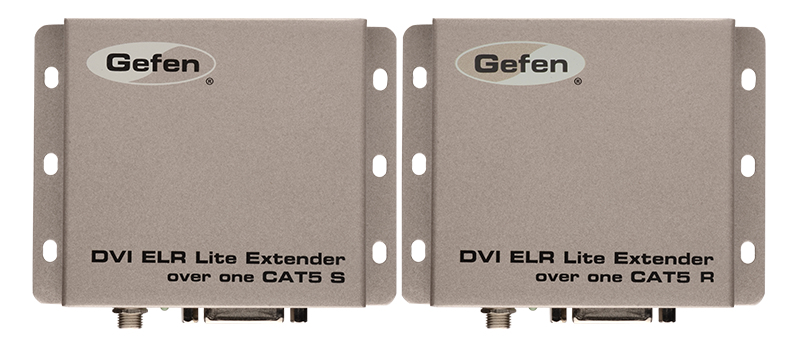

The DVI ELR Lite Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A cable, and up to 200 feet (60 meters) over one CAT-5e. This product is HDCP compliant. It uses Gefen's ELR Lite implementation of HDBaseT Lite technology, allowing the DVI source to be extended over a single CAT-5e or CAT-6 cable, reducing cable costs and facilitating simple and effective installation.
How It Works
Connect the included DVI cable to the computer or other DVI source and the Sender unit. Connect the Receiver unit to a Hi-Def display with another DVI cable. Use up to 230 feet (70m) of CAT-6A cable or up to 200 feet (60 meters) of CAT-5e to connect the Sender to the Receiver unit. Connect the included locking power supplies to the Sender unit and the Receiver units and plug the power supplies to available electrical outlets. Power On all connected source and display equipment.
Features
- Extends DVI up to 230 feet (70 meters) over one CAT-6A cable
- Extends DVI up to 200 feet (60 meters) over one CAT-5e cable
- Supports resolutions up to 1920 x 1200 (WUXGA)
- EDID management for rapid integration of source and display
- HDCP compliant
- Locking power supplies
- Surface-mountable
Package Includes:
- (1) DVI ELR Lite Extender over one CAT5 - Sender Unit (EXT-DVI-1CAT5-SRS)
- (1) DVI ELR Lite Extender over one CAT5 - Receiver Unit (EXT-DVI-1CAT5-SRR)
- (1) 6 ft. Dual Link DVI Copper Cable (CAB-DVIC-DLN-06MM)
- (2) 5V DC Locking Power Supplies (EXT-PS526AIP-LP)
- (1) Quick-Start Guide (QSG-DVI-1CAT5-SR)
