接收器
接收机本地键盘/鼠标端口类型 |
USB |
接收机本地视频端口类型 |
DVI-D |
能量控制
功耗最大值(发射器) |
13 W |
功耗最大值(接收器) |
13 W |
电源转换器输出电压 |
48 V |
重量和尺寸
接收器的重量 |
470 g |
发射器的宽度 |
214 mm |
发射器的高度 |
43 mm |
发射机深度 |
110 mm |
接收器的宽度 |
214 mm |
发射器重量 |
470 g |
接收器深度 |
110 mm |
接收器高度 |
43 mm |
产品特点
类型 |
Transmitter & Receiver |
最大传输距离 |
150 m |
最大数字分辨率 |
4096 x 2160 pixels |

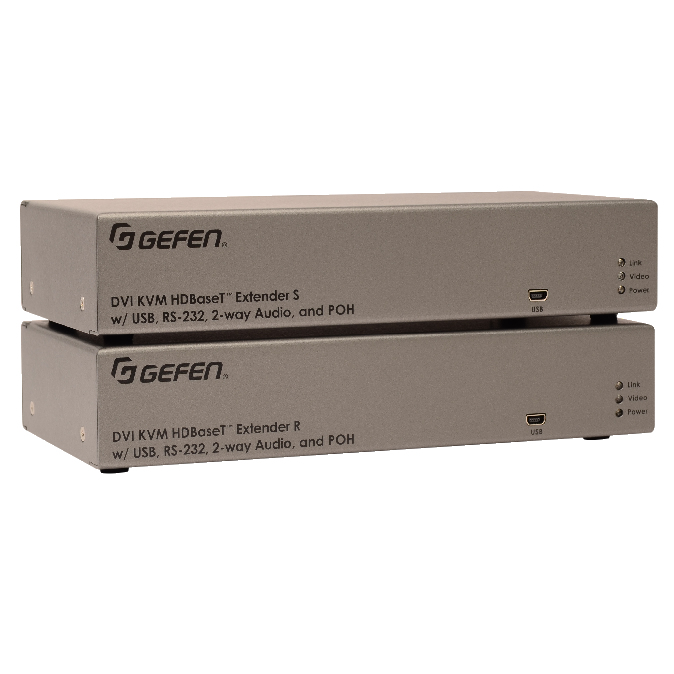

DVI KVM HDBaseT 2.0 Extender w / USB, RS-232, 2-way IR, 2-way Audio, POH
The EXT-DVIKA-HBT2 uses Gefen’s implementation of the latest HDBaseT™ 2.0 technology to extend DVI over a single CAT-5e cable, up to 495 feet (150 meters). The new HDBaseT™ 2.0 Colligo™ platform provides additional features such as USB and 2-way audio extension, and ensures an even more robust and resilient connection than the industry standard HDBaseT™. Resolutions up to 1080p and 1920 x 1200 (WUXGA) are supported. HDMI resolutions up to 4K DCI-Cinema(4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) along with 7.1 channels of LPCM and HBR (High Bit Rate) lossless digital audio are also supported when using Gefen DVI to HDMI cables. Supported HBR formats include Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™. USB, RS-232, and 2-way L/R analog audio can be extended between the Sender and the Receiver to accommodate a complete workstation including keyboard, mouse, select USB periperals, microphone, headphones, and powered speakers. POH (Power Over HDBaseT™) technology provides power from the Receiver to the Sender unit, using the same CAT-5 cable that extends the DVI, audio, and control signals. Only the Receiver unit needs an external power supply. The POH standard ensures compatibility with other POH class-compliant devices. The Gefen Syner-G™ software with its powerful EDID Management capabilities speeds up configuration, performs real-time performance analysis via Link Monitoring, and simplifies in-field firmware updates. 1U tall, half-rack-width enclosures can be surface-mounted, installed in a standard 19-inch rack using the EXT-RACK-1U-GRY rack tray, or be placed on a shelf.
