Gefen Power Rack 54 1U Black,Blue power distribution unit (PDU)

24VDC In, 4 x 5VDC Out, LEDs, 1U Manage 5-Volt Power Distribution with a Rackmount solution.

The Gefen Power Rack 54 is the perfect solution for cleaning up a messy rack space filled with individual power supply cables from several 5-Volt A/V devices. The Power Rack 54 eliminates the need for multiple power supplies, centralizes power distribution, and saves space.

How It Works

The Gefen Power Rack 54 occupies a single 1U rack space. The 24-Volt power supply of the Power Rack 54 is connected to a wall outlet or power strip and a red LED appears on the front panel, indicating successful power-on. Power cables carrying 5V DC run from the rear of the Power Rack to the power input jack of each device.

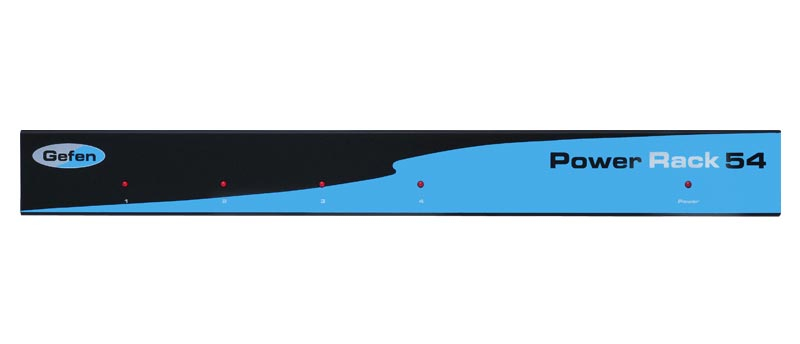

On the front side of the Power Rack 54, there are 1 Power LED (red) and 4x Dual-State (green/red) LEDs, one for each power feed that is connected to an external device. A Green LED color indicates normal power output at 5V ±0.3V. If the output voltage of this feed is below or above this voltage range, the dual-state LED turns red to indicate an error condition.
