重量和尺寸
| 风扇尺寸（宽×深×高） |
60 x 60 x 25 mm |
| 风扇重量 |
60 g |
性能
| 脉冲宽度调制 (PWM) 支持 |
Y |
| 最大气流 |
21.2 cfm |
| 防尘 |
Y |
| 最大空气压力 |
4.3 mmH2O |
| 噪音水平（高速） |
28 dB |
| 转速（最小） |
1200 RPM |
| 转速（最大） |
4000 RPM |
| 类型 |
Fan |
| 适用于 |
Computer case |
| 风扇直径 |
60 mm |

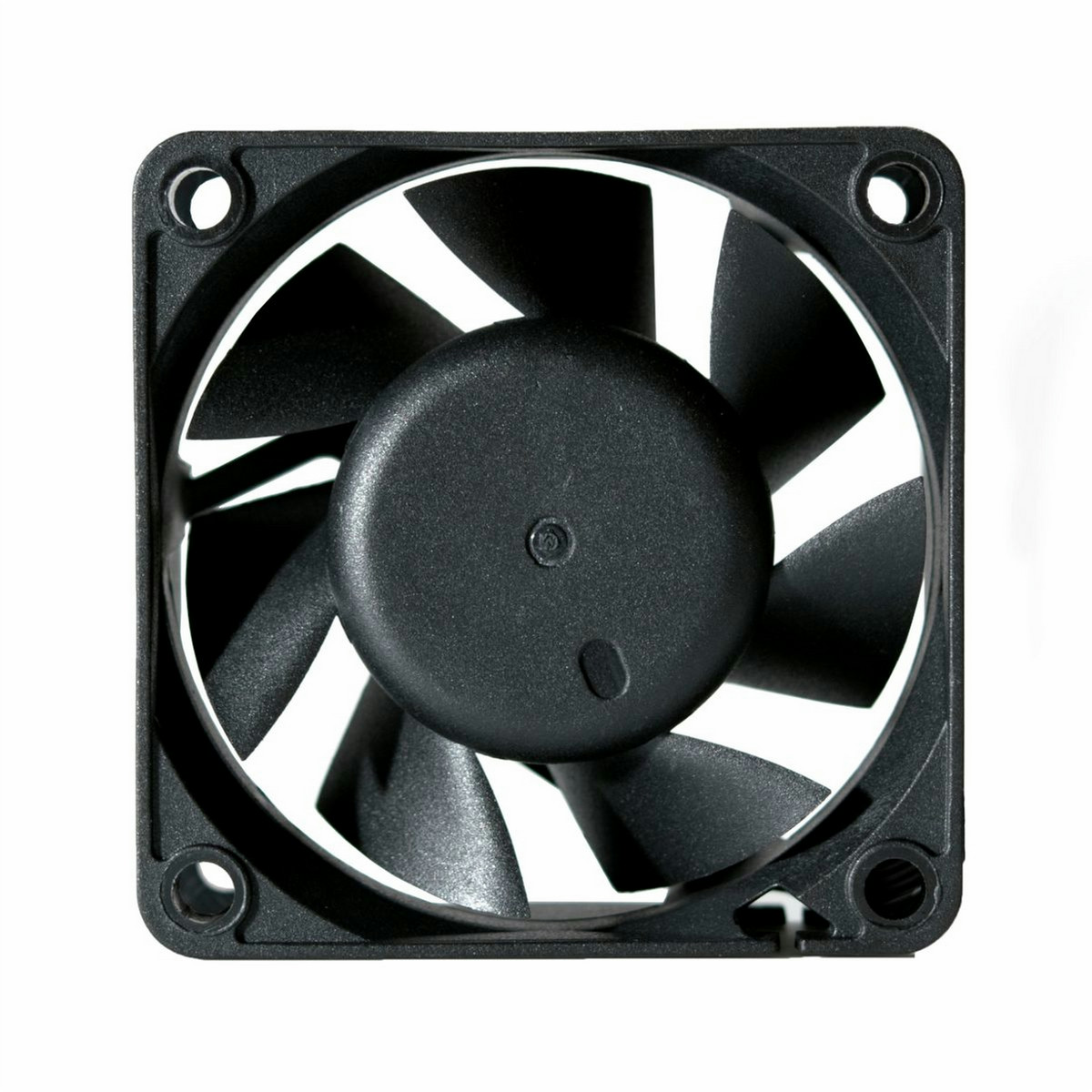

IPX 6 PWM, 1200-4000rpm, 4-pin, 0.1 A, 2.12 CFM, 12 V
- IP56 Water & Dust Proof
- Extra Long Lifetime
- Optimized Impeller
- Smart PWM Control
- High Airflow
- 5 Years Warranty
High Reliability In Extreme Conditions
The IPX Industrial Fan series provides protection against harmful deposits of dust and water from harsh environments. It is IP56 rated and allows continuous operation in extreme conditions and high humidity industrial environments. The IPX Industrial Fan series is now including:
– IPX 4 PWM (40mm fan with PWM)
– IPX 6 PWM (60mm fan with PWM)
– IPX 8 PWM (80mm fan with PWM)
The IPX 4 PWM, IPX 6 PWM and IPX 8 PWM feature precisely balanced impeller which guarantees stable operation even at the highest rotation speeds possible. The IPX 4 PWM, IPX 6 PWM and IPX 8 PWM also integrate ultra-durable mechanics, a double ball-bearing configuration from the renowned Japanese manufacturer NMB Tech. The new Smart PWM IC, designed specifically for the IPX Industrial Fan series, eliminates any clicking noise and controls fan speed according to heat-source load. The IPX 4 PWM, IPX 6 PWM and IPX 8 PWM have comprehensively optimized blades, the result of software simulations and real-prototype test which provide higher performance and dramatically improved airflow distribution without increasing noise level.
The IPX Industrial Fan series conforms to RoHS, WEEE, IP56 and carries a 5-year warranty.
