性能
最大气流 |
67.14 cfm |
散热管数量 |
5 |
最大空气压力 |
1.3 mmH2O |
噪音水平(高速) |
26 dB |
转速(最大) |
2000 RPM |
类型 |
Cooler |
适用于 |
Video card |
风扇数量 |
2 fan(s) |
风扇直径 |
92 mm |
重量和尺寸
散热片尺寸(宽x深x高) |
95 x 216 x 52 mm |
2 x 92 mm, 67.14 cfm, 200 mm, 2000 RPM, 26 dBA, 465 g
Features:
- 5 High Performance Power Heatpipes
- Premium Aluminum Fins & Pure Copper Base
- 2 x 92mm S-Shape Fans for 20% additional Air Flow
- Ball Bearing for Long Life Time
- CrossFire & SLI Compatible
Rev. 2 ICY VISION (GC-VGA02-01)
Compatible to:*
AMD™: HD4850, HD4870, HD4890, HD5830, HD5850, HD5870, HD6850, HD6870, HD6950*, HD6970*, HD7850, 7870, R9 270X, R9 290X, R9 290 and R9 390/X
Nvidia™: 9800GT, 9800GTX, GTS250, GTX260, 275, 280, 285, GTS450, GTX 460, GTX465, GTX470, GTX480, GTX550TI, GTX560TI, GTX570, GTX580, Quadro 4000, GTX680, GTX Titan, GTX770 (by using stand-off), GTX 780 and Titan X
The compatibility list is based on AMD & Nvidia’s reference board layout ONLY. GELID Solutions holds no responsibility for incompatibility on non-standard cards. Please refer to the height restriction drawing. Installation manual for AMD and Nvidiacards to download.
Design Concept:

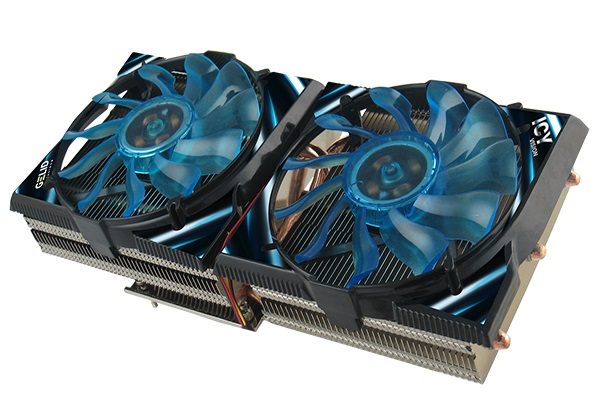

The “Rev. 2 ICY VISION” cooler contains 5 power heatpipes in a unique heatpipe constellation. The heatpipes are interlaced into 85 optimized high-quality Aluminium fins. Together with a flat stack fin soldered Copper base, they enable the most efficient heat transmission and dissipation from GPU core in its class. Besides the heatsink, two 92mm UV-reactive fans with 11 blades in S-shape generate 20% additonal air flow than traditional fans. The fan contains a high-quality ball bearing to ensure a longer lifetime in high temperature environments.
INCLUDING:
– More Heatsinks for Ram & VRM
– High Quality GC-2 Thermal Compound
– Case Fan cable to power supply or motherboard
This cooler is RoHS, WEEE compatible and has a warranty of 5 years.
