性能
最大气流 |
52.4 cfm |
处理器插座 |
Socket AM3, Socket AM2+, Socket FM2, Socket AM2, Socket FM1 |
最大空气压力 |
1.35 mmH2O |
噪音水平(低速) |
12 dB |
噪音水平(高速) |
25.4 dB |
转速(最小) |
750 RPM |
转速(最大) |
1600 RPM |
风扇直径 |
120 mm |
散热管数量 |
4 |
散热设计功耗 (TDP) |
136 W |
类型 |
Cooler |
适用于 |
Processor |
重量和尺寸
风扇尺寸(宽×深×高) |
120 x 120 x 15.8 mm |
120 mm, 52.4 cfm, 350 mm, 750 - 1600 RPM, 12 - 25.4 dBA, 352 g
Features:
- 4 Power Heatpipes
- Unique Heatsink Shape
- 4 Mounting Directions on AMD™ Socket
- 59mm Height
- Intelligent PWM Fan Control Curve
SlimHero (CC-Shero-01-A)
Applications:
Intel Socket 775, 1155, 1156, 1366, 1150 & 1151:
CPU: All Pentium D/ Pentium 4/ All Celeron D
All Pentium Dual-Core/ Extreme
All Core 2 Extreme/ Core 2 Quad/ Core 2 Duo
All Core i3, all Core i5, all Core i7 (LGA1155)
AMD Socket AM2/ AM2+/ AM3/ FM1 & FM2:
CPU: Athlon™ 64 X2 (AM2), Athlon™ 64 (AM2),
All Athlon™ II, Sempron™, All Phenom™, Phenom II™
All brands and trademarks are the property of their respective owners.

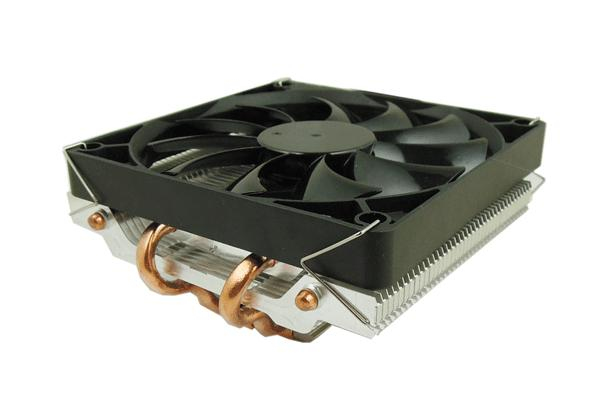

The SlimHero features 4 sintered power heatpipes with a silent and slim 120mm fan. The copper heatpipes ensure maximum heat transfer from CPU to the aluminum fins. The heatsink is built in a unique shape to lower the air flow resistance. The cooler can be mounted on each directions of the AMD™ socket.
The low profile cooler SlimHero is especially designed for compact PC cases where space can be the key problem. With a total height of 5.9 cm this cooler can fit almost all smaller cases and is able to cool up to 136W (TDP).
The heatsink is bundled with a silent and slim 120mm fan with high airflow. The fan comes with an intelligent PWM control which allows users to set the fan speed in their BIOS accordingly.
All brands and trademarks are the property of their respective owners.
Please check your motherboard with the restriction drawing of the cooler.
