超低音音箱
| 超重低音扬声器类型 |
Active subwoofer |
| Subwoofer driver diameter |
305 mm |
| 超重低音功率有效值 |
500 W |
| 超重低音频率范围 |
19 - 85 Hz |
| 超重低音喇叭敏感度 |
118 dB |
| 低音炮数量 |
2 |
| Subwoofer driver diameter (imperial) |
12 " |
重量和尺寸
| 超重低音扬声器宽度 |
803 mm |
| 超重低音炮重量 |
81000 g |
| 超重低音扬声器厚度 |
490 mm |
| 超重低音扬声器高度 |
755 mm |
118 dB, 500W, 19 Hz - 85 Hz, 2 x 12", 81 kg

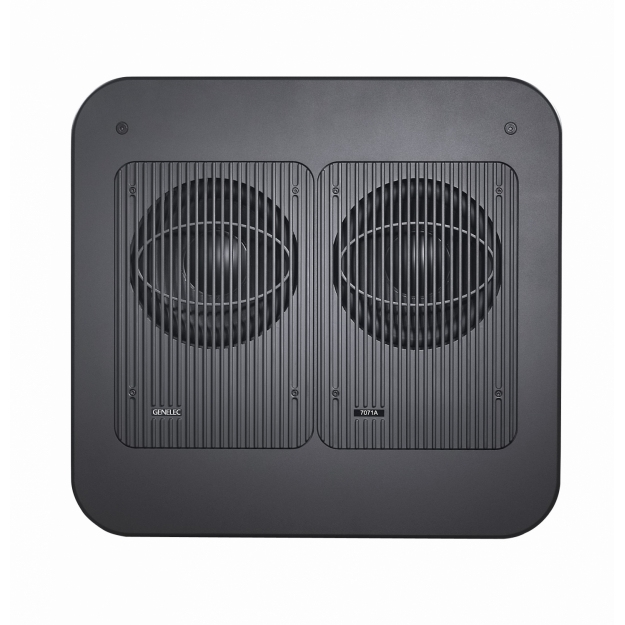

The dual 12" 7071A uses a large Genelec's patented Laminar Spiral Enclosure (LSE™) with a 19 Hz lower cut-off frequency, high sound pressure capability and very neutral reproduction characteristics. Its amplifier unit integrated into the cabinet contains active crossover filters, driver overload protection circuitry, power amplifier and complete bass management system. The built-in unit has six signal inputs and outputs, a summed signal output, an 85/120 Hz selectable low-pass LFE input and a 0 / +10dB LFE channel sensitivity switch.
The 7071A offers high SPL capacity for recording studios, mastering suites, post-production houses and broadcast facilities.
- Laminar Spiral Enclosure™
- Room Response Compensation
- Bass Management
- Protection Circuitry
- Optimized Amplifiers
- Active Crossovers
- Intelligent Signal Sensing™
