数据传输
| MAC 地址表 |
2000 entries |
| 存储转发 |
Y |
| 支持数据传输率 |
10/100/200Mbit/s |
| 最大数据传输率 |
0.2 Gbit/s |
端口 & 界面
| Express卡插槽 |
N |
| 基本交换 RJ-45 以太网端口数量 |
8 |
| DC-IN插口 |
Y |
其他功能
| 连通的液晶显示器 |
Y |
| 安装端口 |
8 |
| 液晶显示器功率 |
Y |
| 无线局域网连接 |
N |
| 网路功能 |
Ethernet, Fast Ethernet |
| 以太网的数据传输率 |
10, 100 Mbit/s |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 流量控制支持 |
Y |
| 全双工传输 |
Y |
| 10G支持 |
N |
Fast Ethernet 8 Ports Switch, Full duplex, 200Mbps, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, auto-MDI/MDI-X, flow control
- Complies with the IEEE 802.3 and IEEE 802.3u standards.
- Provides store-and-forward architecture.
- Supports full wire speed forwarding and filtering rates.
- Supports auto-MDI/MDI-X, full/half duplex modes and.
- auto-negotiation.
- Supports flow control and non-blocking architecture.
200Mbps Full Duplex Transmission

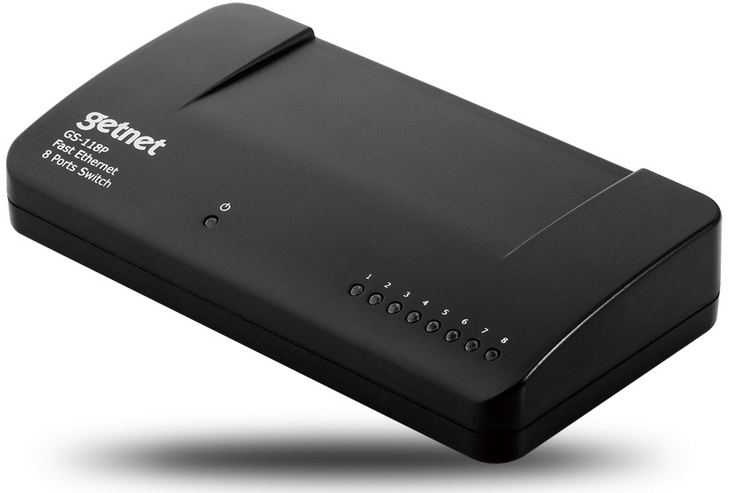

GetNet GS-118P is a high speed fast Ethernet switch for home and small business. GS-118P not only complies with IEEE 802.3/802.3u 10/100Mbps Ethernet standard but also supports full duplex transmission. The full duplex feature can double the network throughput on every port. It is used for high speed server or switch-to-switch connections. The maximum throughput of every port can reach up to 200Mbps.
Supports Wire-speed and Flow Control
The GetNet GS-118P built-in non-blocking and store-and-forward architecture feature your network with full-wire speed connections. It accommodates with flow control for full duplex mode and back pressure for half-duplex mode which ensure reliable data transfer and help to prevent data lost. Use GS-118P to create a high-speeds network and benefit from it’s ultimate performance and reliability.
Supports Auto-MDI/MDI-X and Auto Sensing
GS-118P supports PnP (plug and play) installation and auto-MDI/MDI-X function. You can connect GS-118P with computers or Ethernet devices without any configuration. You also can use either straight-through or cross-over Ethernet cable and combine 10 and 100Mbps devices into GS-118P. The switch will automatically detect the right cable and speed for your device.
Power Saving
With new generation power saving mode, GS-118P can reduce power consumption. It is the best solution for home and small business.
