内存参数
| 可支持内存时钟速度 |
1333, 1600 MHz |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存插槽类型 |
SO-DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
16 GB |
Motherboard
| 支持处理器频率（最大） |
3.9 GHz |
| 可支持处理器数量 |
1 |
扩展槽
| Mini PCI Express插槽 |
1 |
| PCI Express插槽版本 |
3.0 |
处理器
| 处理器加速频率 |
3.9 GHz |
| 处理器光刻 |
22 nm |
| 散热设计功耗 (TDP) |
65 W |
| 二级缓存 |
6 MB |
| 核心的处理器数量 |
4 |
| 内置处理器 |
Y |
| 处理器频率 |
3.2 GHz |
处理器的特殊功能
| 执行禁止位 |
Y |
| 闲置状态 |
Y |
| 热监测技术 |
Y |
| 英特尔®可信执行技术 |
N |
| 英特尔®稳定映像平台计划 (SIPP) |
N |
| 英特尔®快速同步视频技术 |
Y |
| 英特尔® 内线™ |
Y |
| 英特尔®64 |
Y |
| 可选用的嵌入式选项 |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
Y |
| 英特尔®智能高速缓存 |
Y |
| 英特尔® 防盗技术 |
Y |
| 英特尔®身份保护技术 |
Y |
| 英特尔®超线程技术 |
Y |
| 英特尔®Turbo Boost技术 |
2.0 |
| 英特尔®安全密钥 |
Y |
| 英特尔® 我的WiFi技术 |
Y |
| 英特尔®vPro™ 技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 英特尔® FDI技术 |
Y |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔®TSX-NIi |
N |
| 英特尔® OS Guard 操作系统保护 |
Y |
| 英特尔®无线显示(WiDi)技术 |
Y |
| 英特尔®清晰视频高清技术 |
Y |
联网
| 蓝牙版本 |
4.0 |
| 局域网控制器 |
Realtek RTL8111G |
| 无线局域网连接 |
Y |
| 蓝牙 |
Y |
| 网路功能 |
802.11 a/b/g/n/ac |
端口 & 界面
| S/PDIF输出接口 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| HDMI端口数量 |
1 |
另外
| InTru™3D技术 |
Y |
| Mini DisplayPort的数量 |
1 |
| 图形适配器 |
Iris Pro graphics 5200 |
| 以太网连接器 |
Y |
| 开/关切换钮 |
Y |
| 英特尔®AES新指令 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
Brix, Intel Core i7-4770R, 3.9GHz, 2x SO-DIMM, Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.0, Realtek ALC269, Pro Graphics 5200, mSATA, SATAIII, HDMI, USB 3.0
- Features Intel® 4rd generation Core™ processors
- Intel® Iris™ Pro graphics 5200
- Supports 2.5” Hard Drives (1 x 6Gbps SATA 3)
- Ultra compact PC design - 0.79L (62 x 111.4 x 114.4 mm)
- 1 x mSATA SSD Slot
- 2 x SO-DIMM DDR3L Slots (1333 / 1600 MHz)
- 802.11 a/b/g/n/ac Wi-Fi / Bluetooth 4.0 Mini-PCIe card
- HDMI plus Mini DisplayPort Outputs (supports dual displays)
- 4K resolution output (4096 x 2304 via HDMI)
- 4 x USB 3.0
- Gigabit LAN
- Headphone jack with S/PDIF
- VESA mounting bracket (75 x 75mm + 100 x 100mm)

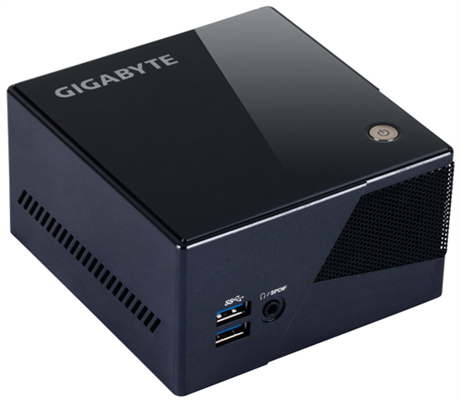

GIGABYTE BRIX Pro – Highly Compact, Highly Potent
The BRIX Pro takes the signature compact design philosophy of the GIGABYTE BRIX series, adding a high-performance Intel® Core™ i7 processor featuring Intel® Iris™ Pro graphics 5200. As well as a featuring a true high-performance processor that is ideally suited to CPU-intensive applications like image design and video editing, the superior graphics performance of the BRIX Pro means it’s also great for 3D gaming.
Available in black and red, with a choice Intel® Core™ i7 4770R processors, the BRIX Pro is a DIY PC kit, shipping with a Wi-Fi Mini PCIe module pre-installed, plus power adapter and cable.
The BRIX Pro gives users the flexibility to independently choose integrated storage and system memory sizes, with two SO-DIMM DD3L slots plus support for both mSATA SSD and standard 2.5” SSD installation.
Intel® Iris™ Pro Graphics 5200
The BRIX Pro is one of the first devices to boast the cutting edge graphics capabilities of Intel® Iris™ Pro graphics. Based on the latest graphics architecture from Intel®, Iris™ Pro Graphics use an on-package 128M eDRAM cache that negates memory pipeline issues, greatly boosting overall performance in 3D applications.
Display and Audio Connectivity
The GIGABYTE BRIX Pro features both Mini DisplayPort and HDMI ports on the rear panel, enabling support for simultaneous dual display connectivity, making it suited to both the work place, home theater and entertainment scenarios, including casual 3D gaming. The GIGABYTE BRIX Pro also supports the latest 4K displays via HDMI. Audio connectivity includes SPDIF audio via a front panel connector, useful in Home Theater scenarios that use an A/V receiver.
USB 3.0 and Network Connectivity
The GIGABYTE BRIX Pro provides four USB 3.0 ports* (2x front plus 2x rear) offering improved connectivity for peripherals, storage devices and more. In addition to including a Gigabit Ethernet port, the GIGABYTE BRIX Pro also includes a Mini PCIe module offering 802.11 b/g/n/ac Wi-Fi and the latest Bluetooth 4.0, providing connectivity for low power Bluetooth devices and peripherals, as well as allowing users to easily connect their mobile devices.
VESA Support
Bundled with a VESA bracket, the BRIX Pro can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple and elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
