内存参数
| 可支持内存时钟速度 |
1066, 1333, 1600 MHz |
| 错误更正代码 |
Y |
| 内存通道支持 |
Dual |
| 最大UDIMM内存 |
32 GB |
| DIMM插槽数量 |
4 |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存电压 |
1.5 V |
内置输入/输出系统
| ATX电源接头 |
Y |
| USB 2.0接口 |
4 |
| SATA II连接器数量 |
6 |
| CPU风扇接口 |
Y |
| 串行端口接头连接器 |
1 |
处理器
| 可支持处理器数量 |
1 |
| 英特尔® 至强® 系列 |
E3-1200 |
| 处理器生产厂商 |
Intel |
设计
| 主板元件 |
Micro ATX |
| 组件应用 |
Server |
扩展槽
| PCI Express X 8（Gen 3.x）插槽 |
1 |
| PCI 插槽 |
1 |
| PCI Express X16（Gen 3.x）插槽 |
1 |
| PCI Express X 8（Gen 2.x）插槽 |
1 |
联网
| 局域网控制器 |
Intel 82574L, Intel 82579LM |
| 以太网接口类型 |
Gigabit Ethernet |
另外
| 主板晶片 |
Intel C202 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |

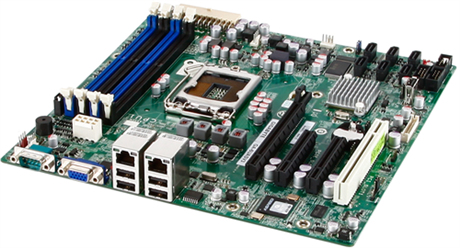

microATX, LGA 1155, DIMM DDR3, ECC UDIMM, GbE LAN, SATA II 3Gb/s, USB 2.0, VGA
The Ideal Base for SMB Server Infrastructure
The GA-6UASV3 is a single socket motherboard addressed to small and medium businesses wishing to benefit from all the main features expected from an entry-level server or workstation of today's technological standards, but at an efficient cost and without compromising high performances.
It answers the main needs of small and medium businesses applications in terms of memory intensity, expansion possibilities and server management capabilities, and is therefore the perfect candidate to gear your server base for the future.
Intel® Xeon® Processor E3-1200 V2 Product Family
With an average improvement of 21 percent over the previous generation, the computing performance of the latest 22nm Xeon processors reaches another all-time high for a single socket server platform.
New workloads enhancing technologies are included with the Intel Turbo Boost 2.0 and the Intel Hyper-Threading, and I/O improvements are not forgotten with the PCIe Gen 3.0, Intel Smart Cache Technology and the support of 1600Mhz DDR3 memory.
Security is also increased with Intel AES-NI and Intel OS Guard technologies, data reliability is improved through the support of ECC memory as well as Intel Rapid Storage Technology.
Support of PCIe Generation 3.0
With the support of the latest PCI Express Gen.3.0 technology directly on the CPU, the GS-R11U4S is fully configured to provide users with dramatically reduced latency and improved data bandwidth to get the most out of its expansion accessories.
Server Management
With the ASPEED 2150 board management controller (BMC), this board offers comprehensive remote control options:
- iKVM
- IPMI 2.0
- Native PCIe support
- 2D Video Graphic Adapter with PCIe bus interface
Red Hat Certified Hardware
GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
VMware Ready
The VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere.
The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations.
