设计
| 主板元件 |
Mini ITX |
| 组件应用 |
Server |
内存参数
| 可支持内存时钟速度 |
1333, 1600 MHz |
| 无错误检测和更正 |
Y |
| DIMM插槽数量 |
4 |
| 错误更正代码 |
Y |
| 最大内部存储 |
64 GB |
| 内存电压 |
1.5, 1.35 V |
内置输入/输出系统
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| SATA III连接器数量 |
2 |
| SATA II连接器数量 |
4 |
| PS电源接口 （8针） |
Y |
| CPU风扇接口 |
Y |
处理器
| 发热量 |
20 W |
| 可支持处理器数量 |
1 |
| 支持处理器前端总线 |
2400, 2600 MHz |
| 处理器生产厂商 |
Intel |
| 光刻技术 |
22 nm |
| 可支持的处理器的核心数量 |
8 |
性能
| 集成IPMI的BMC |
Y |
| 内存带宽（最大） |
25.6 GB/s |
扩展槽
| PCI Express X16（Gen 2.x）插槽 |
1 |
存储控制器
| RAID支持 |
N |
| 硬盘接口 |
Serial ATA II, Serial ATA III |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
5 |

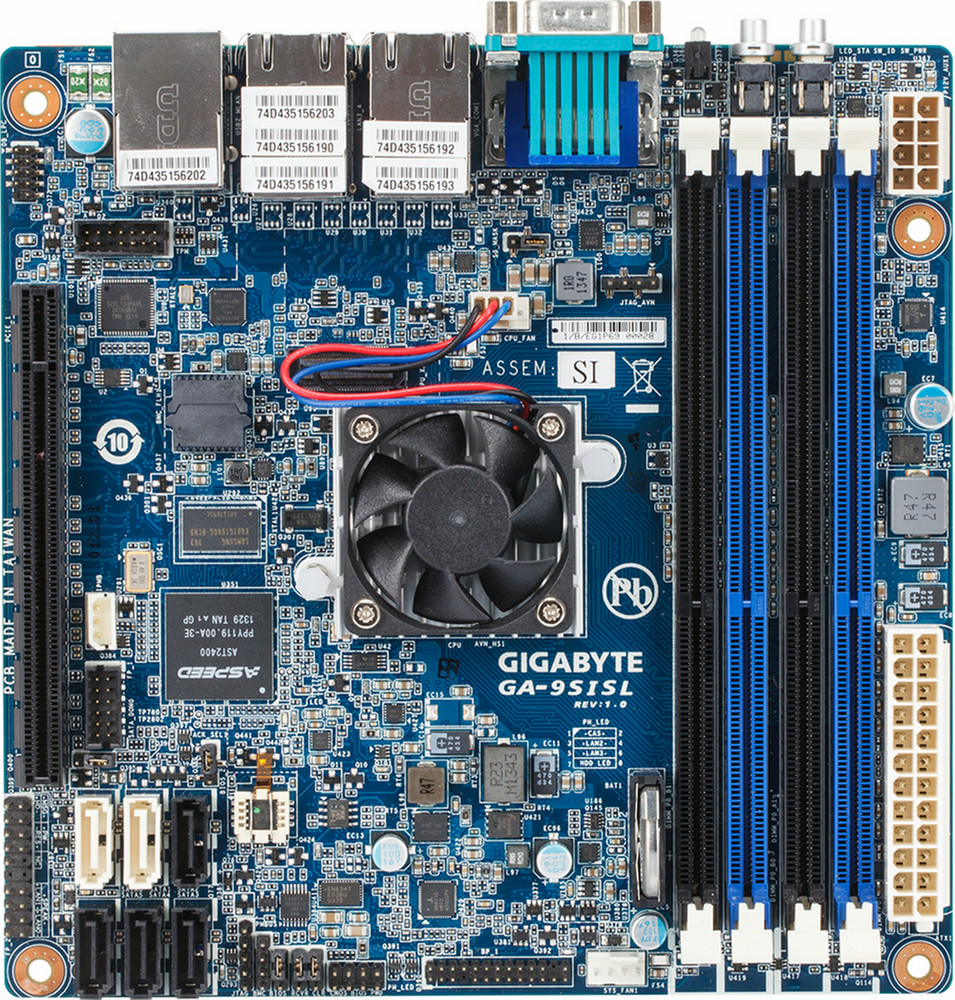

GA-9SISL, Mini-ITX, Intel Atom C2750, BGA 1283, AST2400, DIMM
- Mini-ITX form factor
- Intel® Atom™ C2750 SoC
- 4 x GbE LAN ports (Intel® I354)
- 4 x DIMM slots, up to 64GB UDIMM ECC 1600MHz
- 2 x SATA III 6Gb/s + 4 x SATA II 3Gb/s
- Aspeed® AST2400 remote management controller
The New Lightweight Champion
The GA-9SISL delivers the revolutionary performance of the new Intel® Atom™ processors C2000 family on a platform including all the features required to be the new favorite choice for light and scalable server applications.
In addition to the excellent computing power and energy consumption ratio offered by the Intel® Atom™ C2750 processor, the GA-9SISL features:
- 4 x regular DIMM slots supporting ECC memory. Cheaper and more flexible solution compared to SO-DIMM slots usually found on competing Mini-ITX products.
- 1 x PCIe x16 slot for additional storage or network features.
- 4 x Gigabit LAN ports for flexible network configurations.
- 1 separate management LAN port to access the board's remote management functions.
- A board placement optimized for rackmount integration. Also, its rear interface includes buttons and LEDs designed to match the maintenance workflow of such integration.
- 6 storage ports, which can be complemented with a storage PCIe card.
This combination of features make the GA-9SISL a perfect solution to build microservers, lightweight redundant configurations, web hosting arrays, network appliances, and much more.
Intel® Atom™ Processor C2750
The new Intel® Atom™ processors C2000 family offers a breakthrough boost in performance, memory capacity and power efficiency over the previous Atom™ generations. It is now the ideal choice for a server deployment requiring high density and low power consumption for light and scalable workloads.
The Intel® Atom™ processors C2750 is part of the 2nd generation of Intel® Atom™ SoC (System on a Chip) for servers. This octo-core processor delivers performance up to 7 times higher, memory capacity up to 8 times higher, and energy efficiency up to 6 times higher than the previous Atom™ generation. In addition to this leap in performance, this processor also includes datacenter class features:
Improved data integrity and system uptime through ECC memory support.
Faster and richer virtualization usages thanks to the Intel® VT-x Technology.
Stronger processing and management of storage and network loads.
Transparent and flexible integration through x86 compatibility.
