基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
AWARD |
| ACPI的版本 |
1.0b |
背板输出端口
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| VGA（D-SUB）端口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
3 |
| PS/2连接埠数量 |
1 |
| DVI-D接口数量 |
1 |
扩展槽
| PCI Express插槽版本 |
2.0 |
| PCI Express x16 插槽 |
2 |
| PCI 插槽 |
1 |
| PCI Express × 1插槽 |
1 |
性能
| 音频系统 |
Realtek ALC889 |
| 主板芯片组系列 |
AMD |
| 组件应用 |
PC |
内存参数
| 内存插槽类型 |
DIMM |
| 内存通道支持 |
Dual |
| 内存电压 |
1.5 V |
| 支持的内存类型 |
DDR3-SDRAM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
32 GB |
内置输入/输出系统
| 前面板音频接头 |
Y |
| 周边（莫仕）电 源连接器（4针） |
1 |
| SATA III连接器数量 |
6 |
| USB 3.0（第 1代3.1）连接器 |
1 |
| TPM（可信任安全平台模组）接口 |
Y |
| ATX电源接头 |
Y |
| S/PDIF输出端口 |
Y |
| USB 2.0接口 |
1 |
另外
| 以太网连接器 |
Y |
| 主板晶片 |
AMD A75 |
| 以太网路(RJ-45)连接接口数量 |
1 |

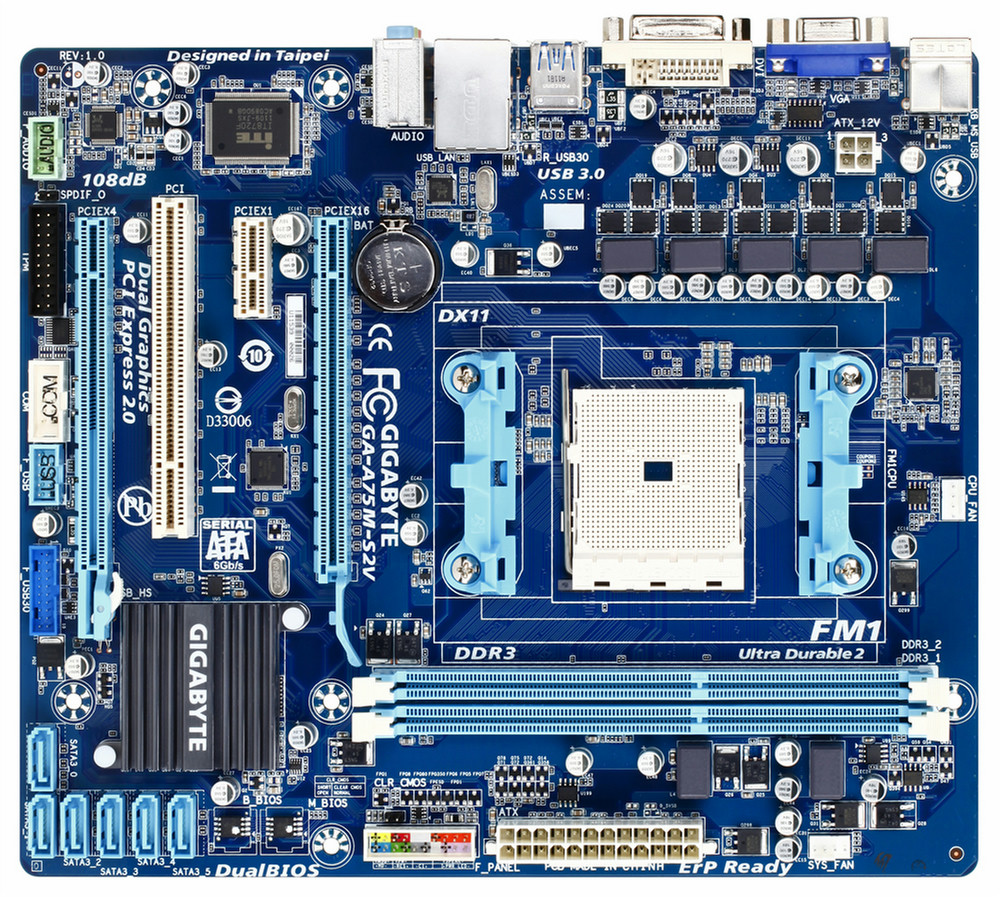

GA-A75M-S2V, FM1, AMD A75, DDR3, SATAIII, USB 2.0, USB 3.9, Ggiabit Ethernet, Micro ATX
GIGABYTE Super4™ motherboards are the latest range of next-generation desktop motherboards based on the AMD A75 chipset, supporting a new generation socket FM1 of 32nm AMD A-series/E-series APUs with DirectX11 graphics integrated. Not only delivering AMD’s industry-leading performance and advanced graphics capabilities, GIGABYTE Super4™ motherboards are equipped with a comprehensive range of unique features that offer mainstream PC users the most compelling platform on the market today.
The AMD A75 series platform showcases AMD Dual Graphics technology, allowing users to further boost 3D graphics performance by adding an additional discrete AMD Radeon™ HD 6000 series graphics card to the system. This unique Dual Graphics technology means users can enjoy higher frame rates on the latest gaming titles, utilizing the processing power of both discrete and integrated graphics processors.
Flexible graphics capabilities - Up to 2 VGA cards are supported for 2 way AMD CrossFireX™ (running at x16, x4 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
DVI (Digital Visual Interface) is a new video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as flat LCD monitors, digital projectors, and so on. In addition, DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media contents.
All GIGABYTE Super4™ motherboards boast specific features that guard against system malfunction and ensure extended system longevity, including GIGABYTE DualBIOS™ to ensure that you never experience system failure due to BIOS corruption. Additionally, each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer. All Super4™ motherboards also use Solid Capacitors design that guarantee system longevity with a minimum 50,000 hrs lifespan.
