背板输出端口
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
3 |
| PS/2连接埠数量 |
1 |
| DVI-D接口数量 |
1 |
性能
| 音频系统 |
Realtek ALC887 |
| 组件应用 |
PC |
| 主板芯片组系列 |
AMD |
内存参数
| 内存插槽类型 |
DIMM |
| 内存通道支持 |
Dual |
| 支持的内存类型 |
DDR3-SDRAM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
64 GB |
内置输入/输出系统
| 串行端口接头连接器 |
1 |
| 前面板音频接头 |
Y |
| COM连接器数量 |
1 |
| CPU风扇接口 |
Y |
| USB 2.0接口 |
2 |
| 串列ATA连接器数量 |
4 |
| PS电源接口 （8针） |
Y |
| ATX电源接头 |
Y |
| S/PDIF输出端口 |
Y |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
64 MB |
| 基本输入输出系统类型 |
UEFI AMI |
扩展槽
| PCI Express x16 插槽 |
1 |
| PCI 插槽 |
1 |
| PCI Express × 1插槽 |
1 |
图像
| 图形适配器系列 |
AMD |
| 最大图形显示内存 |
2000 MB |
另外
| 以太网连接器 |
Y |
| 主板晶片 |
AMD A58 |
| 以太网路(RJ-45)连接接口数量 |
1 |

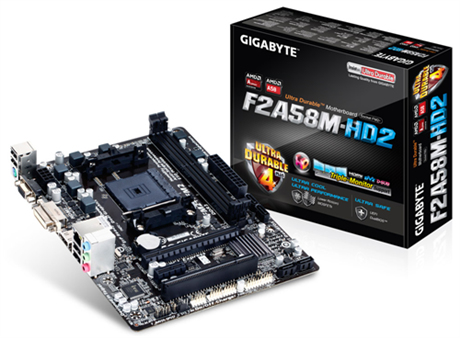

FM2+ Socket, AMD A58, 2 x DDR3 DIMM, 1600/1333 MHz, PS/2, D-Sub, DVI-D, HDMI, 4 x USB 2.0, RJ-45, 3 x audio jacks, Micro ATX
<b>GIGABYTE FM2+ Series Motherboards</b>
GIGABYTE FM2+ series motherboards based on AMD A58 chipset and feature the new FM2+ APU socket, and are designed to get the most from forthcoming Kaveri AMD APUs, while preserving compatibility for current AMD FM2 APUs. FM2+ AMD APUs offer native support for 8 GT/s PCI Express gen 3.0 as well as DX11.1 support integrating the high performance ‘Steamroller’ core. AMD socket FM2+ APUs also offer native support for 4K resolution displays on HDMI port.
<b>GIGABYTE Ultra Durable™ 4 Plus</b>
GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
<b>Ultra Performance</b>
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
<b>Ultra Safe</b>
<b>GIGABYTE UEFI DualBIOS™</b>
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
<b>Humidity Protection</b>
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
<b>Power Failure Protection</b>
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
<b>Electrostatic Protection</b>
GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
<b>AMD Dual Graphics Technology</b>
The AMD FM2+ series platform showcases AMD Dual Graphics technology, allowing users to further boost 3D graphics performance by adding an additional discrete AMD Radeon™ graphics card to the system. This unique Dual Graphics technology means users can enjoy higher frame rates on the latest gaming titles, utilizing the processing power of both discrete and integrated graphics processors.
<b>AMD Eyefinity Technology</b>
Supporting multiple independent display outputs simultaneously, AMD Eyefinity technology delivers innovative graphics display capabilities enabling massive desktop workspaces and ultra-immersive visual environments for the ultimate panoramic computing experience.
<b>Triple-monitor support</b>
GIGABYTE FM2+ series motherboards are taking advantage of AMD Eyefinity technology, to allow users to extend their OS desktop by connecting up to three high-resolution digital displays. Triple displays mean more real-estate for enhanced productivity, plus the ability to enjoy panoramic triple screen 3D gaming thanks to AMD’s optimized Eyefinity driver technology.
<b>Dual-link DVI port</b>
Designed to leverage the awesome potential of the latest AMD Fusion A-series APUs, GIGABYTE motherboards deliver an enhanced visual experience that includes advanced DX11® gaming, incredibly smooth HD multimedia playback and support for high resolution displays of up to 2560 x 1600 pixels by Dual-link DVI port.
<b>4K Ultra HD Support</b>
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE FM2+ series motherboards provide native 4K support with FM2+ APU integrated graphics via HDMI port.
<b>HDMI Interface</b>
HDMI is latest High-Definition Multimedia Interface, which is able to provide up to 5Gb/s video transmitting bandwidth and also 8-channel high quality audio. Via transmitting uncompressed digital data, HDMI is able to reduce signal interference as transferring between digital and analog signal, seen and heard, direct from the source. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), which allowing playback of Blu-ray/ HD DVD and other protected contents.
<b>On/Off Charge Technology</b>
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger.
<b>ErP Lot 6 support</b>
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
