基本輸出輸入系統/BIOS
| BIOS内存大小 |
16 MB |
| ACPI的版本 |
2.0a |
| 清除CMOS跳线 |
Y |
| 基本输入输出系统类型 |
UEFI AMI |
背板输出端口
| PS/2连接埠数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
1 |
| DVI-D接口数量 |
1 |
| S/PDIF输入端口 |
N |
性能
| 音频系统 |
Realtek ALC887 |
| 可信任平台模组(全面生产管理) |
N |
| 主板芯片组系列 |
AMD |
| 组件应用 |
PC |
内存参数
| 内存插槽类型 |
DIMM |
| 内存通道支持 |
Dual |
| 内存电压 |
1.5 V |
| 支持的内存类型 |
DDR3-SDRAM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
64 GB |
内置输入/输出系统
| 串行端口接头连接器 |
1 |
| 双回路电源系统（DPS）插槽 |
N |
| 音效／调制解调器主机板附加直立插卡的插槽 |
N |
| CNR插槽 |
N |
| CF卡连接器 |
N |
| 前面板音频接头 |
Y |
| 机箱防盗接口 |
Y |
| EZ plug接口 |
N |
| GAME（游戏）/MIDI （乐器数字接口）端口 |
N |
| COM连接器数量 |
1 |
| CPU风扇接口 |
Y |
| CD/AUX音频输入 |
N |
| 并行接口 |
Y |
| PS电源接口 （8针） |
Y |
| SATA III连接器数量 |
8 |
| 软盘驱动器接口 |
N |
| IPMI 2.0插槽 |
N |
| USB 3.0（第 1代3.1）连接器 |
1 |
| 机箱风扇接头数量 |
1 |
| TPM（可信任安全平台模组）接口 |
N |
| S / PDIF输入接口 |
N |
| 风扇电源接头 |
N |
| ATX电源接头 |
Y |
| S/PDIF输出端口 |
Y |
| USB 2.0接口 |
2 |
| 串列ATA连接器数量 |
8 |
图像
| 分立图形支持 |
Y |
| 板载图形适配器 |
Y |
| 最大图形显示内存 |
2048 MB |
扩展槽
| PCI Express X16（Gen 3.x）插槽 |
1 |
| PCI Express X16（Gen 2.x）插槽 |
1 |
| PCI Express x1（Gen 2.x）插槽 |
1 |
| PCI 插槽 |
1 |
处理器
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
1 |
另外
| 以太网连接器 |
Y |
| 双dvi（互应式数字视频） |
Y |
| 图形适配器 |
Radeon HD 7000 |
| 主板晶片 |
AMD A88X |
| 以太网路(RJ-45)连接接口数量 |
1 |

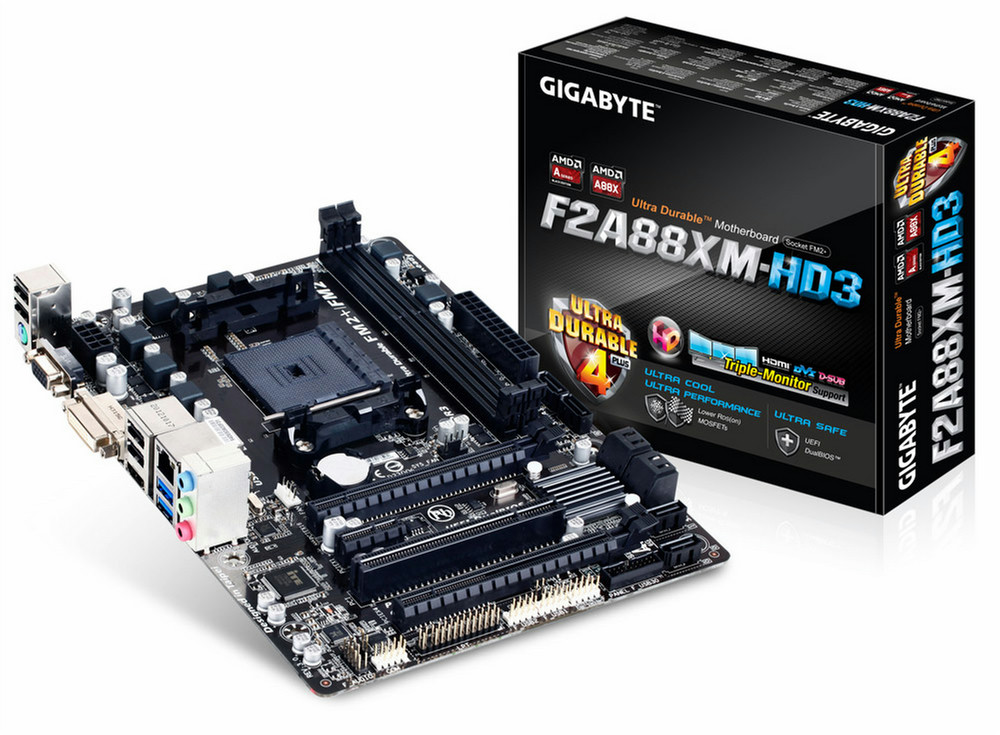

GA-F2A88XM-HD3 - FM2+, AMD A88X, 2 x 1.5V DDR3 DIMM, AMD Radeon HD 8000/7000, 1 x PCI Express 3.0 x16, 8 x SATA 6Gb/s, GbE LAN, UEFI DualBIOS, Micro ATX
<b>GIGABYTE FM2+ Series Motherboards</b>
GIGABYTE FM2+ series motherboards based on AMD A88X chipset and feature the new FM2+ APU socket, and are designed to get the most from forthcoming Kaveri AMD APUs, while preserving compatibility for current AMD FM2 APUs. FM2+ AMD APUs offer native support for 8 GT/s PCI Express gen 3.0 as well as DX11.1 support integrating the high performance ‘Steamroller’ core. AMD socket FM2+ APUs also offer native support for 4K resolution displays on HDMI port.
<b>GIGABYTE Ultra Durable™ 4 Plus</b>
GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
<b>Ultra Performance</b>
GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
<b>Ultra Performance</b>
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
<b>GIGABYTE UEFI DualBIOS™</b>
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
<b>AMD Dual Graphics Technology</b>
The AMD A88X series platform showcases AMD Dual Graphics technology, allowing users to further boost 3D graphics performance by adding an additional discrete AMD Radeon™ HD 6000 series graphics card to the system. This unique Dual Graphics technology means users can enjoy higher frame rates on the latest gaming titles, utilizing the processing power of both discrete and integrated graphics processors.
<b>AMD Eyefinity Technology</b>
Supporting multiple independent display outputs simultaneously, AMD Eyefinity technology delivers innovative graphics display capabilities enabling massive desktop workspaces and ultra-immersive visual environments for the ultimate panoramic computing experience.
<b>Multi-display support with AMD CrossFire</b>
Flexible graphics capabilities - Up to 2 VGA cards are supported for 2 way AMD CrossFire™ (running at x16, x4 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
<b>Triple-monitor support</b>
GIGABYTE FM2+ series motherboards are taking advantage of AMD Eyefinity technology, to allow users to extend their OS desktop by connecting up to three high-resolution digital displays. Triple displays mean more real-estate for enhanced productivity, plus the ability to enjoy panoramic triple screen 3D gaming thanks to AMD’s optimized Eyefinity driver technology.
<b>Dual-link DVI port</b>
Designed to leverage the awesome potential of the latest AMD Fusion A-series APUs, GIGABYTE motherboards deliver an enhanced visual experience that includes advanced DX11® gaming, incredibly smooth HD multimedia playback and support for high resolution displays of up to 2560 x 1600 pixels by Dual-link DVI port.
<b>HDMI Interface</b>
HDMI is latest High-Definition Multimedia Interface, which is able to provide up to 5Gb/s video transmitting bandwidth and also 8-channel high quality audio. Via transmitting uncompressed digital data, HDMI is able to reduce signal interference as transferring between digital and analog signal, seen and heard, direct from the source. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), which allowing playback of Blu-ray/ HD DVD and other protected contents.
<b>High ESD protection for USB and LAN (USB3.0 only)</b>
GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
<b>One fuse per USB port (USB3.0 only)</b>
On GIGABYTE motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer.
<b>On/Off Charge Technology</b>
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more .
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.
<b>ErP Lot 6 support</b>
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
