内置输入/输出系统
| USB 2.0接口 |
1 |
| ATX电源接头 |
Y |
| S/PDIF输出端口 |
Y |
| 前面板音频接头 |
Y |
| 机箱防盗接口 |
Y |
| CPU风扇接口 |
Y |
| SATA III连接器数量 |
4 |
| USB 3.0（第 1代3.1）连接器 |
1 |
| 机箱风扇接头数量 |
1 |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
EFI AMI |
| 清除CMOS跳线 |
Y |
扩展槽
| Mini PCI Express插槽 |
1 |
| PCI Express X16（Gen 3.x）插槽 |
1 |
背板输出端口
| WiFi-AP天线端子 |
2 |
| HDMI端口数量 |
2 |
| 数字音频光学输出 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
1 |
| PS/2连接埠数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| DVI-D接口数量 |
1 |
图像
| 最大图形显示内存 |
2048 MB |
| HDCP |
Y |
| 分立图形支持 |
Y |
| 图形适配器系列 |
AMD |
性能
| 冷却方式 |
Passive |
| 音频系统 |
Realtek ALC892 |
| PC健康监测 |
Temperature, Power supply, FAN, CPU |
| 组件应用 |
PC |
| 主板芯片组系列 |
AMD |
内存参数
| 内存插槽类型 |
DIMM |
| 内存通道支持 |
Dual |
| 内存电压 |
1.5 V |
| 支持的内存类型 |
DDR3-SDRAM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
64 GB |
另外
| PCI Express插槽数量 |
2 |
| 主板晶片 |
AMD A88X |
| 以太网连接器 |
Y |
| 双dvi（互应式数字视频） |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

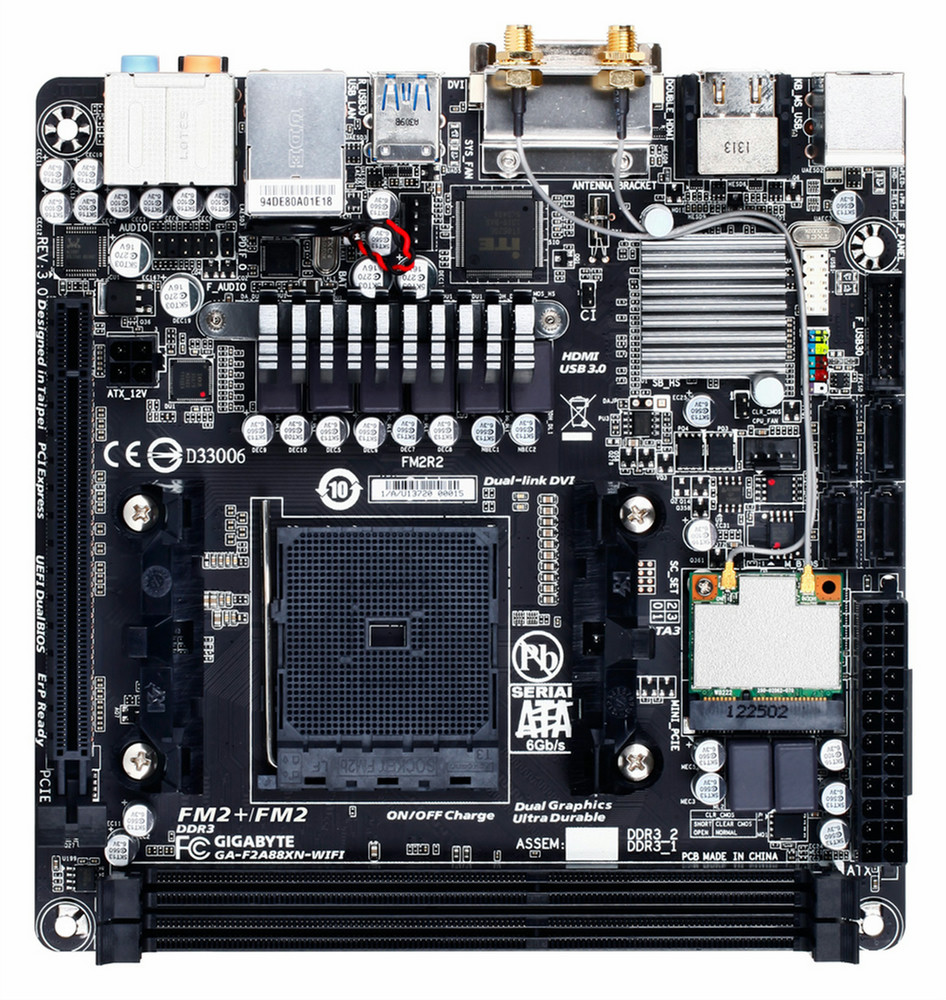

FM2+, A88X, 2x DIMM, XMP/AMP, Realtek ALC892, Gigabit Ethernet, 802.11 a/b/g/n/ac 2.5/5GHz, Bluetooth 4.0, SATAIII, RAID, DVI-D, HDMI, S/PDIF, USB 3.0, Mini-ITX
- Socket FM2+ supports AMD FM2+/FM2 A-series APU
- GIGABYTE Ultra Durable™ 4 Plus Technology
- IR Digital 4+2 phase APU power design
- GIGABYTE UEFI DualBIOS™
- Features dual HDMI/ Dual-link DVI ports for Full HD 1080 and HDCP support
- Features Dual Band 802.11ac 867Mbps + BLUETOOTH 4.0 wireless solution
- 4 USB 3.0 ports with transfer rates of up to 5Gbps
- 4 SATA3 ports with up to 6Gbps link speed and RAID 0,1,5,10 support
- GIGABYTE On/Off Charge technology with 3x USB power design
<b>GIGABYTE FM2+ Series Motherboards</b>
GIGABYTE FM2+ series motherboards based on AMD A88X chipset and feature the new FM2+ APU socket, and are designed to get the most from forthcoming Kaveri AMD APUs, while preserving compatibility for current AMD FM2 APUs. FM2+ AMD APUs offer native support for 8 GT/s PCI Express gen 3.0 as well as DX11.1 support integrating the high performance ‘Steamroller’ core. AMD socket FM2+ APUs also offer native support for 4K resolution displays on HDMI port.
<b>GIGABYTE Ultra Durable™ 4 Plus</b>
GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
<b>Ultra Performance</b>
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
<b>GIGABYTE UEFI DualBIOS™</b>
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
<b>802.11ac, Dual Band, 80MHz, 2Tx2R</b>
Delivers dramatically faster Wi-Fi speeds(up to 867 Mbps)than 802.11n, with more bandwidth per stream (433 Mbps),more capacity for more users (extended channel bonding 80MHz).
<b>AMD Eyefinity Technology</b>
Supporting multiple independent display outputs simultaneously, AMD Eyefinity technology delivers innovative graphics display capabilities enabling massive desktop workspaces and ultra-immersive visual environments for the ultimate panoramic computing experience.
<b>HDMI Interface</b>
HDMI is latest High-Definition Multimedia Interface, which is able to provide up to 5Gb/s video transmitting bandwidth and also 8-channel high quality audio. Via transmitting uncompressed digital data, HDMI is able to reduce signal interference as transferring between digital and analog signal, seen and heard, direct from the source. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), which allowing playback of Blu-ray/ HD DVD and other protected contents.
