性能
| 主板元件 |
Micro ATX |
| 音频系统 |
HD |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
800, 1066 MHz |
| 内存电压 |
1.5 V |
| 内存通道支持 |
Dual |
| 內存插槽数量 |
2 |
| 最大内部存储 |
8 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
2 MB |
| 基本输入输出系统类型 |
AWARD |
| ACPI的版本 |
1.0b |
背板输出端口
| 串口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
3 |
| 麦克风/音频输入插孔 |
Y |
| VGA（D-SUB）端口数量 |
1 |
内置输入/输出系统
| USB 2.0接口 |
4 |
| 串列ATA连接器数量 |
4 |
| 并行ATA连接器 |
1 |
| ATX电源接头 |
Y |
| 周边（莫仕）电 源连接器（4针） |
1 |
| CPU风扇接口 |
Y |
| 机箱风扇接头数量 |
3 |
| EATX电源接头数量 |
1 |
| 前面板音频接头 |
Y |
扩展槽
| PCI 插槽 |
1 |
| PCI Express x16 插槽 |
1 |
| PCI Express × 1插槽 |
2 |
处理器
| 支持处理器前端总线 |
800, 1066, 1333 MHz |
另外
| 主板晶片 |
Intel G41 |
| 图形适配器 |
GMA X4500 |
| 以太网路(RJ-45)连接接口数量 |
1 |

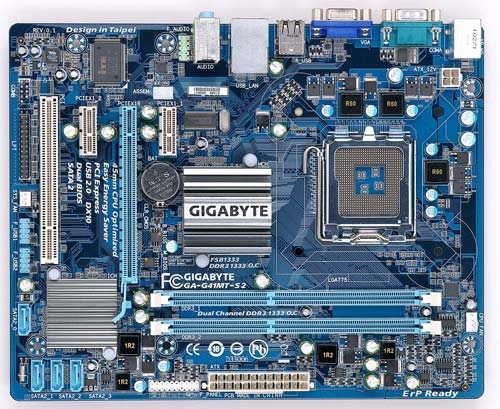

GA-G41MT-S2 - Micro ATX, LGA 775, Intel G41, 1333/1066/800 MHz FSB, HD Audio 7.1, Gigabit Ethernet, 2x DIMM
The GA-G41MT-S2 based on the Intel G41 chipset supports the latest Intel 45nm CPUs, creating a powerful multi-media platform which allows users to do more at once. At the heart of the Intel G41 Express chipset is the Intel X4500 graphics media accelerator, which support DX10 and features several unique innovations including more Execution Units for enhanced 3D performance and Intel Clear Video Technology for sharper images and precise color control.
On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger.
3x USB Power Boost
GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
Smaller, Faster and More Efficient
GA-G41MT-S2 motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors.
GIGABYTE leading technology-Easy Energy Saver
Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with Intel’s highly efficient 45nm CPU’s, Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance.
50,000 Hours Japanese Solid Capacitors (CPU Power Zone)
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.
Intel GMA X4500
Intel Graphics Media Accelerator X4500 support Microsoft DirectX10, Intel® Clear Video Technology, which enable smoother HD playback. The 3D enhancement of GMA X4500 also highly improves the realism and graphics performance for mainstream gaming. Through the support of DVI and HDMI (with HDCP), Intel GMA X4500 brings the ultimate multimedia experience.
DualBIOS™ - Patented Dual Hardware BIOS Protection
DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.
SATA 3Gb/s storage interface
SATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations.
Gigabit LAN connectivity
The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents.
ErP Lot 6 support
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
