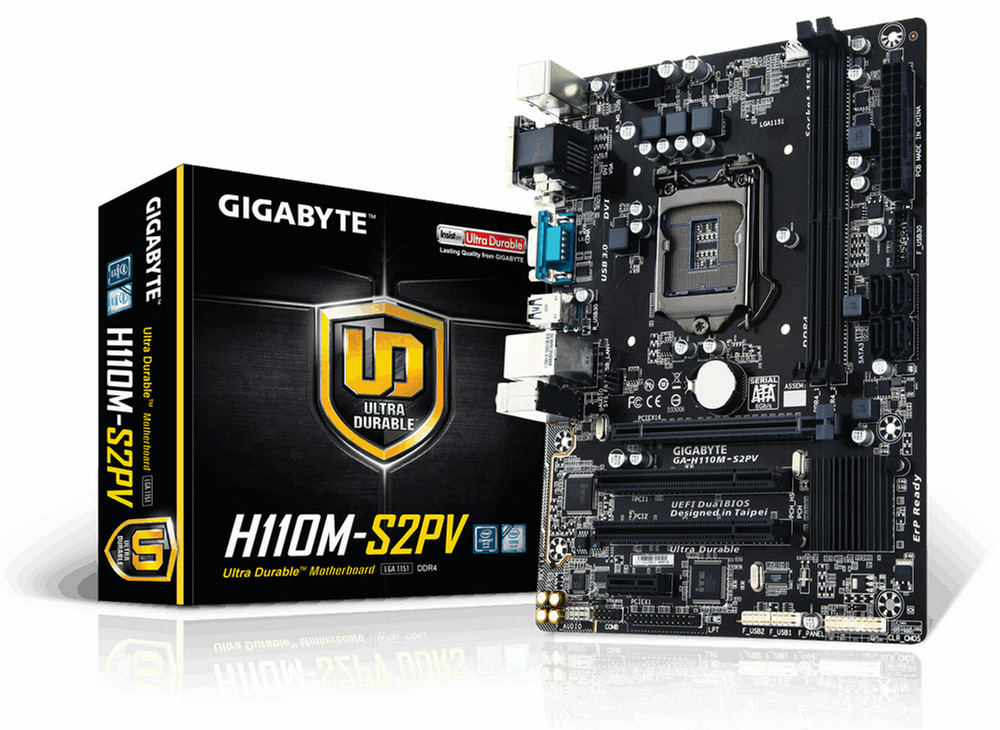

Gigabyte GA-H110M-S2PV Intel® H110 Express Chipset LGA 1151 (Socket H4) Micro ATX motherboard

Gigabyte GA-H110M-S2PV Intel® H110 Express Chipset LGA 1151 (Socket H4) Micro ATX motherboard

EAN: 4719331843434
MPN: GA-H110M-S2PV
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

性能

主板元件 Micro ATX
主板芯片组系列 Intel
音频输出通道数量 7.1 channels
PC健康监测 CPU, FAN, Temperature, Voltage
音频系统 HD
组件应用 PC
可支持的Windows操作系统 Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

内存参数

可支持内存时钟速度 2133 MHz
无错误检测和更正 Y
错误更正代码 Y
支持的内存类型 DDR4-SDRAM
内存通道支持 Dual
内存插槽类型 DIMM
內存插槽数量 2
最大内部存储 32 GB

基本輸出輸入系統/BIOS

BIOS内存大小 16 MB
基本输入输出系统类型 UEFI AMI
清除CMOS跳线 Y
ACPI的版本 5.0

背板输出端口

串口数量 1
DVI-D接口数量 1
PS/2连接埠数量 1
USB2.0端口的数量 4
耳机输出端口 1
麦克风/音频输入插孔 Y
USB 3.0(第 1代3.1)Type-A 端口数量 2
VGA(D-SUB)端口数量 1

处理器

SMP(适用于表面安装的封装形式)处理器的最大数量 1
处理器插槽 LGA 1151 (Socket H4)
兼容处理器 Celeron, Core i3, Core i5, Core i7, Pentium

内置输入/输出系统

USB 2.0接口 2
S/PDIF输出端口 Y
ATX电源接头 Y
风扇电源接头 Y
USB 3.0(第 1代3.1)连接器 1
SATA III连接器数量 6
PS电源接口 (8针) Y
并行接口 Y
支持存储驱动器界面 Serial ATA III
CPU风扇接口 Y
前面板音频接头 Y
串行端口接头连接器 1

图像

最大图形显示内存 512 MB
图形适配器系列 Intel
最大分辨率 1920 x 1200 pixels

扩展槽

PCI 插槽 2
PCI Express x1(Gen 2.x)插槽 1
PCI Express X16(Gen 3.x)插槽 1

联网

以太网接口类型 Gigabit Ethernet

内容包装

捆绑软件 Norton Internet Security\ncFosSpeed

重量和尺寸

深度 180 mm
宽度 244 mm

另外

主板晶片 Intel H110
图形适配器 HD Graphics
以太网连接器 Y
以太网路(RJ-45)连接接口数量 1
Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron, 2 x DDR4 DIMM sockets, Intel H110 Express, Realtek High Definition Audio, Gigabit LAN GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional users.

Humidity Protection with Glass Fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

High ESD Ethernet & USB Port Protection
GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. With pairing the dedicated protection filters, the Ethernet LAN and USB ports can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

High Temperature Protection Lower RDS(on) MOSFETs Design
GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

Realtek GbE LAN with cFosSpeed Internet Accelerator Software
Realtek GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to delivery better responsiveness in a crowded LAN environments. Realtek GbE consumes significant less power when it’s in idle state in comparison with others.

APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.

Cloud Station™
GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

USB 3.0 Ports Onboard
With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.

GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
