性能
| 主板元件 |
ATX |
| 主板芯片组系列 |
Intel |
| PC健康监测 |
FAN, Temperature, Voltage |
| 音频系统 |
High Definition |
| 组件应用 |
Mini PC |
内存参数
| 可支持内存时钟速度 |
1333, 1600, 1866 MHz |
| 错误更正代码 |
Y |
| 支持的内存类型 |
DDR3-SDRAM, DDR3L-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
4 |
| 最大内部存储 |
32 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
16 MB |
| 基本输入输出系统类型 |
UEFI AMI |
| 清除CMOS跳线 |
Y |
| ACPI的版本 |
5.0 |
内置输入/输出系统
| 迷你SATA端口数量 |
1 |
| USB 2.0接口 |
2 |
| S/PDIF输出端口 |
Y |
| ATX电源接头 |
Y |
| 风扇电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
2 |
| SATA III连接器数量 |
6 |
| PS电源接口 （8针） |
Y |
| CPU风扇接口 |
Y |
| 串行端口接头连接器 |
1 |
| 并行端口，通过内部头 |
Y |
| SATA Express 连接器数量 |
2 |
| 迅雷 ™ 连接头 (Thunderbolt™ headers) |
1 |
图像
| 板载图形适配器 |
Y |
| 分立图形支持 |
Y |
| HDCP |
Y |
| 支持的显示器数量 |
3 |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI 插槽 |
2 |
| PCI Express x16 插槽 |
2 |
| PCI Express × 1插槽 |
2 |
另外
| 主板晶片 |
Intel H170 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

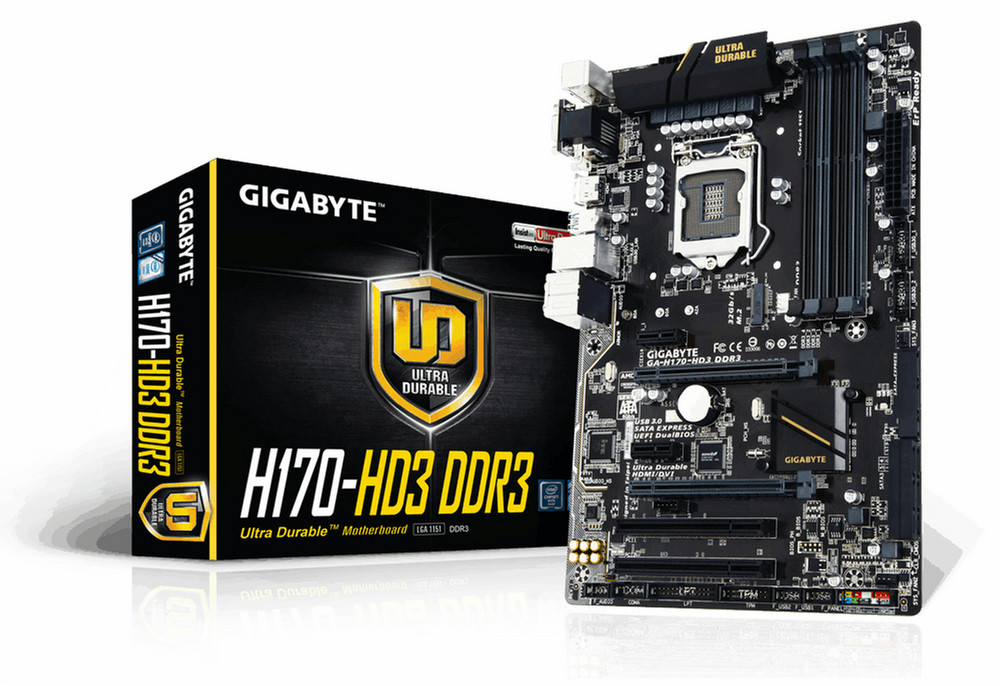

Dual Channel DDR3, Intel H170 Express Chipset, 4 DIMMs, 2 SATA Express, AMI UEFI DualBIOS, Realtek 10/100/1000 Mbit, 10 x USB 3.0/2.0 ports
- Supports 6th Generation Intel Core Processor
- Dual Channel DDR3/DDR3L, 4 DIMMs
- 2-Way Graphics with Premium PCIe Lane
- PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
- 2 SATA Express Connectors for up to 16Gb/s Data Transfer
- 8-channel HD Audio with High Quality Audio Capacitors
- Audio Noise Guard with LED Trace Path Lighting
- Realtek Green GbE LAN with cFosSpeed Internet Accelerator Software
- APP Center Including EasyTune and Cloud Station™ Utilities
- GIGABYTE UEFI DualBIOS Technology
- Support Intel Small Business Basics
GIGABYTE Ultra Durable Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR3/ DDR3L memory, bringing cutting edge features and ultimate performance to your next PC build.
Fast Onboard Storage with 32Gb/s M.2
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
High Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
Next Generation SATA Express
SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.
2-Way CrossFire Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Realtek Green GbE LAN with cFosSpeed Internet Accelerator Software
Realtek Green GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency, maintain low ping times to delivery better responsiveness in a crowded LAN environments. Realtek Green GbE consumes significant less power when it’s in idle state in comparison with others.
All New GIGABYTE App Center Including EasyTune, Cloud Station Utilities and More...
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.
Easy Tune
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
Cloud Station
GIGABYTE Cloud Station is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
15μ Gold Plated CPU Socket Design
GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
GIGABYTE Patented DualBIOS (UEFI) Design
GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
HDMI - The Next Generation Multimedia Interface
HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
