性能
| 主板元件 |
Mini ITX |
| 主板芯片组系列 |
Intel |
| PC健康监测 |
CPU, FAN, Power supply, Temperature |
| 音频系统 |
Realtek ALC892 |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1333, 1600 MHz |
| 无错误检测和更正 |
Y |
| 错误更正代码 |
N |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
基本輸出輸入系統/BIOS
| 基本输入输出系统类型 |
EFI AMI |
| 清除CMOS跳线 |
Y |
| ACPI的版本 |
2.0a |
内置输入/输出系统
| USB 2.0接口 |
1 |
| S/PDIF输出端口 |
Y |
| 串列ATA连接器数量 |
4 |
| ATX电源接头 |
Y |
| PCI Express电源连接器（6针） |
1 |
| USB 3.0（第 1代3.1）连接器 |
1 |
| CPU风扇接口 |
Y |
| 前面板音频接头 |
Y |
| 串行端口接头连接器 |
1 |
扩展槽
| PCI Express x16 插槽 |
1 |
| Mini PCI Express插槽（全） |
1 |
背板输出端口
| PS/2连接埠数量 |
1 |
| S/PDIF输出接口 |
Y |
| DVI-I接口数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| HDMI端口数量 |
2 |
另外
| 主板晶片 |
Intel H87 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |

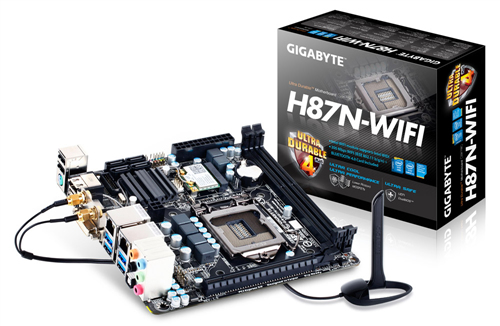

Intel H87 Express Chipset, HDMI x 2, DVI-I, Bluetooth 4.0/3.0+HS/2.1+EDR, 4 x SATA 6Gb/s, 1 x PS/2, 4 x USB 3.0/2.0, 2 x USB 2.0/1.1, 2 x RJ-45, 1 x optical S/PDIF Out, 5 x audio jacks
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.
Next Gen Intel® 8 Series Platform
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® H87 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles.
GIGABYTE Ultra Durable™ 4 Plus
GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
Ultra Performance
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
Ultra Safe
GIGABYTE UEFI DualBIOS™
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
