性能
| 主板元件 |
Micro ATX |
| 音频系统 |
Realtek ALC889A |
内置输入/输出系统
| S/PDIF输出端口 |
Y |
| 串列ATA连接器数量 |
7 |
| 并行ATA连接器 |
1 |
| ATX电源接头 |
Y |
| 风扇电源接头 |
Y |
| S / PDIF输入接口 |
Y |
| 火线接口数量 |
1 |
| 软盘驱动器接口 |
Y |
| CD/AUX音频输入 |
Y |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 前面板音频接头 |
Y |
内存参数
| 无错误检测和更正 |
Y |
| 内存电压 |
1.5 V |
| 內存插槽数量 |
4 |
| 最大内部存储 |
16 GB |
扩展槽
| PCI 插槽 |
1 |
| PCI Express x16 插槽 |
1 |
| PCI Express x8插槽 |
1 |
| PCI Express × 4插槽 |
1 |
背板输出端口
| PS/2连接埠数量 |
1 |
| IEEE 1394/Firewire(火线)端口数量 |
1 |
| S/PDIF输出接口 |
Y |
| eSATA端口数量 |
1 |
| 数字音频光学输出 |
1 |
另外
| 主板晶片 |
Intel P55 |
| 以太网路(RJ-45)连接接口数量 |
1 |

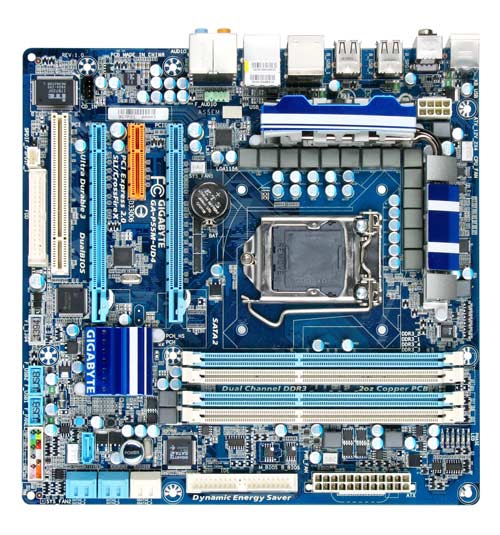

Micro ATX Intel P55, DDR3 DIMM 2200/1600/1333/1066/800MHz, Realtek ALC889A 7.1, 10/100/1000Mbit, PCI, PCI-E, SATA
- Industry leading 12 phase power VRM design for optimum power efficiency and thermal solution;
- Leading quality standard of Ultra Durable™ 3 technology with 2oz copper PCB design;
- Innovative Smart 6 technology for Smarter PC management;
- Support Intel® Core™ i7/ Core™ i5 processors with LGA 1156 socket;
- New Dynamic Energy Saver™ 2 technology enables best energy efficiency;
- Support both ATI CrossFireX and NVIDIA SLI for ultimate graphics performance;
- XHD technology accelerating hard drive performance with ease;
- AutoGreen technology Greening your PC via Bluetooth cellphone;
- Integrated eSATA/USB combo connectors for enhanced storage flexibility;
- Patented GIGABYTE DualBIOS™ technology delivering highest level failure protection;
- Supports Dolby Home Theater audio to create a stunning surround sound listening experience;
- The Precision OV provides more precision voltage control for system;
- Compatible with Windows 7 to deliver the best operation experience;
- Small size for LAN party use and space saving purpose.
Ultra Durable 3
GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking.
Benefits of 2 oz Copper PCB
- Cooler than traditional motherboards;
- Enhanced durability;
- Improved energy efficiency;
- Greater margins for overclocking.
Smart 6- A Smarter way for PC system Management
GIGABYTE Smart 6™ is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6™ allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button.
- No more waiting for PC Boot up;
- One-click Overclocking;
- Reverse time for you;
- Smart personal reminder;
- Your PC's Watch Dog;
- Time Controller for PC.
Windows® 7 WHQL Certified
The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards.
Dynamic Energy Saver™ 2
GIGABYTE Dynamic Energy Saver™ 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button.
Intel® Core i7/ Core i5 LGA 1156 Processors
The Intel brand new computing architecture based on the innovation of micro-architecture transforms 3-chip solutions to a 2-chip platform. The next generation Intel® Core™ i7/ Core™ i5 processors with LGA1156 package integrate graphics and memory controller to support dual channel DDR3 memory. Supporting Intel Turbo Boost technology and Hyper-Threading Technology, Intel® Core™ i7/ Core™ i5 processors provide the overwhelming performance with optimized power efficiency.
DDR3 2200+ Support
P55M-UD4 support Intel Core™ i7/ Core™ i5 processors delivering native support for DDR3 memory up to 2200+MHz by the enhanced design of GIGABYTE, Intel Core™ i7/ Core™ i5 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance.
eSATA/USB combo
eSATA\USB combo ports provides significant convenience by supporting eSATA and USB devices in one port, and requires no additional power source when connecting eSATA devices through the applicable cable.
XHD (eXtreme HardDrive)-Accelerating hard drive performance with ease
Accelerating system performance is made easy with the user friendly GIGABYTE eXtreme Hard Drive (X.H.D). GIGABYTE eXtreme Hard Drive (X.H.D) provides a quick and easy way to boost your hard drive performance simply by adding another hard drive.
AutoGreen- Greening your PC via Bluetooth cellphone
AutoGreen technology can automatically save power for you simply by your bluetooth cell phone when you are away from your computer.
*GIGABYTE motherboards do not include a Bluetooth® receiver; the addition of a 3rd party Bluetooth receiver is required.
Multi-display support with ATI CrossFireX and NVIDIA SLI™
P55-UD5 supporting both ATI CrossFireX and NVIDIA SLI™ delivers the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Thermal Design
Inspired by the performance and sleek lines of today's modern racing vehicles, GIGABYTE's stylish thermal solution is designed for extreme performance and ultra coolness.
Dolby Home Theater Support
Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones.
Norton™ Internet Security
Fast, comprehensive, and up-to-the-minute protection against online threats. It safeguards your computer, identity, and home network without slowing you down. It sets a new standard for speed and makes online shopping, banking, and browsing safer and more convenient than ever.
