基本輸出輸入系統/BIOS
| ACPI的版本 |
5.0 |
| BIOS内存大小 |
256 MB |
| 基本输入输出系统类型 |
UEFI AMI |
背板输出端口
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| HDMI端口数量 |
1 |
| PS/2连接埠数量 |
1 |
图像
| 支持的显示器数量 |
3 |
| 图形适配器系列 |
NVIDIA, AMD |
| 最大图形显示内存 |
512 MB |
性能
| 组件应用 |
PC |
| 音频系统 |
High Definition Audio |
| 主板芯片组系列 |
Intel |
内置输入/输出系统
| SATA Express 连接器数量 |
3 |
| 串行端口接头连接器 |
1 |
| USB 3.0（第 1代3.1）连接器 |
8 |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 2.0接口 |
5 |
内存参数
| 内存插槽类型 |
DIMM |
| 支持的内存类型 |
DDR4-SDRAM |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 主板晶片 |
Intel Z170 |

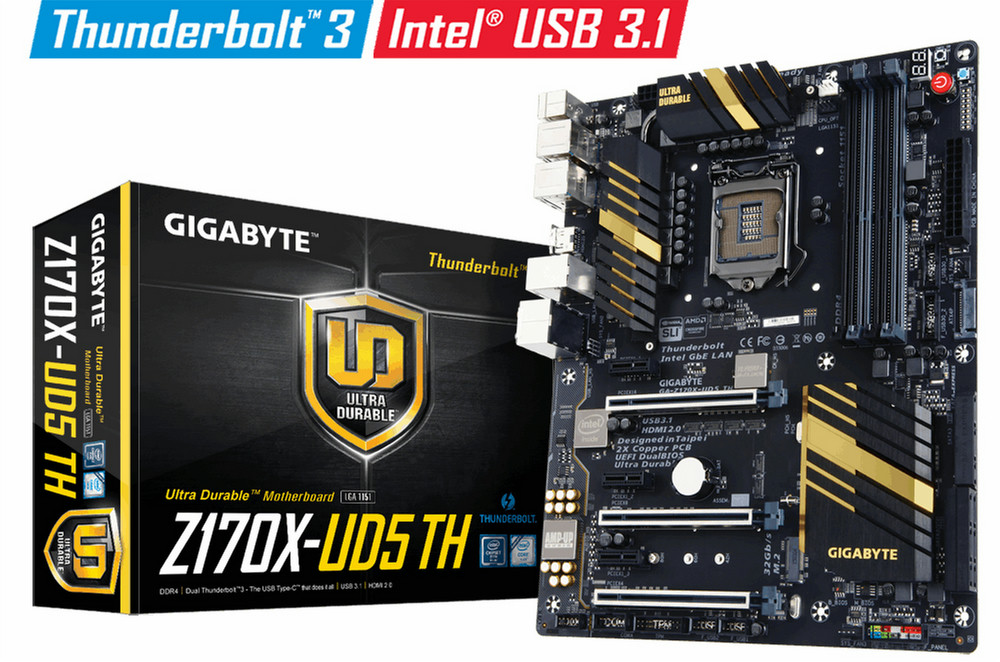

Intel Z170 Chipset, 4 x DDR4 DIMM, HD Audio, LAN, USB Type-C, USB 2.0, USB 3.0, HDMI, Thunderbolt, S/PDIF
<b>Next Generation 40 Gb/s Thunderbolt™ 3</b>
Powered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over two USB Type-C™ connectors on the back I/O of the GIGABYTE Z170X-UD5 TH, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.
<b>Daisy-chain Multiple Devices</b>
Support for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The Z170X-UD5 TH is able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 12 devices thanks to the Z170X-UD5 TH’s dual USB Type-C™ ports.
<b>GIGABYTE Ultra Durable ™ Motherboards</b>
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
<b>HDMI 2.0 for 4K/60P/21:9/HDCP 2.2 Support</b>
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.
<b>Built-in Advanced Performance Tuning IC</b>
Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
