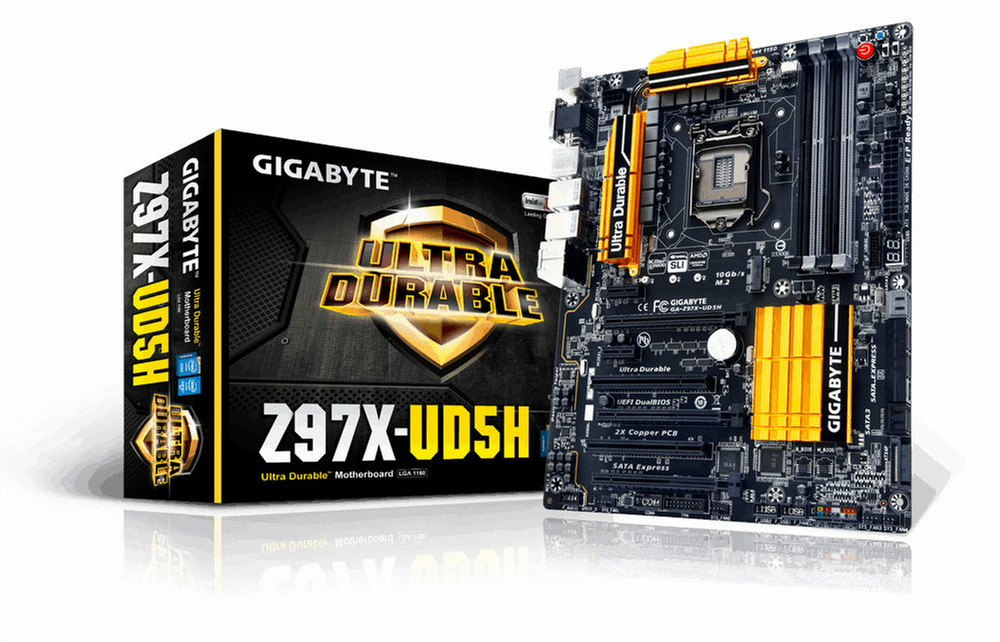

Gigabyte GA-Z97X-UD5H Intel® Z97 Express Chipset Socket H3 (LGA 1150) ATX motherboard

Gigabyte GA-Z97X-UD5H Intel® Z97 Express Chipset Socket H3 (LGA 1150) ATX motherboard

MPN: GA-Z97X-UD5H
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

性能

主板元件 ATX
主板芯片组系列 Intel
音频系统 ALC1150
组件应用 PC

内存参数

可支持内存时钟速度 1333, 1600 MHz
无错误检测和更正 Y
支持的内存类型 DDR3-SDRAM
内存通道支持 Dual
内存插槽类型 DIMM
內存插槽数量 4
最大内部存储 32 GB

基本輸出輸入系統/BIOS

BIOS内存大小 128 MB
基本输入输出系统类型 UEFI AMI
清除CMOS按钮 Y
清除CMOS跳线 Y
BIOS开关按钮 Y
ACPI的版本 5.0

内置输入/输出系统

USB 2.0接口 2
S/PDIF输出端口 Y
串列ATA连接器数量 9
ATX电源接头 Y
PCI Express电源连接器(6针) 2
TPM(可信任安全平台模组)接口 Y
USB 3.0(第 1代3.1)连接器 1
PS电源接口 (8针) Y
CPU风扇接口 Y
前面板音频接头 Y
串行端口接头连接器 1

图像

最大图形显示内存 1000 MB
支持的显示器数量 3

背板输出端口

DVI-D接口数量 1
PS/2连接埠数量 1
S/PDIF输出接口 Y
麦克风/音频输入插孔 Y
USB 3.0(第 1代3.1)Type-A 端口数量 6
HDMI端口数量 1
VGA(D-SUB)端口数量 1

扩展槽

PCI 插槽 2
PCI Express x16 插槽 1
PCI Express × 1插槽 2

联网

蓝牙 N

另外

主板晶片 Intel Z97
以太网连接器 Y
以太网路(RJ-45)连接接口数量 2
Intel Z97, LGA1150, 4 x DDR3 DIMM, PCI Express x16, 2 x PCI Express x1, 2 x PCI, PS/2, D-Sub, DVI-D, HDMI, 6 x USB 3.0, 2 x USB 2.0, 2 x RJ-45, 5 x audio jacks, ATX GIGABYTE 9 Series Motherboards
GIGABYTE 9 Series motherboards support the latest 4th & 5th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.

Extreme Multi-GPU Support
Flexible graphics capabilities supported for either 3-Way CrossFire™ or 2-Way SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

M.2 Onboard Connector
GIGABYTE 9 series motherboards come equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.

SATA Express Connector
SATA Express interface provides multiple PCI Express lanes and 2 SATA 3.0 6 Gb/s ports, exposed through the same connector, allowing use of both PCI Express and SATA storage devices. Exposed PCI Express lanes are providing a pure PCI Express connection to the storage device, without any additional layers of abstraction.

Intel® Gigabit LAN
Intel® Gigabit LAN networking, a popular choice with gamers that features several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

Killer Networking
NO LAG, JUST FRAG!
Select GIGABYTE 9 series motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions. The Killer™ E2200 features Advanced Stream Detect technology, which identifies and prioritizes all network traffic to ensure important applications that require high-speed connectivity are prioritized over less important traffic.

Realtek ALC1150 115dB SNR HD Audio
The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.
The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.

Built-in Rear Audio Amplifier
Specially designed for gamers, GIGABYTE 9 series Ultra Durable™ motherboards utilize a high-capacity amplifier which is able to drive 600Ω loads, giving gamers a fuller range of dynamic sound with crisper details and less distortion when using high quality professional headphones.

APP Center
GIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.

EasyTune™
- Smart Quick Boost provides users with different levels of CPU frequencies to choose to achieve desired system performance.
- Advanced CPU OC allows users to set CPU base clock, frequency, and voltages, and integrated graphics frequency.
- Advanced DDR OC allows users to set the memory clock.
- 3D Power allows users to change power phase, voltage, and frequency settings.

Cloud Station™
- GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control desktop PCs via wireless connection.
- HomeCloud
HomeCloud allows users to share the files between your smart phone/tablet device and computer or back up the files from the device to the computer.
- HotSpot
HotSpot turns your computer into a virtual wireless access point and allows you to share your connection with your other wireless devices.
- GIGABYTE Remote
GIGABYTE Remote allows users to remotely control the mouse / keyboard / Windows Media Player on your computer from your smart phone/tablet device.
- Remote OC
Remote OC allows users to remotely control their desktop PC with a powerful suite of software functions that Include overclocking and system tweaking, system monitoring plus the ability to also remotely power down/reset the PC when needed.
- Auto Green
Auto Green is an easy-to-use tool that provides users with simple options to enable system power savings via a Bluetooth-enabled smart phone/tablet devices. When the device is out of the range of the computer's Bluetooth receiver, the system will enter the specified power saving mode.

10K Durable Black™ Soild Caps
GIGABYTE 9 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for a guaranteed minimum of 10K hours. Not only do they provide ultra-low ESR no matter how high the CPU loading, they also come in customized jet black from Nippon Chemi-Con and Nichicon.

2x Copper PCB Design (2 oz Copper PCB)
GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

5x (15μ) Gold Plated CPU Socket Design
GIGABYTE 9 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.

GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE 9 series Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC’s most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

ESD Protection for USB and LAN
GIGABYTE 9 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

Power Failure Protection with Anti-Surge IC
GIGABYTE 9 series Ultra Durable™ motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

Humidity Protection with New Glass Fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE 9 series motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions.

All New Heat Sink Design
GIGABYTE 9 series motherboards feature new heat sink designs that offer uncompromisingly efficient cooling on key areas of the motherboard including the PWM area and chipset (PCH). GIGABYTE 9 Series motherboards offer cooling support of the crucial PWM area so even the most aggressive and extreme configurations will be kept well within optimal thermal parameters.

GIGABYTE OPT Fan Support
Many of today’s 3rd party water cooling systems require CPU fan power support for both the cooling fan and the water pump. GIGABYTE 9 Series motherboards feature OPT fan support, an additional CPU fan pin header that can be used to connect a water pump and configured for continuous full speed operation. The OPT Fan is also useful for high performance coolers employing two fans.

4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

HDMI™-The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

DVI Support
DVI (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection).
