内存参数
| 可支持内存时钟速度 |
1333, 1600, 1866 MHz |
| 内存插槽类型 |
SO-DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
8 GB |
扩展槽
| Mini PCI Express插槽 |
1 |
| PCI Express插槽版本 |
2.0 |
处理器
| 处理器加速频率 |
2.20 GHz |
| 处理器光刻 |
14 nm |
| 散热设计功耗 (TDP) |
6 W |
| 核心的处理器数量 |
4 |
| 内置处理器 |
Y |
| 处理器频率 |
1.10 GHz |
处理器的特殊功能
| 英特尔®快速存储技术 |
N |
| 执行禁止位 |
Y |
| 热监测技术 |
Y |
| 英特尔®可信执行技术 |
N |
| 英特尔®智能连接技术 |
N |
| 英特尔®中小企业通锐软件(SBA) |
N |
| 英特尔®稳定映像平台计划 (SIPP) |
N |
| 英特尔®快速同步视频技术 |
Y |
| 英特尔® 内线™ |
N |
| 英特尔®64 |
Y |
| 英特尔® 清晰视频技术 |
Y |
| 英特尔®智能响应技术 |
N |
| 可选用的嵌入式选项 |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
Y |
| 英特尔® 防盗技术 |
N |
| 英特尔®身份保护技术 |
Y |
| 英特尔®超线程技术 |
N |
| 英特尔®Turbo Boost技术 |
N |
| 英特尔®安全密钥 |
Y |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔® OS Guard 操作系统保护 |
N |
| 英特尔®无线显示(WiDi)技术 |
N |
| 英特尔®清晰视频高清技术 |
Y |
性能
| 可信平台模块（TPM）版本 |
2.0 |
| 可信任平台模组(全面生产管理) |
Y |
端口 & 界面
| 组合耳机/麦克风接口 |
Y |
| COM接口数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| HDMI端口数量 |
2 |
| DC-IN插口 |
Y |
联网
| 蓝牙版本 |
4.2 |
| 局域网控制器 |
Realtek RTL8111HS |
| 无线局域网连接 |
Y |
| 无线局域网类型 |
IEEE 802.11ac |
| 蓝牙 |
Y |
存储介质
| 兼容性内存条 |
MicroSD (TransFlash) |
| 集成读卡器 |
Y |
设计
| 线缆锁插槽 |
Y |
| 笔记本钢缆锁插槽类型 |
Kensington |
| 冷却方式 |
Passive |
另外
| InTru™3D技术 |
N |
| 英特尔® 高保真音频技术 |
Y |
| 图形适配器 |
HD Graphics 500 |
| 以太网连接器 |
Y |
| 英特尔®AES新指令 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |

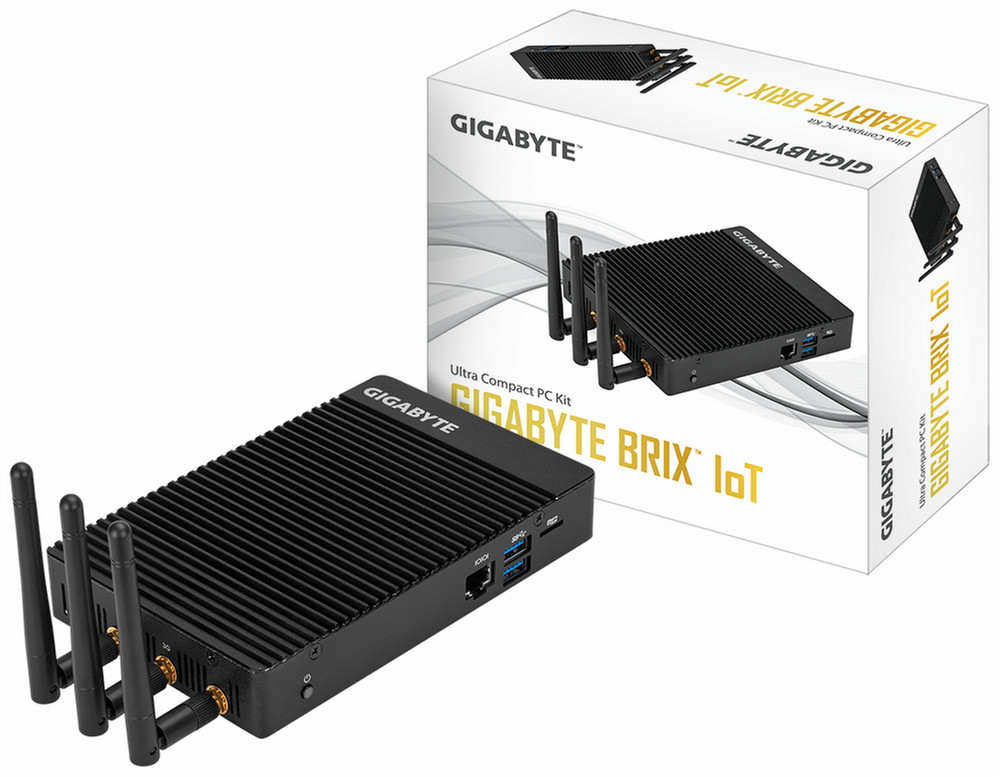

Intel Celeron N3450, 2.2GHz, Quad core, 2 x SO-DIMM DDR3L, Intel HD Graphics 500, Realtek ALC255, 1 x M.2 slot, 4 x USB 3.0, 2 x RJ45, 2 x HDMI, Windows 10 64-bit
The Perfect Fit for IoT Applications
Being an associate member of the Intel IoT Solutions Alliance, GIGABYTE is at the heart of the booming Internet of Things (IoT) computing market. We create reference designs for Intel’s new platforms, and develop them further into a large range of professional IoT products and customer-optimized solutions. With leading performance and security, robust build quality and the Input/output (I / O) flexibility, GIGABYTE BRIX™ IoT is made a perfect fit for various IoT applications.
Intel® Celeron Processor
The new generation of Intel® Celeron Processors leverage the 14nm process technology. The new processors improve upon power consumption along with enhancements in performance for graphics and computations. For the BRIX the new Celeron processors deliver a 30% increase in performance and at least 35% better 3D graphics performance gen-over-gen. The system-on-chip (SoC) design provides an even smaller footprint than its desktop counterparts, making GIGABYTE BRIX™ IoT the ideal solution for thin clients, POS solutions, and digital signage
Rich in Connectivity Options
GIGABYTE BRIX™ IoT ensures you won't be hindered by lack of connections. Having built-in 802.11ac and Bluetooth 4.2 gives users a higher capacity and broader coverage, allowing them to use their devices and accessories wherever they wish, with no compromise on the speed. Gigabit Ethernet can help increase performance between compatible devices on your wired LAN, especially when large file transfers are involved.
Dual Display
With two HDMI outputs, GIGABYTE BRIX™ IoT can power two displays simultaneously, making it a perfect choice as a high productivity device in IoT applications.
VESA Mount Support
Bundled with a VESA bracket, GIGABYTE BRIX™ IoT can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
SuperSpeed USB 3.0
Equipped with 4 x USB 3.0 ports, GIGABYTE BRIX™ IoT are flexible to adapt to your desired multimedia environment. The SuperSpeed USB 3.0 supports transfer speeds of up to 5 Gb/s and is backward compatible with USB 2.0 and 1.0 for the possibility to connect thousands of devices.
Compute Securely with TPM 2.0 Solution
These days security is on the forefront of everyone's mind. With cyber criminals around the world actively trying to steal your financial and personal information, you need to do everything you can to protect yourself.
The TPM is a discrete cryptographic processor attached to a daughter board which plugs into the motherboard. The TPM securely stores your cryptographic key which can be created with encryption software such as Windows BitLocker. Without this key, the contents of the user's PC will remain encrypted and safe from unauthorized access.
