设计
| 冷却方式 |
Active |
| 插槽数量 |
2 |
| 格式要素 |
ATX |
性能
| Full HD |
Y |
| 集成电视调谐器 |
N |
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.5 |
| NVIDIA® GameWorks VR 平台 |
Y |
处理器
| 处理器频率 |
1531 MHz |
| FireStream |
N |
| 处理器提高时钟速度 |
1746 MHz |
| 视频卡最大显示 |
4 |
| 图形处理器系列 |
NVIDIA |
能量控制
| 最低系统供电 |
400 W |
| 补充电源连接器 |
1x 8-pin |
端口 & 界面
| 接口类型 |
PCI Express x16 3.0 |
| HDMI端口数量 |
1 |
| DisplayPort 数量 |
3 |
| DVI-D接口数量 |
1 |
内存参数
| 内存时钟速度 |
8008 MHz |
| 独立显卡适配器內存 |
3 GB |
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
192 bit |
另外
| 双dvi（互应式数字视频） |
Y |
| 图形处理器 |

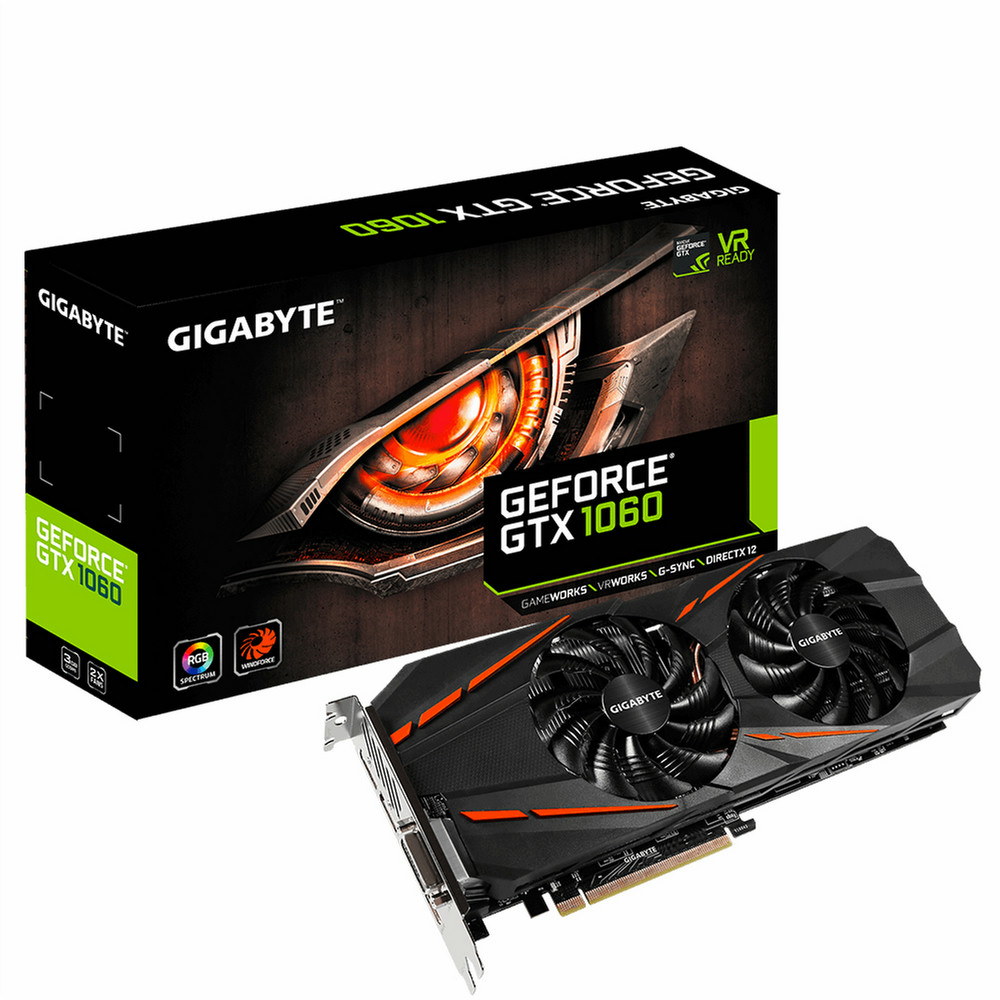

GeForce GTX 1060 |
1746/1531 MHz, 16 nm, 3 GB GDDR5, 192 bit, 8008 MHz, PCI-E 3.0 x 16, Dual-link DVI-D, HDMI 2.0b, 3x DisplayPort 1.4, 114x278x40 mm
<b>WINDFORCE 2X Cooling System</b>
The WINDFORCE 2X cooling system features two 90mm unique blade fans, 2 pure copper composite heat-pipes, alternate spinning fan design, and heat pipes direct touch technology, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
<b>WINDFORCE 2X Cooling System-Fans</b>
Alternate Spinning Fan Design
Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.
Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan with LED Indicators
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.
<b>WINDFORCE 2X Cooling System-Heat Pipes</b>
<b>Composite heat-pipes</b>
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
<b>Heat Pipe Direct Touch</b>
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.
<b>Outlook</b>
<b>16.8M Customizable Color Lighting</b>
With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through XTREME Engine utility.
<b>Stylish Metal Back Plate</b>
The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.
<b>Performance</b>
<b>One-click Super overclocking</b>
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
<b>Durability</b>
<b>Smart Power LED indicators</b>
Be alert when PCI-E voltage is unstable with the smart power LED indicator.
<b>Ultra Durable Materials</b>
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
<b>Built for OverClocking with 6+1 power phases</b>
Compared to reference design, the 6+1 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output. (*reference design 3+1)
<b>Intuitive Utility</b>
<b>Intuitive XTREME Engine Utility</b>
Adjust clock speeds, voltage, fan performance, RGB lighting effect, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
