处理器
| 最大数字分辨率 |
7680 x 4320 pixels |
| CUDA |
Y |
| 图形处理器系列 |
NVIDIA |
| 处理器频率 |
1506 MHz |
| 处理器提高时钟速度 |
1708 MHz |
| 视频卡最大显示 |
4 |
内存参数
| 内存时钟速度 |
8008 MHz |
| 内存带宽（最大） |
192 GB/s |
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
192 bit |
| 独立显卡适配器內存 |
3 GB |
能量控制
| 补充电源连接器 |
1x 6-pin |
| 最低系统供电 |
400 W |
性能
| NVIDIA® GameWorks VR 平台 |
Y |
| NVIDIA® G-SYNC 技术配置 |
Y |
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.5 |
端口 & 界面
| DVI-D接口数量 |
2 |
| 接口类型 |
PCI Express x16 3.0 |
| HDMI端口数量 |
1 |
| DisplayPort 数量 |
1 |
设计
| 格式要素 |
ATX |
| 冷却方式 |
Active |
| 插槽数量 |
2 |
另外
| 双dvi（互应式数字视频） |
Y |
| 图形处理器 |
GeForce GTX 1060 |

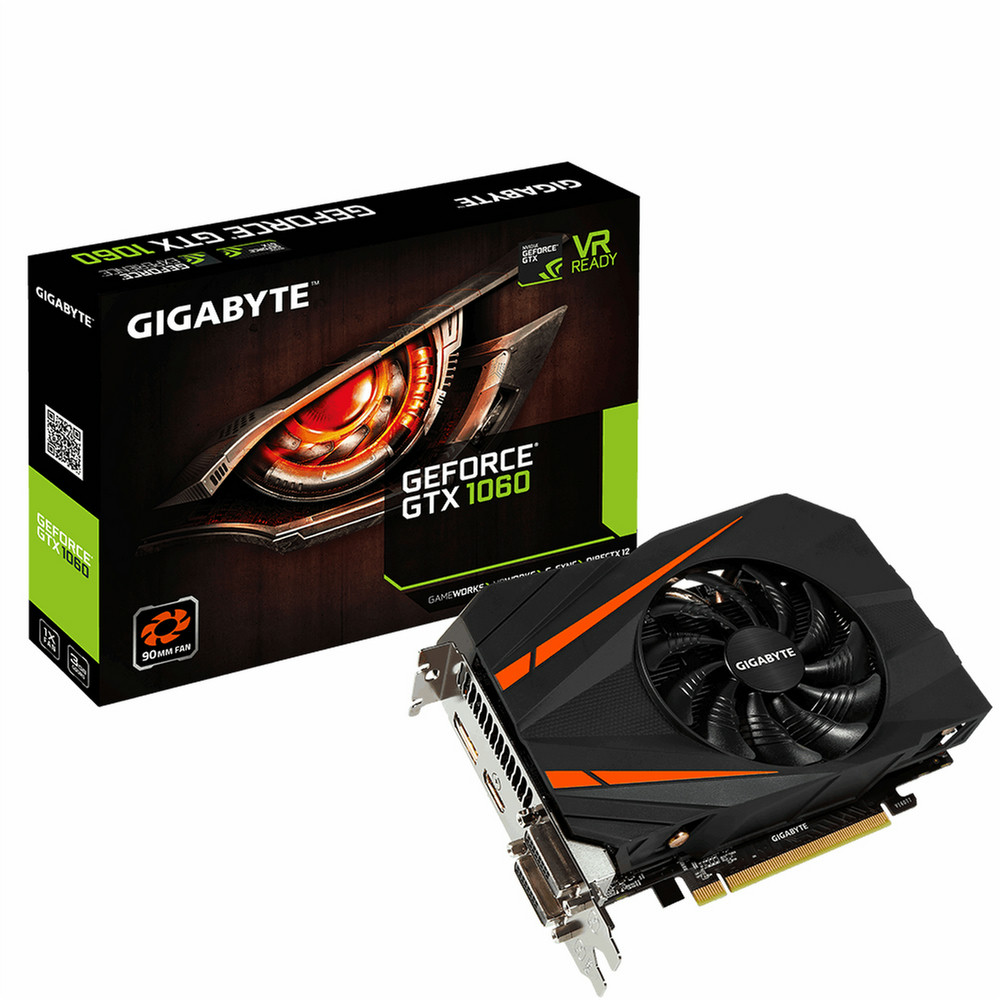

GeForce GTX 1060, 16 nm, 8008 MHz, 3 GB, GDDR5, 192 bit, PCI-E 3.0 x 16
- Powered by GeForce® GTX 1060
- Integrated with 3GB GDDR5 192bit memory
- 90mm cooler with 3D active fan
- One-click Super Overclocking
- 17cm Compact Card Size
<b>Custom-designed Cooling System</b>
Equipped with 2 pure copper heat-pipes and 90 mm unique-blade fan with 3D active functionality, and heat pipes direct touch technology, the cooler can dissipate heat effectively from the GPU while keeping the fan at lower speed and noise.
<b>Cooling System-Fan</b>
<b>Unique Blade Fan Design</b>
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
<b>3D Active Fan </b>
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
<b>Cooling System- Heat Pipes</b>
<b>Composite heat-pipes</b>
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
<b>Heat Pipe Direct Touch</b>
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.
<b>Compact Card Size</b>
Measuring merely 17cm in length, the card, perfectly compatible for building most of the PCs from ATX to mini-ITX.
<b>One-click Super overclocking</b>
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
<b>Ultra Durable Graphic Components</b>
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
